YLM – CNC181MS-AE – CNC Electric Tube Bender
Specifications
| Make | YLM |
|---|---|
| Model | CNC181MS-AE |
Description

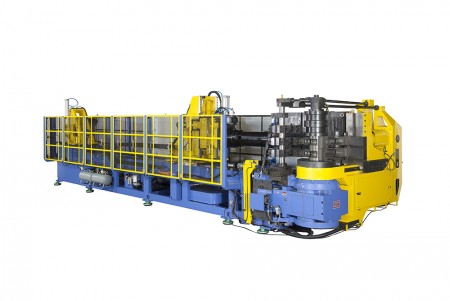

YLM – CNC Electric Tube Bender – CNC181MS-AE
The machine is equipped with a powerful functioning CNC controller. The controller employs a windows operation system in combination with the use of Ying Han self-developed CNC control software. Outstanding features include easy generation of bending parameters, 3D workpiece simulation function and single step operational simulation function, etc. These provide users with safe, easy and humanized control features.
Fully electric CNC pipe bender, All Electric Multi Stack CNC tube Bending machine
SPECIFICATION
Model CNC181MS-AE
- Specification 181
- Max. Tube O.D. Bending Capacity (mm) ? 180
- Max. Tube Wall Thickness (mm) 4
- Material MILD STEEL
- CLR 370
- Max. Bending Radius Difference (mm) 150
- Max. Bending Angle (°) 190
- Mandrel Working Distance (mm) 4500
- Manufacture Speed Tube Feeding Speed (mm/sec) 837
- Tube Rotation Speed (°/sec) 506
- Tube Bending Speed (°/sec) 19.5
- Repeatability Tube Feeding Precision (mm) ± 0.1
- Tube Rotation Precision (°) ± 0.1
- Tube Bending Precision (°) ± 0.1
- Overall Weight (kg) 20850
- Operating Height (mm) 1369
- Machine Length (mm) 9528
- Machine Width (mm) 3147
- Machine Height (mm) 2364
