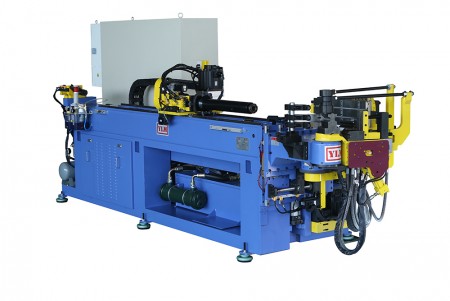

YLM – CNC Hybrid Tube Bending Machine – CNC-38MS-5A

View Brochure

Specifications
Description

Specifications

Make	YLM
Model	CNC-38MS-5A

Description

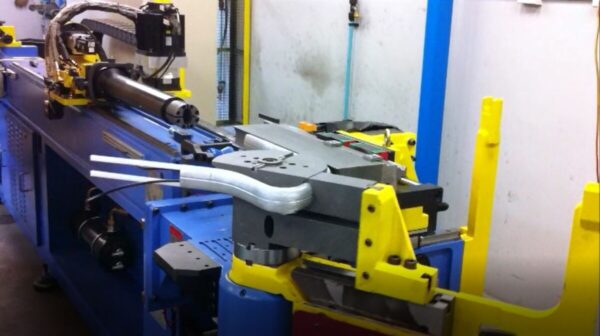

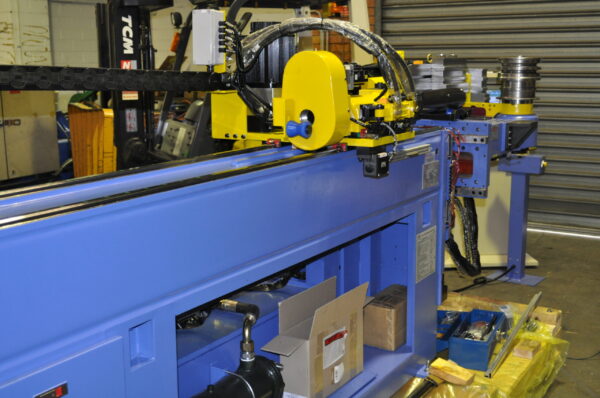

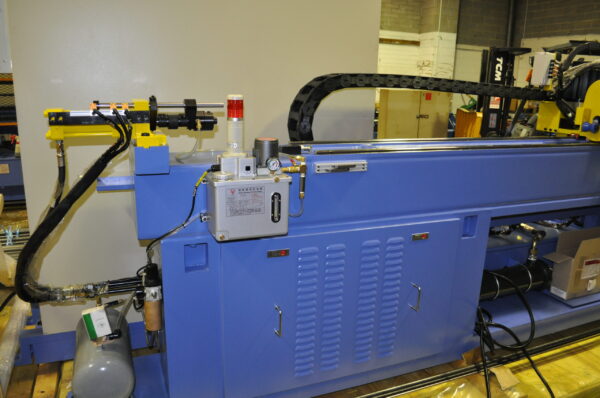

YLM – CNC Hybrid Tube Bending Machine – CNC-38MS-5A

YLM produces a line of CNC hydraulic tube benders designed for the companies looking for an economical way to enter into CNC benders.
The machines are available in capacity sizes from 1-1/2” to 5”. Utilising the proven software technology these heavy duty benders will meet the needs of furniture manufacturers, automotive production, ship builders, or job shop applications.

Features of Hybrid Tube Bender

The series of machine employs hydraulic valves and integrated circuits ti control bending motion individually, which will extend the service life of he hydraulic parts.
Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.

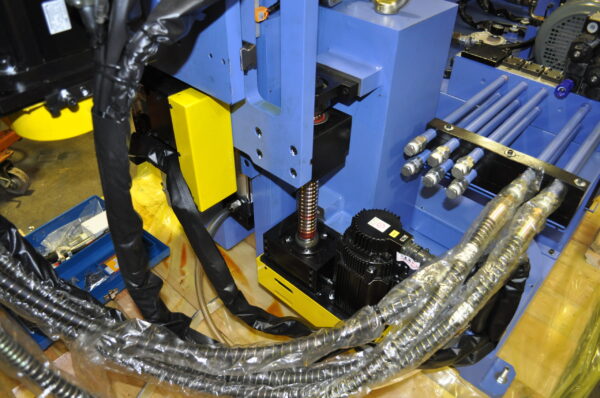

Servo drive provides high accuracy in bending positioning, that ensures high quality bending.

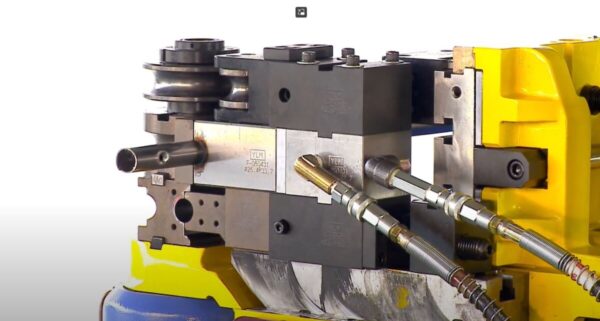

Draw+Rollers-Bending

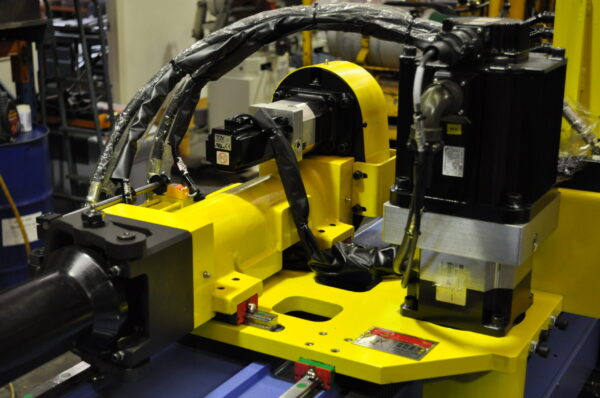

Multi Axis Servo-Motor controlled
3D Simulation of Bending Process and application

Standard machine design features on CNC benders include:

Air conditioned electrical enclosure to maintain temperature and prolong system components
Electrical power filtering to stabilise incoming power supplies for an efficient consistent operation
Control electrical cabinet isolation to minimise vibration transfer to electronics
Oil filtering system with condition indicator to protect oil supply
Radiator type oil cooler standard on most models, available on others to maintain oil temperature
Vibration control machine mounting pads to reduce machine movement during operation
Spacious well labeled / layout of electrical system for ease of maintenance and efficient operation
Remote control console for placement in operational location based on application to reduce operator interface time to increase production
Foot pedal cycle start operation for quick safe loading increasing production
Safety mat and safety plates with multiple emergency stop placement for operational safety
Integrated gearbox reducer with multi layer drive chain assembly for smooth controlled operational start / stop movement of bend arm extending the chain life many years beyond traditional hydraulic benders.
Low profile bend head design uniquely offset from center of machine frame providing clearance for complicated parts that can not be obtained on other brands of equipment.
Full capacity feed through collect for working with long material that requires additional length beyond the front collect stop system reducing the need for extended models in most applications.
Low decibel level production noise to reduce operator fatigue and general improvement of shop conditions
Low working heights for ease of operation increasing production and improved safety of material handling
Multiple axis operation reducing cycle time and interference for optimum production

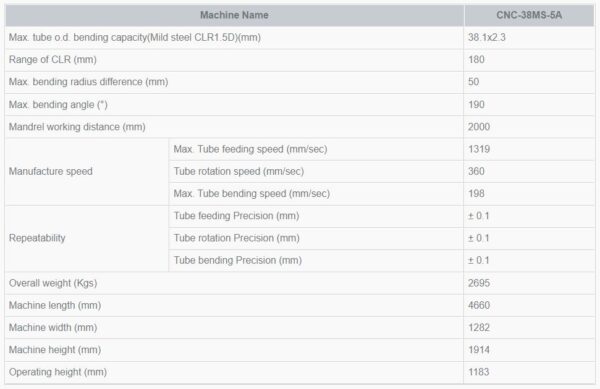

SPECIFICATION
