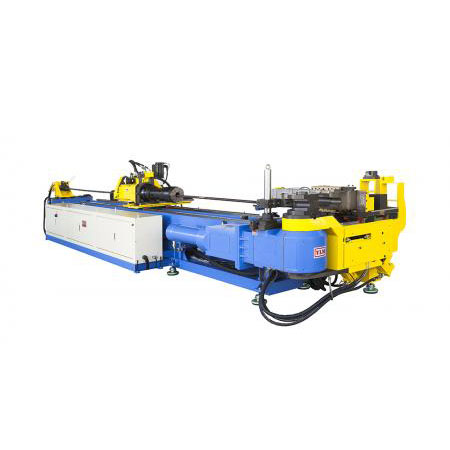

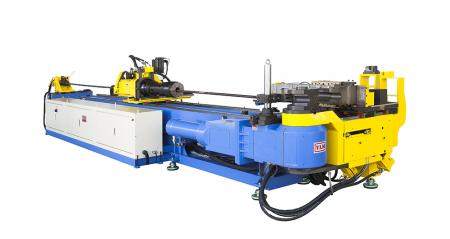

YLM – CNC Hybrid Tube Bending Machine – CNC-160S2-6A

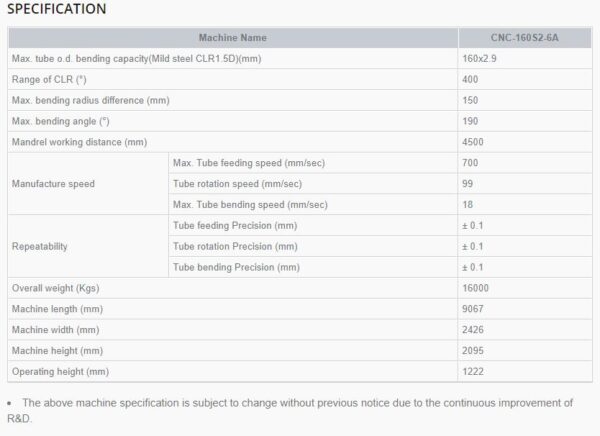

Specifications

Description

The YLM CNC Hybrid Tube Bending Machine CNC-160S2-6A is a cutting-edge solution designed to take your tube and pipe bending operations to the next level:

Features:

1. CNC Control System:
   • Advanced Programming: The CNC-160S2-6A comes equipped with a sophisticated CNC control system that allows for precise programming and automation of bending processes. This ensures high accuracy and repeatability for complex bending tasks.
2. Hybrid Drive Technology:
   • Efficiency and Precision: Utilizing hybrid drive technology combines the benefits of both electric and hydraulic systems. This provides the efficiency and precision of electric drives with the power and flexibility of hydraulic systems, optimizing performance and reducing energy consumption.
3. Multi-Axis Capabilities:
   • Complex Bends: The machine features multiple axes (usually including the bending axis, rotation axis, and feed axis), enabling it to produce intricate and complex bends with high accuracy and minimal operator intervention.
4. High-Speed Bending:
   • Increased Throughput: Designed for high-speed operation, the CNC-160S2-6A can complete bends quickly, improving production rates and efficiency, which is ideal for both small and large production runs.
5. Automatic Tool Adjustment:

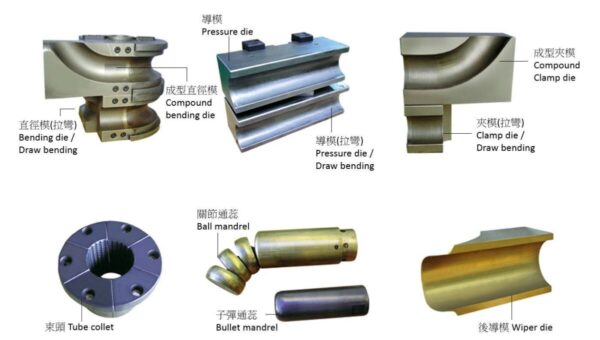

   • Flexibility: The machine includes an automatic tool adjustment system that allows for quick and precise changes between different bending dies, reducing setup time and increasing versatility.
6. Large Capacity:
   • Versatility: With a generous bending capacity, the CNC-160S2-6A can handle a wide range of tube sizes and materials, making it suitable for diverse applications and projects.
7. Touchscreen Interface:
   • User-Friendly Operation: The intuitive touchscreen interface simplifies machine operation and programming, allowing operators to easily input data, monitor progress, and make adjustments.
8. Precision Calibration:
   • Accuracy: Equipped with advanced calibration systems, the machine ensures that each bend is executed with high precision, reducing errors and improving the quality of the finished products.
9. Integrated Safety Features:
   • Safe Operation: The CNC-160S2-6A includes built-in safety features, such as automatic stop functions and safety guards, to protect operators and ensure safe working conditions.

Benefits:

1. High Precision and Consistency:
   • The advanced CNC control and precision calibration result in accurate and consistent bends, which is essential for producing high-quality components with tight tolerances.
2. Increased Production Efficiency:
   • High-speed bending, automatic tool adjustments, and multi-axis capabilities significantly reduce cycle times and setup times, leading to increased throughput and overall production efficiency.
3. Energy Efficiency:
   • The hybrid drive system optimizes energy use, which can lead to cost savings on power consumption and contribute to a more eco-friendly operation.
4. Versatility and Flexibility:
   • The ability to handle various tube sizes and materials, along with the automatic tool adjustment, allows for a wide range of applications, from simple to complex bending tasks.
5. User-Friendly Operation:
   • The touchscreen interface and intuitive programming reduce the learning curve for operators, allowing them to quickly become proficient and make adjustments with ease.
6. Reduced Waste:
   • Precision in bending and efficient material handling contribute to minimal material waste, which can lead to cost savings and a more sustainable operation.
7. Enhanced Safety:
   • Integrated safety features ensure a safer working environment, reducing the risk of accidents and protecting operators, which is crucial for maintaining a safe and productive workplace.
8. Long-Term Reliability:
   • Built with high-quality components and hybrid technology, the CNC-160S2-6A offers long-term reliability and durability, reducing the need for frequent maintenance and ensuring consistent performance.

In summary, the YLM CNC Hybrid Tube Bending Machine CNC-160S2-6A is a top-of-the-line solution that combines precision, efficiency, and versatility. Its advanced features and benefits make it an excellent choice for businesses looking to enhance their tube and pipe bending capabilities, improve production efficiency, and achieve high-quality results.
