OSCAM – Hoop Spiral Machine Model 86 2R [made in Italy]

Specifications

Description

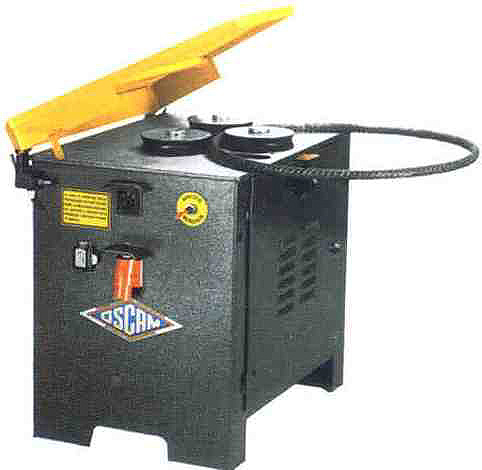

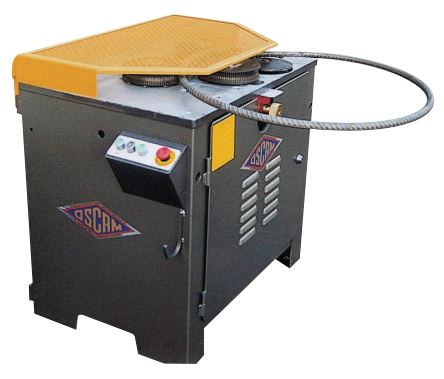

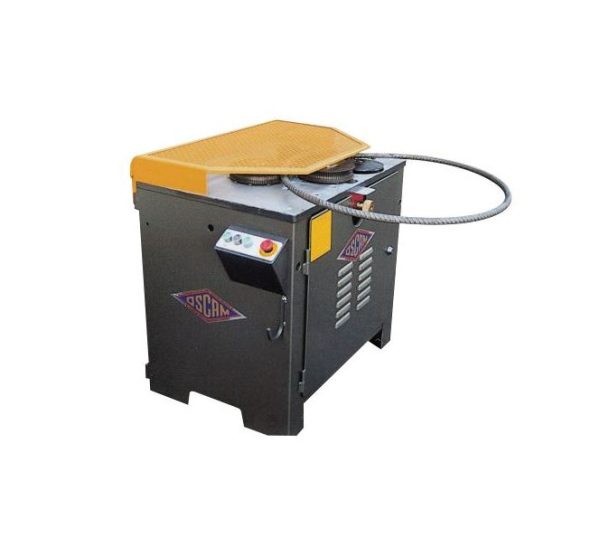

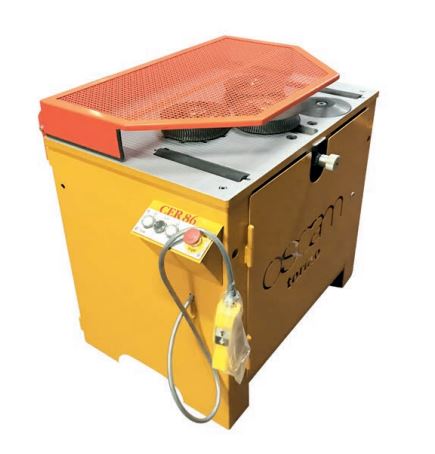

OSCAM – Hoop Spiral Machine Model 86 2R [made in Italy]

To create hoops and spirals with rods from 6 mm to 32 mm in diameter, with double speed

• Minimum diameter of hoops and spirals: approx. 300 mm with bars ø 12 mm
• Maximum diameter no limit
• Feeding speed 30 m/minute – 20 m/minute selected by the appropriate switch
• Nr. 2 motors 2,6 kW
• Dimensions 80 x 90 x 95 (h) cm
• Weight about 400 kg

Capacity of the machine:

Minimum diameter of arch, hoops and spirals:

• From 250 mm with rod diameter up to Ø 16 mm
• From 300 mm with rod diameter from Ø 18 up to Ø 32 mm

Oscam was founded in 1938 and, first in the world, created and patented automatic iron bending machines.

Today, Oscam, with its vast range and decades of experience, is able to cover every type of requirement in the processing of reinforced concrete rods, from the smallest machines to giant systems.

Oscam is universally known for its high quality standards, the exceptional robustness, the durability of its products and the high productivity of its machines. All this, combined with very low management and maintenance costs, is the reason why it has been chosen by the most demanding pre-shapers and the largest international contractors, for whom total reliability is essential.
