MACKMA BTW Range – Briquetting Machines for Fine Powders or Wood Chips
Specifications
| Make | MACKMA |
|---|---|
| Model | BTW50 |
Description
MACKMA BTW Range – Briquetting Machines for Fine Powders or Wood Chips BTW Line
For fine powders or wood chips from the BTW Line by Mackma, designed for compaction at 1000 kg/cm².Cutting-edge solutions to optimise the management of metallic waste in industrial processes.

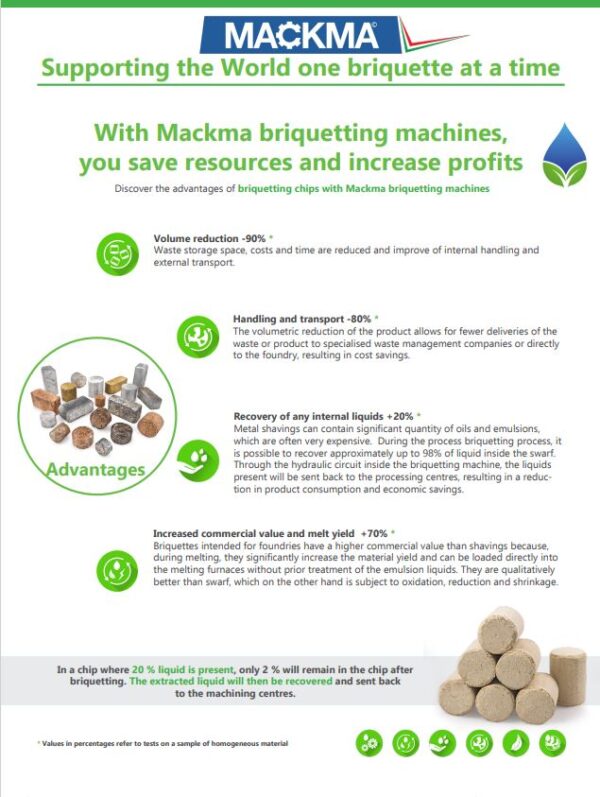

Advantages of the BTW Line Briquetting Machines
- Operational Efficiency – Our BTW Line briquetting machines efficiently compress powders or wood chips, reducing the volume by 70% and improving operational efficiency.
- Build Quality – Made with high-quality materials, the BTW Line Briquetting Machines ensure durability and reliability over time, supporting continuous industrial operations.
- Ease of Use – The machines are designed to be intuitive and easy to use, reducing staff training time and increasing productivity.

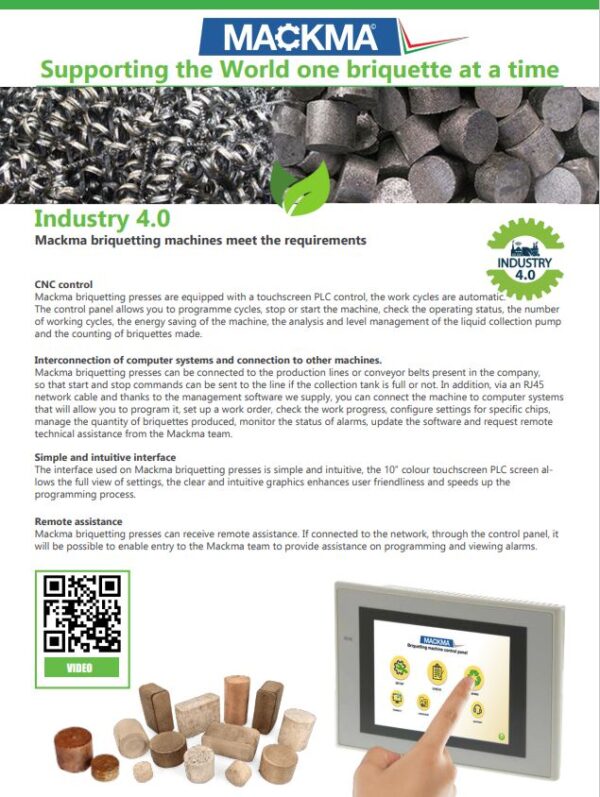

- All-Inclusive Technology – The BTW Line Briquetting Machines come with all-inclusive technology, including advanced control and automation systems to maximize efficiency.

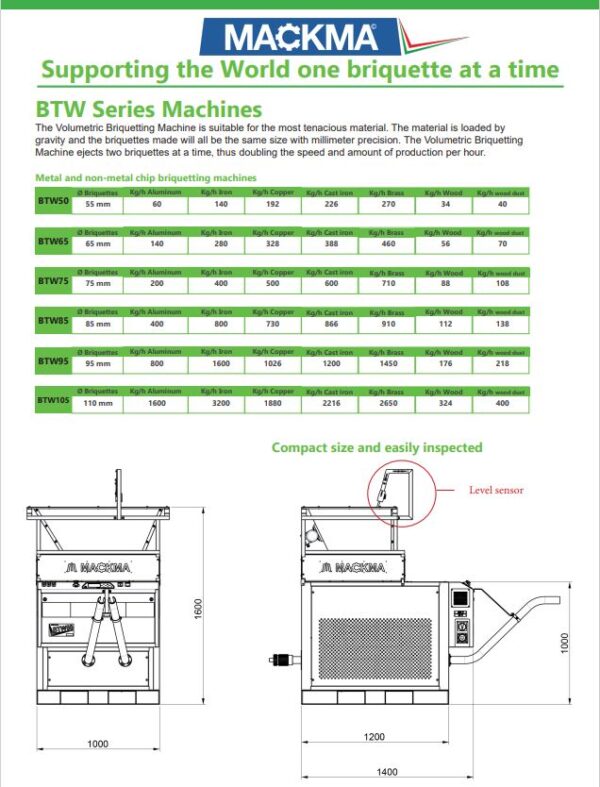

A Compact Machine – Technical Design of the Wood Powder Briquetting Machine

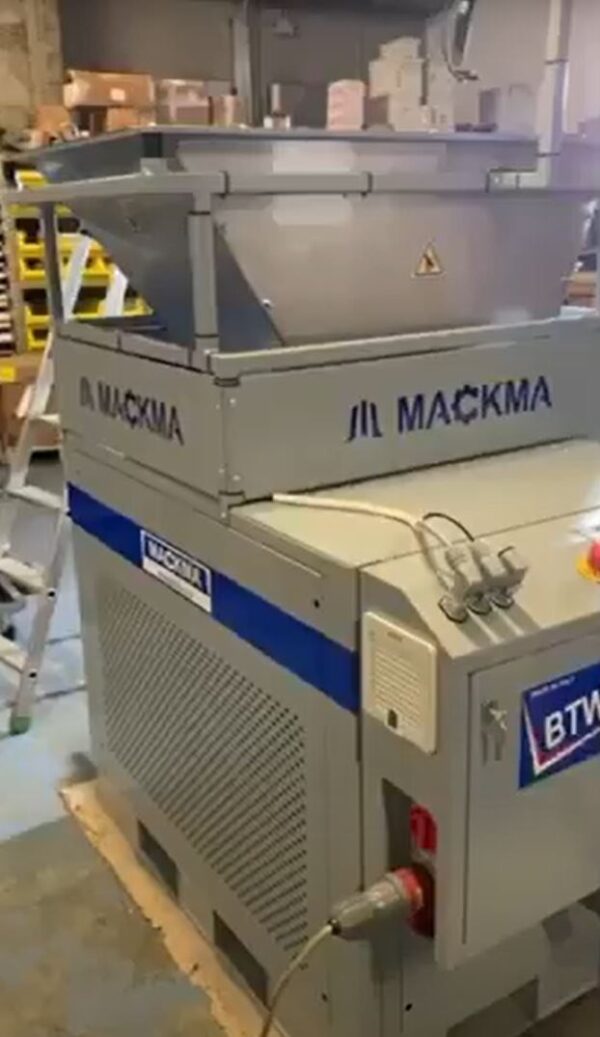

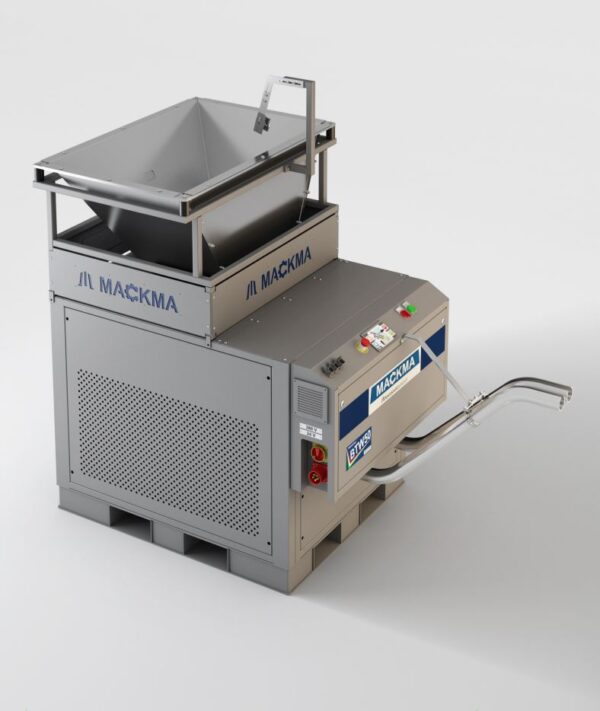

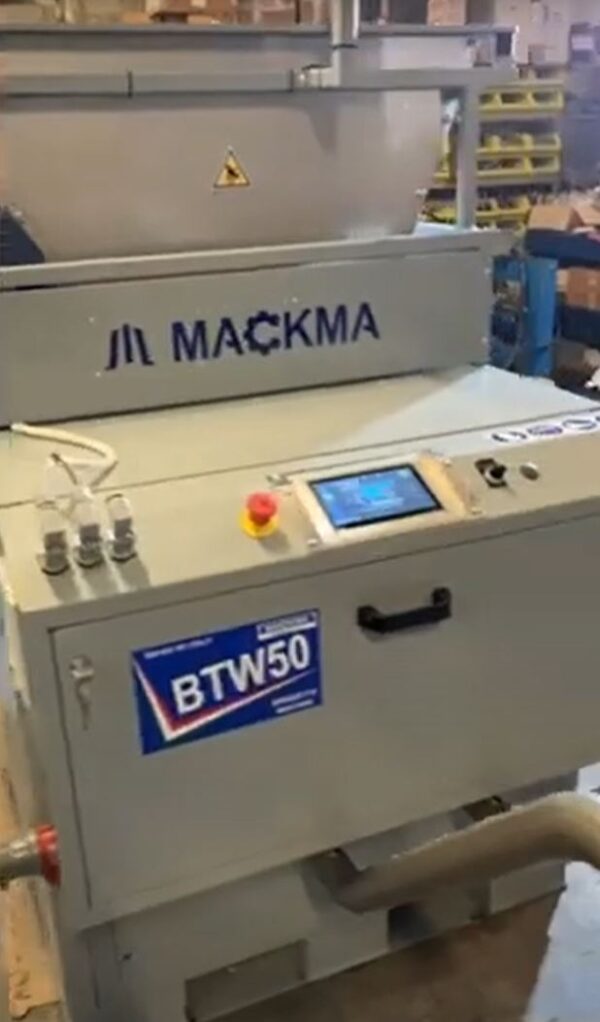

- The Mackma BTW50 Briquetting Machine is the most compact in its category, equipped with all possible technology in just 80×120 cm.
- The height can be adjusted from the standard 160 cm down to 100 cm or up, according to the customer’s needs.
- The machine compresses chips, reducing the volume by up to 70% with a power of 1000 kg per cm².

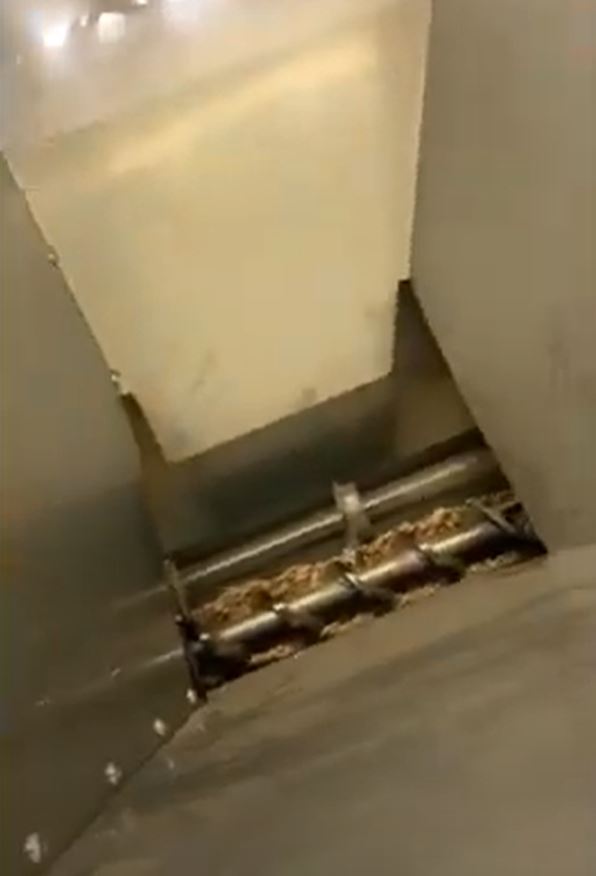

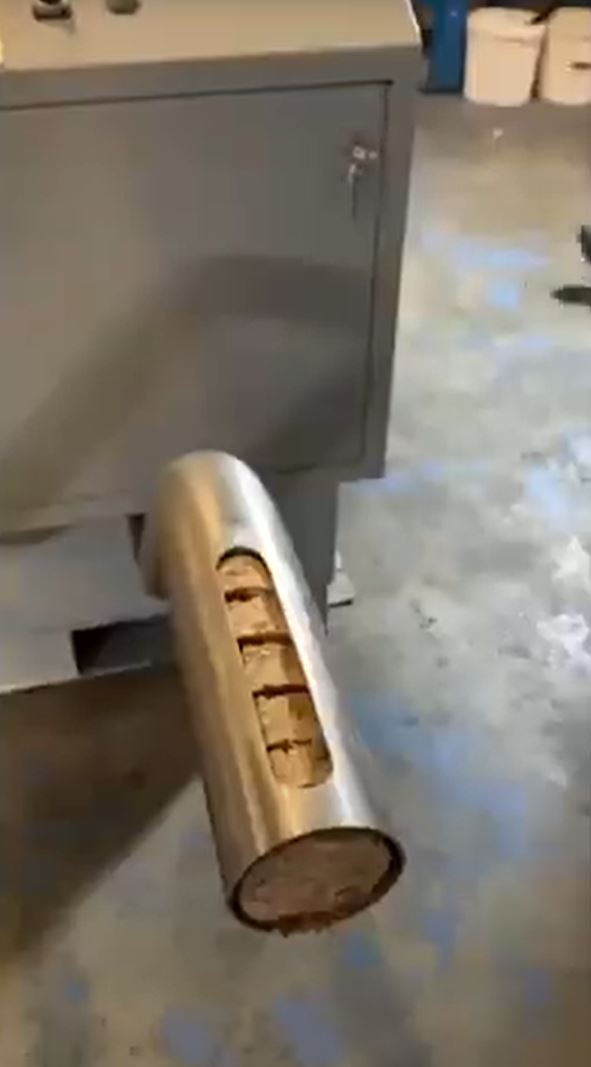

- The volumetric briquetting machine is suitable for the toughest materials. The material is gravity-fed, and the briquettes produced have uniform size with millimetric precision.

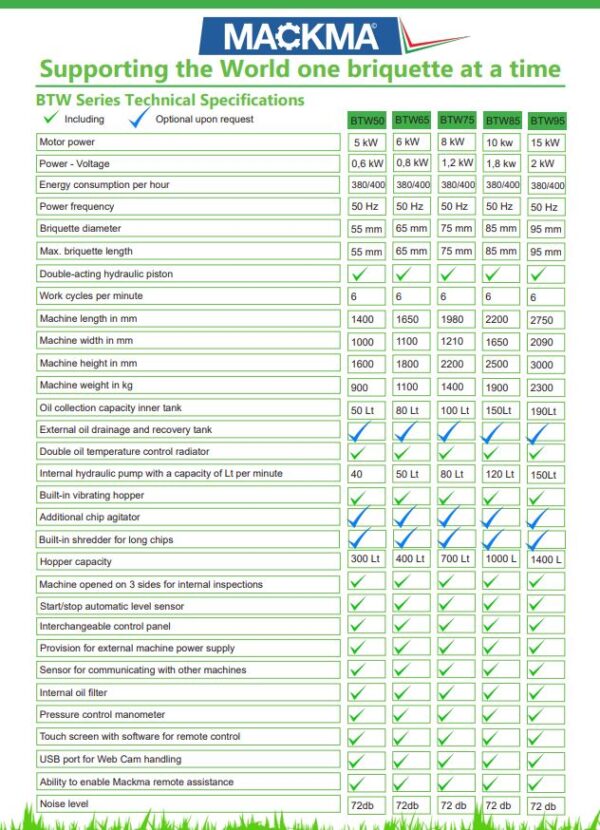

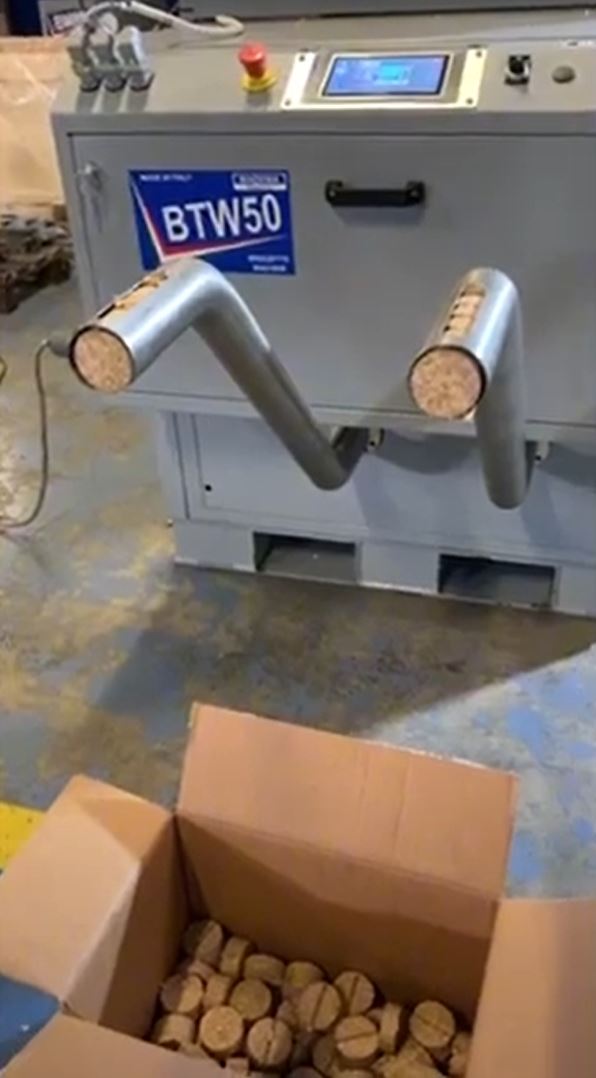

BTW50 – Ø BRIQUETTE 55 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 20-40 Kg/h Wood Powder
- 30-50 Kg/h Agave
- 170-270 Kg/h Bronze
BTW60 – Ø BRIQUETTE 60 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 35-65 Kg/h Wood Powder
- 40-70 Kg/h Agave
- 160-350 Kg/h Bronze
BTW65 – Ø BRIQUETTE 65 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 50-75 Kg/hWood Powder
- 55-80 Kg/h Agave
- 250-450 Kg/h Bronze
BTW75 – Ø BRIQUETTE 75 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 60-100 Kg/h Wood Powder
- 70-110 Kg/h Agave
- 400-700 Kg/h Bronze
BTW85 – Ø BRIQUETTE 85 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 80-140 Kg/h Wood Powder
- 90-145 Kg/h Agave
- 600-910 Kg/h Bronze
BTW95 – Ø BRIQUETTE 95 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 120-220 Kg/h Wood Powder
- 120-230 Kg/h Agave
- 750-1400 Kg/h Bronze
BTW105 – Ø BRIQUETTE 105 mm – Pressure at 1000 kg per cm², 3 to 5 briquettes per minute
- 200-350 Kg/h Wood Powder
- 210/400 Kg/h Agave
- 1000-2600 Kg/h Bronze
All models in the BTW Series Machines are available from Delahenty Machinery.
