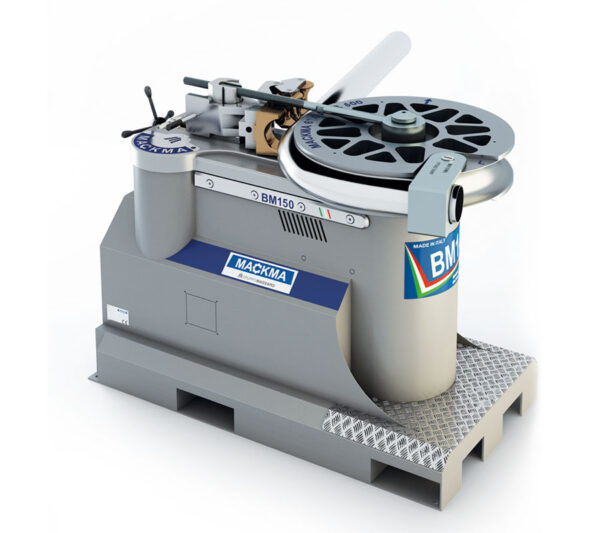

MACKMA – BM150 – Non Mandrel Tube & Pipe Bender
Specifications
| Make | MACKMA |
|---|---|
| Model | BM150 |
Description
The MACKMA BM150 Non-Mandrel Tube & Pipe Bender is designed to deliver exceptional performance and versatility across a range of industries. Whether you’re working in industrial technical articles, furniture, automotive, motorcycle and boating, sport and wellness items, or piping, the BM150 provides the reliability and precision you need for high-quality bending operations.
Features:
- Large Bending Capacity:
- Pipe Max Outer Diameter: The BM150 can handle pipes with an outer diameter of up to 168 mm, making it suitable for a wide range of pipe sizes and applications.
- High Torque Performance:
- Max Torque: With a maximum torque of 81,000 N/m, the BM150 delivers powerful bending capabilities, allowing for precise and effortless bends in various materials.
- Versatile Material Capability:
- Material Specifications:
- FE – 42 daN/mq: Capable of bending pipes up to 141.3 x 9.5 mm.
- FE – 35 daN/mq: Handles pipes up to 168.3 x 7 mm.
- AISI 304/316 – 65 daN/mq: Bends up to 141.3 x 6.5 mm.
- Adaptability: The machine’s versatile capabilities make it suitable for different materials, including standard steel and stainless steel.
- Material Specifications:
- Maximum Bending Radius and Angle:
- Maximum Radius: Achieve bends with a radius of up to 850 mm.
- Max Curvature Angle: Capable of bending up to 180°, providing flexibility for various bending requirements.
- Dual Bending Direction:
- Bending Direction: The BM150 supports both rightward and leftward bending, enhancing its versatility and adaptability to different projects.
- Robust Build and Dimensions:
- Head Dimensions: Height of 300 mm and a projection of 360 mm.
- Dimensions: With overall dimensions of 1900 x 1200 x 1000 mm, the BM150 is designed to fit into a variety of workshop spaces.
- Powerful Motor and Efficient Operation:
- Max Installed Power: Equipped with an 11 KW motor, ensuring powerful and efficient operation.
- Electric Tension: Operates on a standard 380 V AC power supply.
- Durable Construction:
- Weight: Weighing 2600 kg, the BM150 is built to be robust and durable, capable of handling demanding bending tasks with ease.
- Operating Temperature Range:
- Temperature Range: Designed to operate efficiently within a temperature range of 0 – 50°C, ensuring reliability in various working environments.
Benefits:
- Exceptional Bending Precision:
- The BM150’s high torque and advanced design ensure precise and accurate bending, leading to high-quality results and reducing the need for rework.
- Versatility Across Industries:
- Its ability to handle various pipe sizes and materials makes it suitable for a broad range of sectors, including industrial technical articles, furniture, automotive, motorcycle and boating, sport and wellness items, and piping.
- Enhanced Flexibility:
- The dual bending direction and maximum curvature angle provide the flexibility needed for complex and custom bending applications, meeting diverse project requirements.
- Robust and Reliable Performance:
- Built with a sturdy construction and powerful motor, the BM150 is designed to withstand heavy use and deliver consistent performance, ensuring long-term reliability and durability.
- Efficient Operation:
- The powerful 11 KW motor and efficient design contribute to faster bending processes, improving productivity and operational efficiency.
- Space-Efficient Design:
- With compact dimensions and a robust build, the BM150 fits well in various workshop environments, optimizing space usage while delivering high performance.
- Adaptability to Different Materials:
- The machine’s capability to handle different materials, including steel and stainless steel, makes it a versatile tool for various bending needs.
The MACKMA BM150 Non-Mandrel Tube & Pipe Bender is engineered to provide the precision, power, and versatility required for a wide range of bending applications. Whether you’re working in industrial settings or specialised sectors, the BM150 delivers exceptional performance and reliability.
