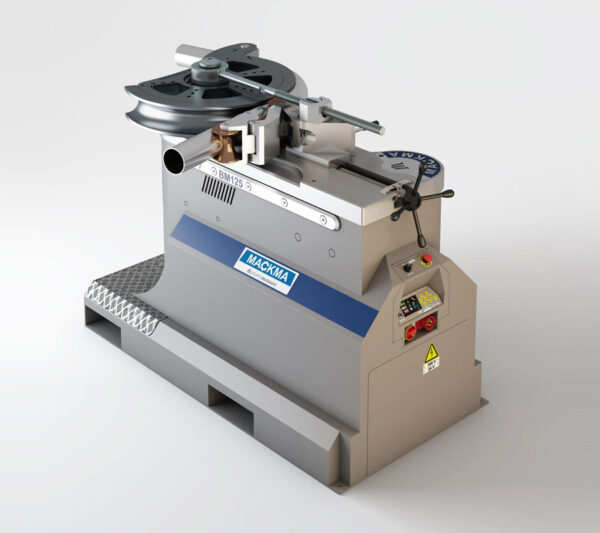

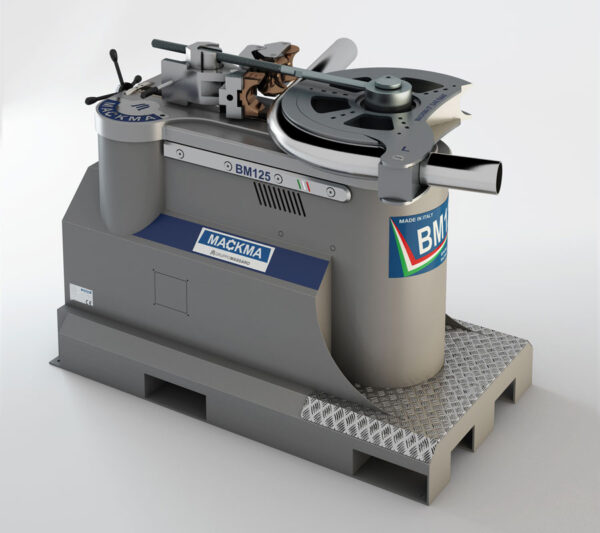

MACKMA – BM125 – Non Mandrel Tube & Pipe Bender

Specifications

Description

The BM125 Bending Machine is the ONLY non-mandrel pipe bending machine capable of bending tubes and pipes to the left or right. This innovative design, patented by MACKMA, allows for versatile bending of pipes up to 114.3 mm in diameter and 8.56 mm in wall thickness:

• Reversible Die Holder: The BM125 can bend tubes both leftward and rightward using a reversible die holder.
• Maximum Performance: With a maximum centerline radius of 700 mm, it delivers exceptional performance even in demanding markets.
• Inverter-Controlled Rotation: The bend rotation speed (max 0.98 RPM) adjusts according to tube diameter and thickness.
• Modular Design: The bending shaft assembly accommodates most competitors’ tooling, reducing long-term costs.
• Energy-Efficient: The inverter-controlled motor minimizes energy consumption.
• Italian Quality: MACKMA uses 100% high-quality Italian components for long-term reliability.
• Warranty: Backed by a standard 2-year warranty.

Main Technical Data:

• Pipe Max Outer Diameter: 141 mm
• Max Torque: 37,000 N/m
• Capability with FE – 42 kg/mm²: 114.3×8.5 mm
• Capability with FE – 35 kg/mm²: 141.3×6.5 mm
• Capability with AISI 304/316 – 65 kg/mm²: 114.3×5 mm
• Maximum Radius: 700 mm
• Max Curvature Angle: 180°
• Bending Direction: Rightward and Leftward
• Electric Tension: 380 V AC
• Max Installed Power: 5.5 KW
• Weight: 1410 Kg
• Dimensions (WxHxL): 1700x1150x920 mm
• Operating Temperature: 0 – 50°C

Suitable for the following sectors:

• Industrial technical articles
• Furniture
• Automotive
• Motorcycle and boating
• Sport and wellness items
• Piping
