JIH-NC150R – Automatic Drilling Machine

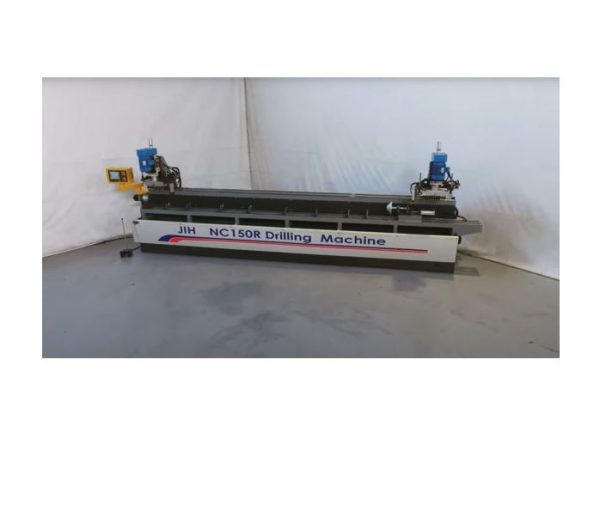

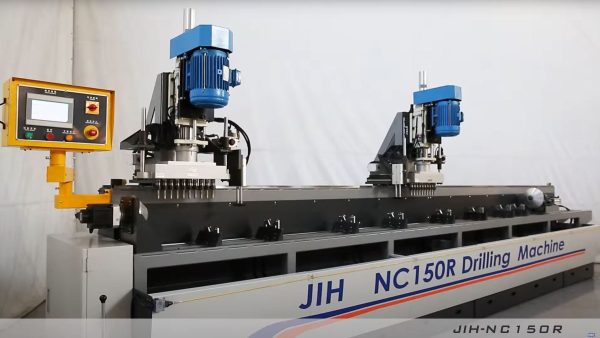

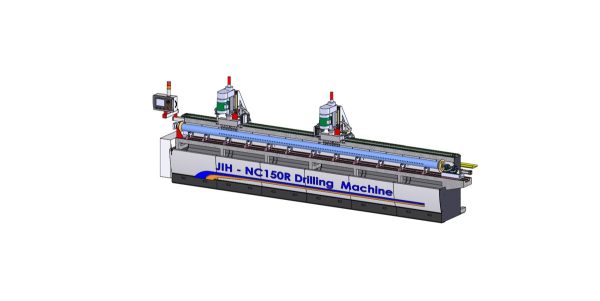

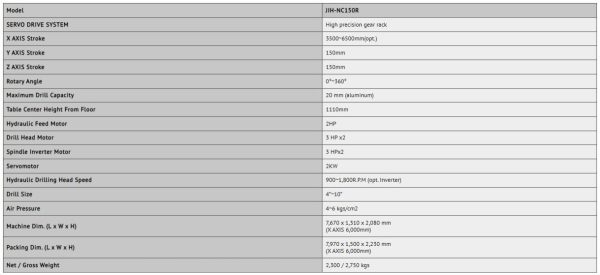

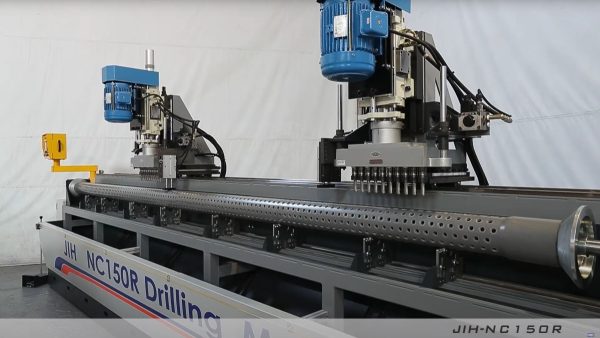

Specifications
| Make | JIH |
|---|---|
| Model | NC150R |
Description

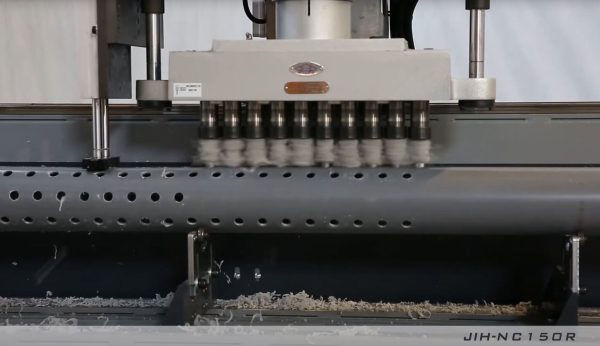

The JIH-NC150R Automatic Drilling Machine is engineered to deliver exceptional performance and accuracy for a wide range of drilling applications. With advanced servo drive systems, robust motor capabilities, and versatile operational features, the JIH-NC150R is an ideal choice for high-demand industrial environments.
Features:

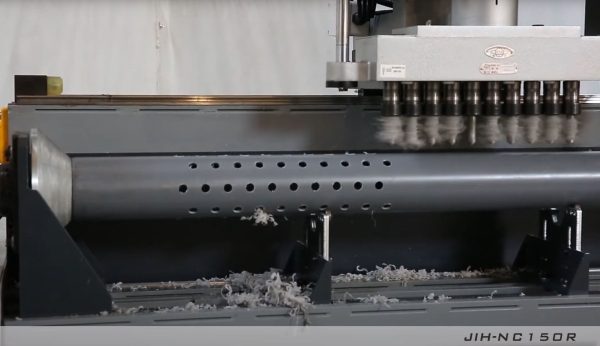

- High Precision Gear Rack Servo Drive System:
- Accurate Movement: The servo drive system utilizes a high-precision gear rack to ensure smooth and exact movement along the X, Y, and Z axes. This precision enhances drilling accuracy and consistency, crucial for high-quality manufacturing.
- Versatile Stroke Lengths:
- Customizable Operation: The X-axis stroke ranges from 3,500 to 6,500 mm (optional), accommodating a variety of workpiece sizes and configurations. The Y and Z-axis strokes of 150 mm each provide additional flexibility in drilling operations.
- Rotary Angle Flexibility:
- Comprehensive Drilling Capability: The rotary angle of 0° to 360° allows for full rotation and drilling at various angles, making it suitable for complex and multi-faceted drilling tasks.

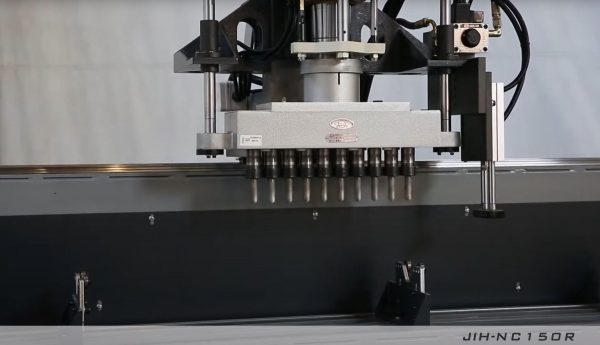

- Maximum Drill Capacity of 20 mm (Aluminum):
- Powerful Drilling: With a maximum drill capacity of 20 mm for aluminum materials, the JIH-NC150R handles a wide range of drilling needs, from standard to more demanding applications.

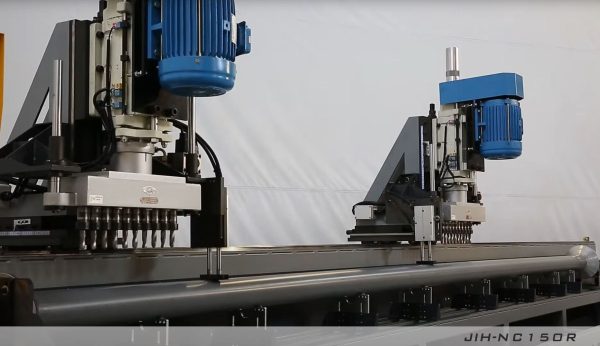

- Hydraulic Feed Motor and Drill Head Motors:
- Robust Performance: Equipped with a 2HP hydraulic feed motor and dual 3 HP drill head motors, the machine delivers powerful and efficient drilling performance. The spindle inverter motors (3 HP each) provide additional power and control.

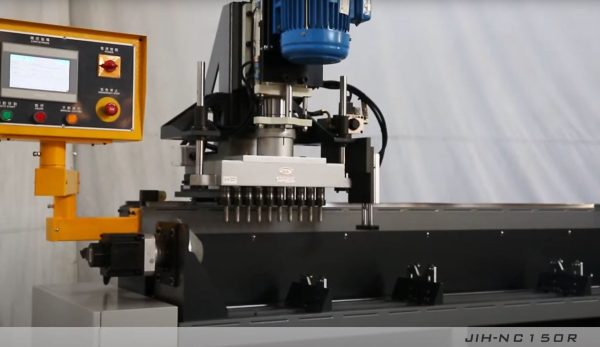

- Servomotor and Adjustable Drilling Speed:
- Precise Control: The 2KW servomotor ensures precise control over drilling operations. The hydraulic drilling head speed is adjustable between 900 and 1,800 RPM (optional inverter), allowing for customization based on material and drilling requirements.
- Adjustable Table Center Height:
- Ergonomic Design: The table center height from the floor is set at 1,110 mm, providing an ergonomic working height that enhances operator comfort and accessibility.
- Drill Size Range:
- Flexible Drilling Options: Capable of accommodating drill sizes from 4” to 10”, the JIH-NC150R offers versatility in the types of holes and workpieces it can handle.
- Air Pressure Requirement:
- Efficient Operation: Operates with an air pressure range of 4 to 6 kgs/cm², ensuring efficient and reliable operation across different settings.

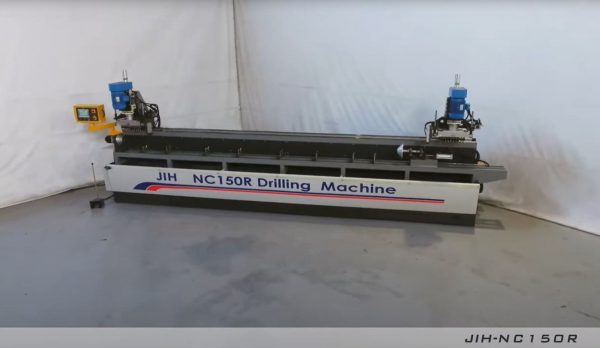

- Durable Construction:
- Heavy-Duty Build: With dimensions of 7,670 x 1,310 x 2,080 mm and a net weight of 2,300 kg, the machine’s robust construction is designed to withstand demanding industrial environments and provide long-term reliability.
Benefits:
- Exceptional Precision and Accuracy:
- The high precision gear rack and servo drive system ensure exact positioning and consistent drilling results, leading to high-quality finished products and reducing the need for rework.
- Versatile and Customizable Operation:
- With adjustable stroke lengths, rotary angles, and drill speeds, the JIH-NC150R is highly adaptable to various drilling tasks and workpiece sizes, providing flexibility for diverse manufacturing needs.
- Increased Productivity:
- The powerful motors and adjustable drilling speeds enhance operational efficiency, allowing for faster production times and improved throughput.
- Enhanced Ergonomics and Accessibility:
- The adjustable table center height improves operator comfort and accessibility, reducing strain and increasing efficiency during operations.
- Robust and Reliable Performance:
- Built with durable materials and heavy-duty components, the JIH-NC150R is designed to deliver reliable performance in high-demand environments, minimizing downtime and maintenance needs.
- Customisable Drilling Options:
- The machine’s ability to handle various drill sizes and adjustable features provides versatility in drilling operations, making it suitable for a wide range of applications.
- Efficient Air Usage:
- The air pressure requirement ensures that the machine operates efficiently while maintaining optimal performance levels.
The JIH-NC150R Automatic Drilling Machine combines advanced technology, precision, and versatility to meet the demands of modern manufacturing. Whether you’re handling complex drilling tasks or high-volume production, this machine offers the performance and reliability needed to achieve outstanding results.
