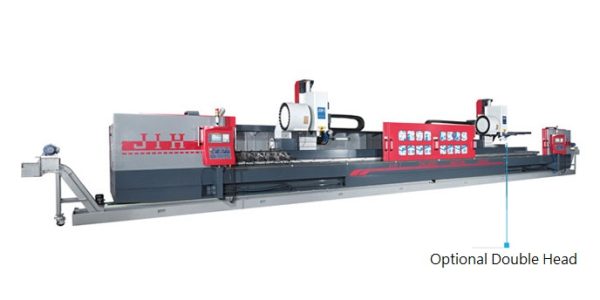

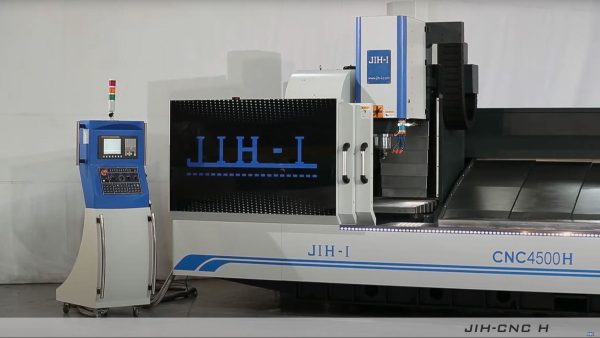

JIH-CNC6500 H Type 3 Axis CNC Machining Centre
Specifications
| Make | JIH |
|---|---|
| Model | CNC6500 H |
Description

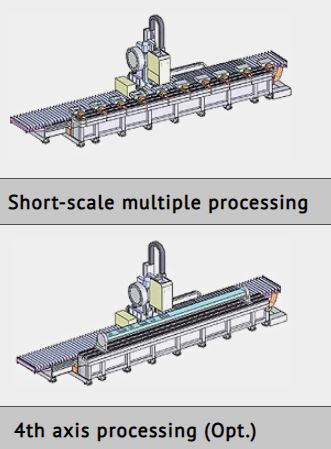

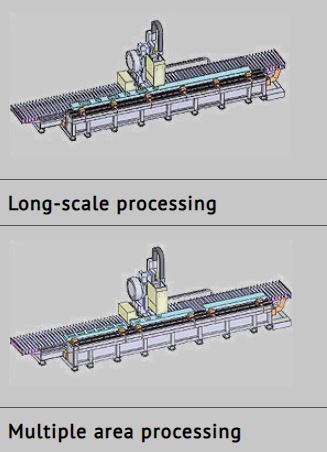

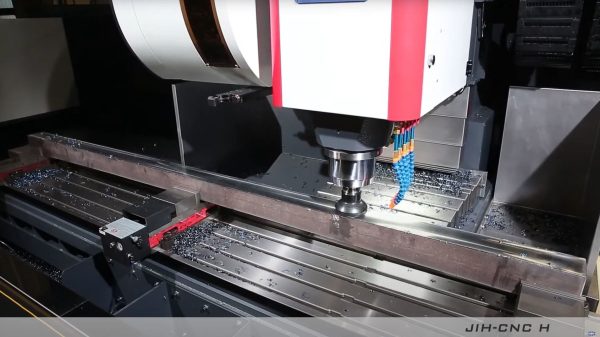

JIH-CNC6500 H Type Extra Fine Craftsmanship The Ultimate in Performance Designed for Long and Short Work piece Machining
Machine Features

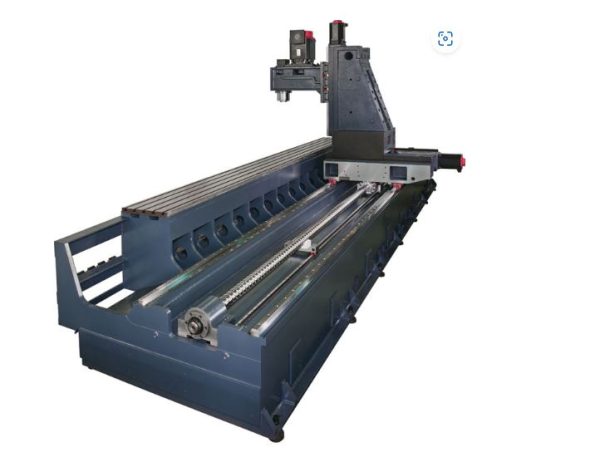

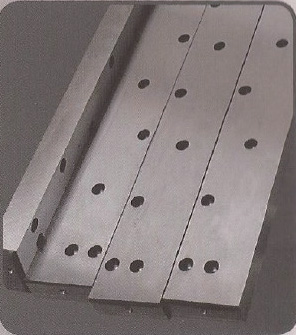

- The base is fabricated from heavy gauge steel plates and scientifically reinforced, allowing for solid support for the column and work pieces.
- Travelling column design features increased machining efficiency and accuracy.
- The oversized box-type column is manufactured from high quality cast iron.
- Large diameter ball screw on x-axis is firmly supported to eliminate self-deflection problems.

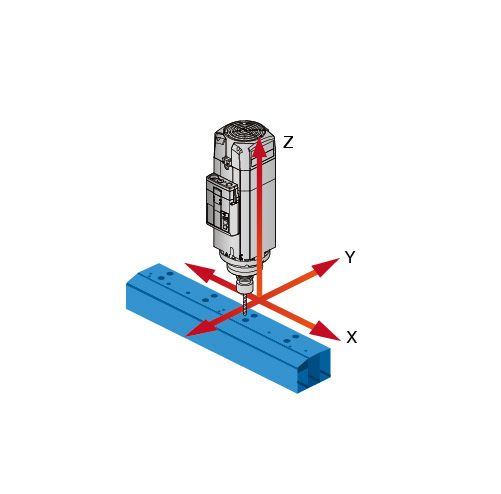

- 3 axis adopt 45 mm P class high precision linear guide ways; X axis features 8 blocks, Y and Z axis are 6 blocks.
- Automatic lubricator delivers lubrication oil to all linear ways and ball screws.
- 3 axis ball screws are direct coupled with drive motors, featuring no backlash, high transmission efficiency and high accuracy.

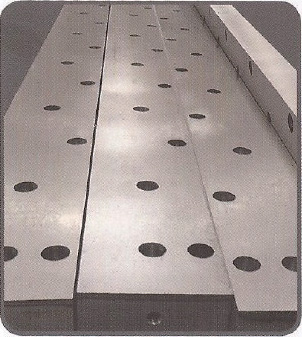

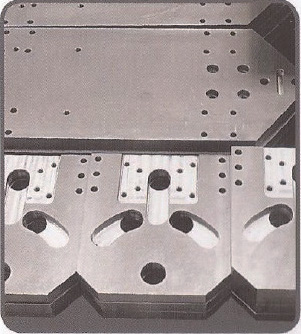

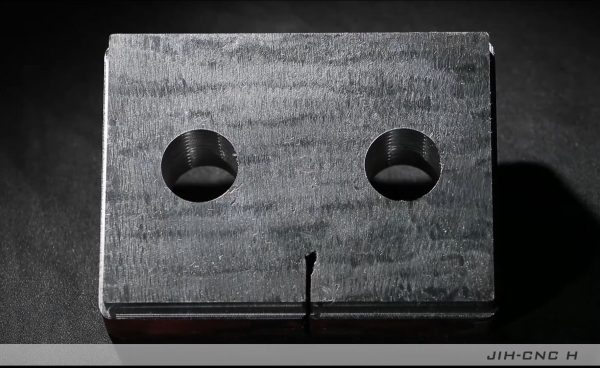

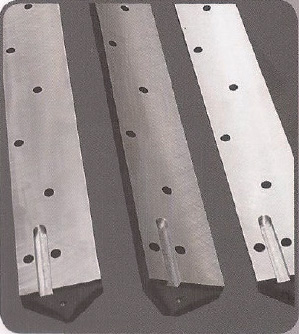

Applicable Materials
- Aluminum
- Steel
- Cast iron
- Mould
- Other non-ferrous metals
Applicable Industries
- Aluminum door and windows
- Curtain wall (glass wall)
- Train rail
- Steel knife
- The body of machine

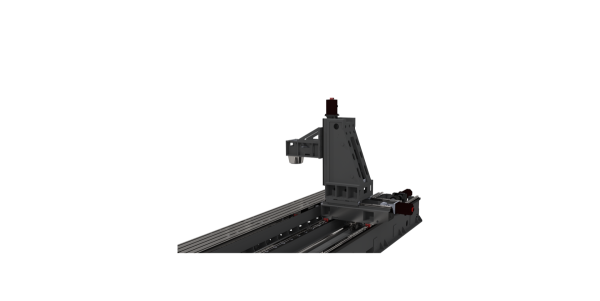

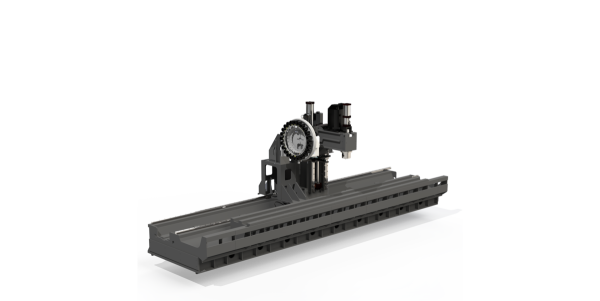

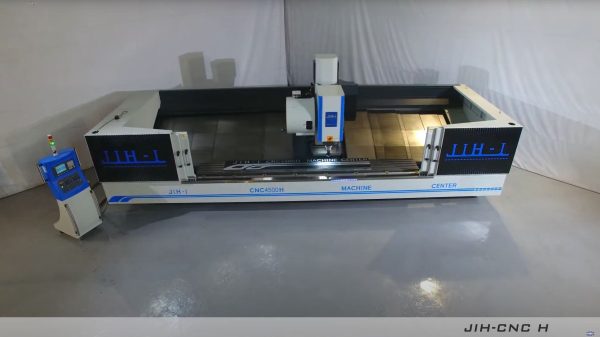

Travelling Column
- The machine is designed with a travelling column and a fixed table.
- With the travelling column configuration,work piece weight will not affect the transmission system. As a result,consistent machining accuracy can be achieved.
- Each linear way on the Y-axis is fitted with 3 sliding blocks to assure ultra-high stability when the Y-axis is moving.

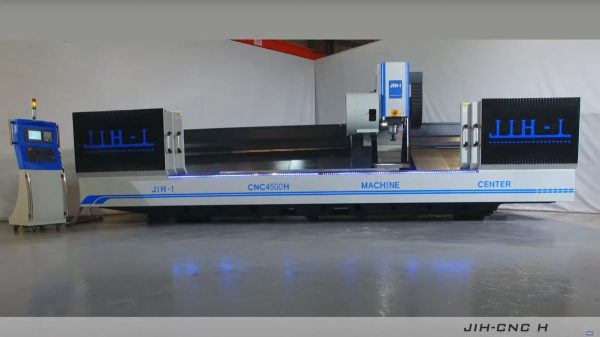

| Model | 6500H | 5500H | 4500H | 3500H |
| Machine Dimensions (LxWxH) | 12,000 x3,100 x3,100mm | 11,000 x3,100 x3,100mm | 10,000 X3,100 X3,100mm | 9,000 x3,100 x3,100mm |
| T-Slot | 6,500x450mm | 5,500x450mm | 4,500X450mm | 3,500x450mm |

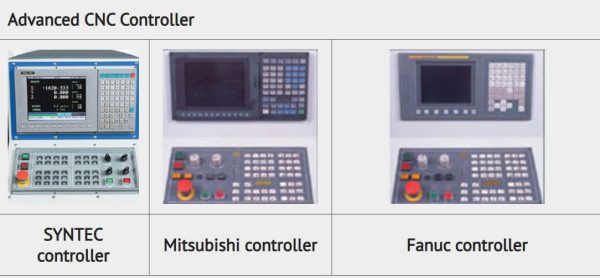

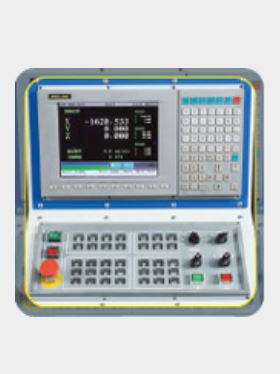

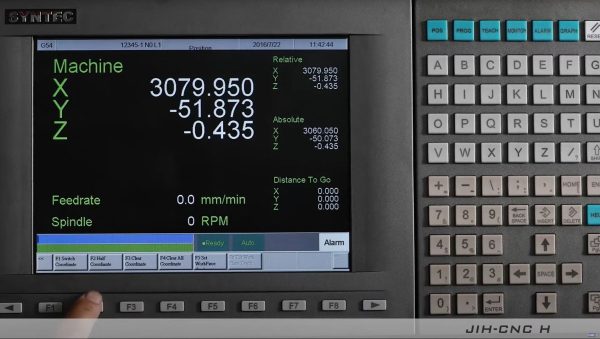

PC-Based CNC Control: The machine is equipped with a PC-based CNC control as standard equipment. It is easy to learn and operate. Upon request Mitsubishi / Fanuc or Siemens CNC control is available (optional).
Arm Type Magazine: The ARM type magazine rotation is driven by a cylindrical cam for fast and dependable is 24 tools. Random tool selection provides highly efficient tool changing.

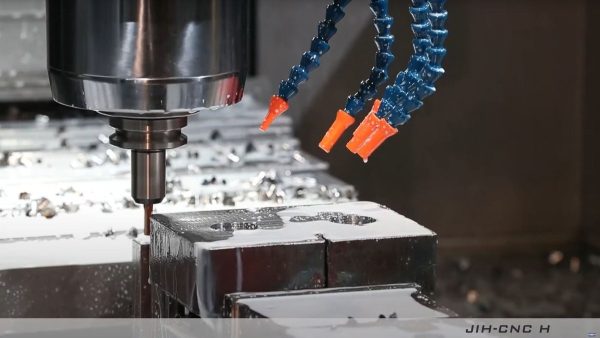

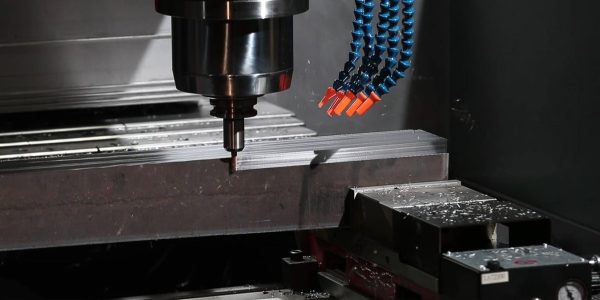

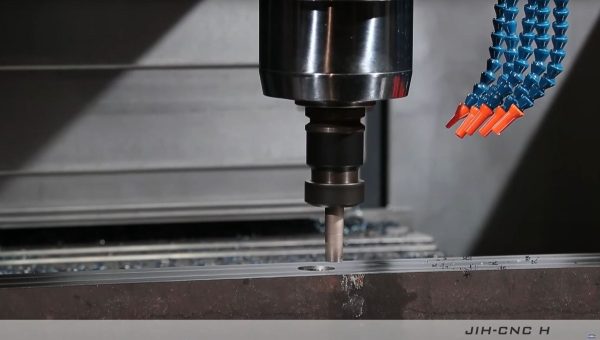

Oil Mist Cooling: The machine is equipped with an oil mist cooling system for efficient cooling of cutting tool and work piece. It not only extends the service life of the tool, but also ensures superior cutting quality.
| Model | JIH-CNC6500H |
|---|---|
| Stroke | |
| X-Axis Stroke | 6,500 mm(Opt.3,500mm/4,500mm/5,500mm) |
| Y-Axis Stroke | 510 mm(Opt.650mm) |
| Z-Axis Stroke | 510 mm (Opt. 700mm) |
| Distance From Spindle Nose To Table Surface | Min. 160 mm, Max. 670 mm |
| Table | |
| Table Type | 5 Groove T-slots Table |
| Table Size | 450 x 6,500 mm (Opt. 600×6500,For Y-Axis stroke 650mm) |
| Max. Load | 1,000 kg |
| T-Slots(No. x Wx P) | 5 x 94 x 450 mm |
| Spindle | |
| Spindle Speed | 12,000 |
| Spindle Motor | 15 HP (11 kw) |
| Spindle Taper Cone | BT40(Opt.BT50 / 8,000R.P.M.) |
| Feed Rate | |
| Rapid Feed Rate(X/Y/Z) | Gear rack X:40 m/min / (Opt. Ball screw X:24 m/min) Ball screw Y:24 m/min, Ball screw Z:24 m/min |
| Servo Motors of 3 Axes | X:5 kw, Y:3.5 kw, Z:3.5 kw |
| Cutting-Feed Rate | F:1~5,000 mm/min |
| Repeatability Accuracy | X: ± 0.02mm, Y: ± 0.01mm, Z:± 0.01mm |
| ATC | |
| Magazine Capacity | 24 Tools |
| ATC Type | Arm-type |
| Tool Holder | BT40 |
| Pull Stud | 45° |
| Max. Tool Length | 300 mm |
| Max. Tool Diameter | 80 mm |
| Max. Tool Weight | 7 kg |
| Dimensions | |
| Required Pneumatic Pressure | 6 kg/cm2 |
| Machine Dimensions(LxWxH) | 15,000 x 3,200 x 3,000 mm |
| Packing Dimensions(LxWxH) | 11,800 x 2,300 x 2,500 mm (2 40-inch containers) |
| Machine Weight | 15,000-21,000 kgs |
