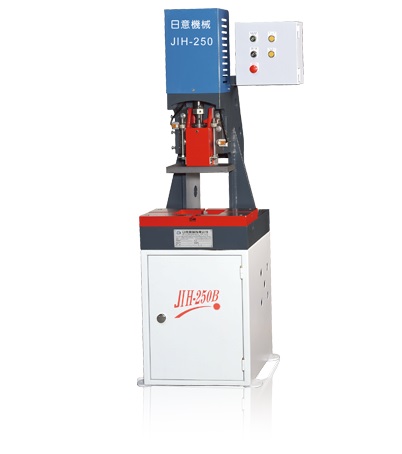

JIH-AUTO 250 R- Automatic Hydraulic Press
Specifications
| Make | JIH |
|---|---|
| Model | AUTO 250 R |
Description
JIH-AUTO 250 R- Automatic Hydraulic Press
Features

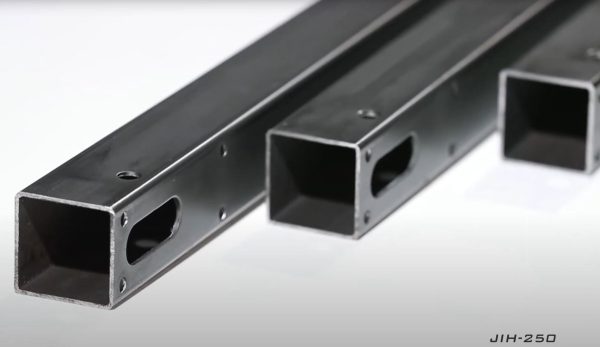

- This machine is designed for punching hold and pressing.
- It has an easy operate hydraulic system that delivers powerful punching performance at very low noise levels.
- It has both manual and automatic operation capabilities. When the start button is pressed, the machine will perform push material and punching hold (pressing) automatically.
- Suitable for two-layer mold machining (model for choose JIH-250B/10tons, JIH-250C/15tons, JIH-250D/20Tons and JIH-250E/25Tons

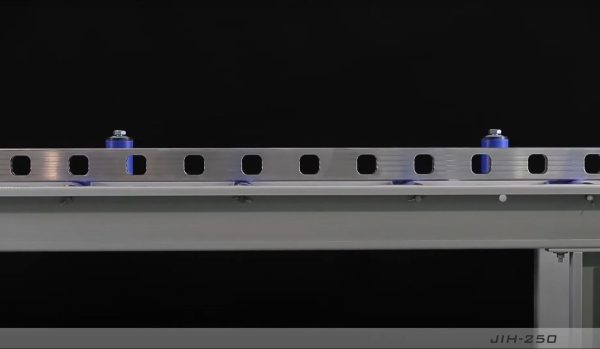

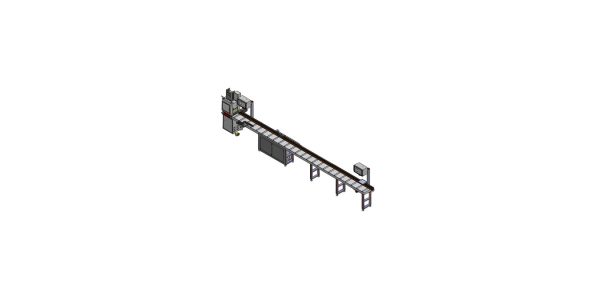

- Automatic push system could choose different feeding length (2.5~6.5m)

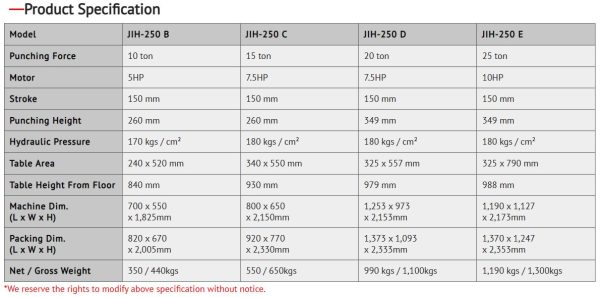

Product Specification
| Model | JIH-250 B | JIH-250 C | JIH-250 D | JIH-250 E |
|---|---|---|---|---|
| Punching Force | 10 ton | 15 ton | 20 ton | 25 ton |
| Motor | 5HP | 7.5HP | 7.5HP | 10HP |
| Stroke | 150 mm | 150 mm | 150 mm | 150 mm |
| Punching Height | 260 mm | 260 mm | 349 mm | 349 mm |
| Hydraulic Pressure | 170 kgs / cm² | 180 kgs / cm² | 180 kgs / cm² | 180 kgs / cm² |
| Table Area | 240 x 520 mm | 340 x 550 mm | 325 x 557 mm | 325 x 790 mm |
| Table Height From Floor | 840 mm | 930 mm | 979 mm | 988 mm |
| Machine Dim. (L x W x H) | 700 x 550 x 1,825mm | 800 x 650 x 2,150mm | 1,253 x 973 x 2,153mm | 1,190 x 1,127 x 2,173mm |
| Packing Dim. (L x W x H) | 820 x 670 x 2,005mm | 920 x 770 x 2,330mm | 1,373 x 1,093 x 2,333mm | 1,370 x 1,247 x 2,353mm |
| Net / Gross Weight | 350 / 440kgs | 550 / 650kgs | 990 kgs / 1,100kgs | 1,190 kgs / 1,300kgs |
*We reserve the rights to modify above specification without notice.

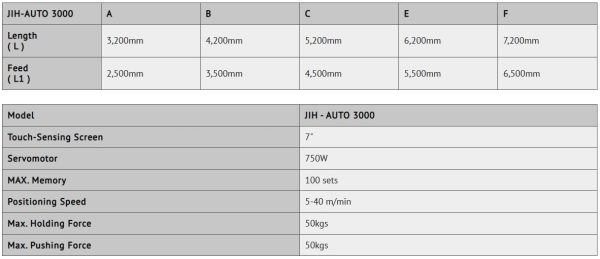

JIH-AUTO 3000
| A | B | C | E | F | |
|---|---|---|---|---|---|
| Length ( L ) | 3,200mm | 4,200mm | 5,200mm | 6,200mm | 7,200mm |
| Feed ( L1 ) | 2,500mm | 3,500mm | 4,500mm | 5,500mm | 6,500mm |
| Model | JIH – AUTO 3000 |
|---|---|
| Touch-Sensing Screen | 7″ |
| Servomotor | 750W |
| MAX. Memory | 100 sets |
| Positioning Speed | 5-40 m/min |
| Max. Holding Force | 50kgs |
| Max. Pushing Force | 50kgs |
