JIH-AUTO 18D – NC Automatic

Specifications

Description

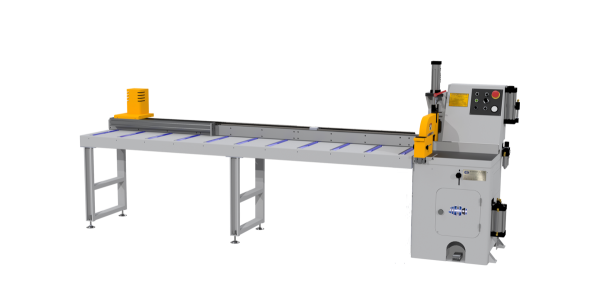

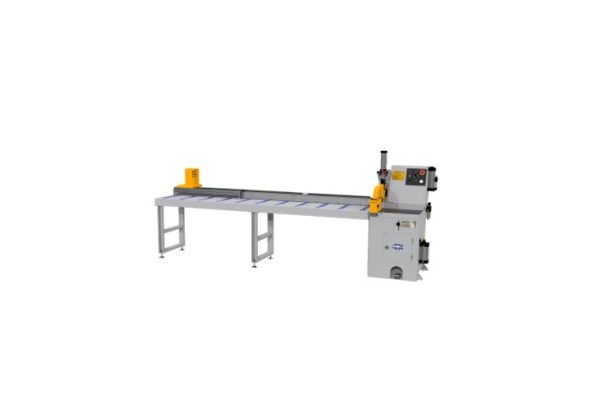

JIH-AUTO 18D – NC Automatic

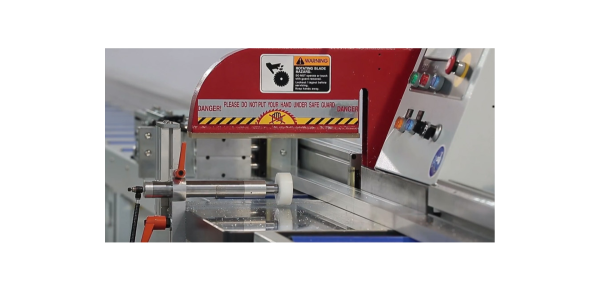

Horizontal clamp system: To make sure the material is clamping well during cutting. Cutting angle with 90°. Saw blade size:18″ x1″ bore.

Vacuum Oil Mist Unit: The vacuum oil mist unit employs vacuum generation principle to transform cutting fluid into oil mist for spraying. It provides lubrication and cooling functions, ensuring no dust deposit and saw blade, high cutting accuracy and long service life of saw blade.

Automatic Position System: Automatic positioning system the fast-moving pusher reaches a maximum speed of 40m/min with perfect positioning.

Graphical Interface System: Its easily understandable setup functions allow the user to instantly operate this piece of equipment.

Touch Screen: The touch screen’s function button allows practical understanding thus bringing out the best of this device.

Standard Equipment

18” Saw Blade x 1pce, Toolbox

Optional Equipment

CE Standard, Infeed, Outfeed Roller Table, Chip Collector, Horizontal Clamp, Hydraulic Feeding

Model   JIH-AUTO 18D (Original Model JIH-455D)

• Applicable Machine: JIH-18 D Type (Other models in JIH – 18 series and JIH -24 series also can be equipped with JIH – AUTO 3000 to convert it into an automatic feed cutting machine.)

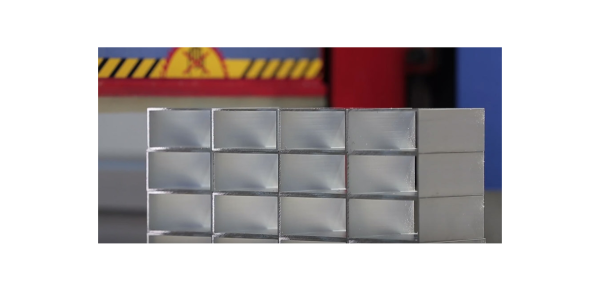

• Cutting Capacity: (H×W)   120 x 120mm 100 x 230mm (same as that show on cutting capacity chart for model JIH – 18 D Type)
• Cutting Length Display And Setting: By touch screen
• Saw Speed: 3,200 R.P.M.
• Saw Motor:  7.5HP (10HP opt.)
• Servomotor:  750w
• Saw Blade Sizes:  18″ x 1′ bore
• Max. Memory: 100 sets
• Table Height from Floor: 860mm
• Touch Screen: 7″
• Air Pressure: 4 – 6kgs/cm²
• Max. Feed Length: Opt. length 3.2~7.2 M
• (Working length 2.5~6.5M
