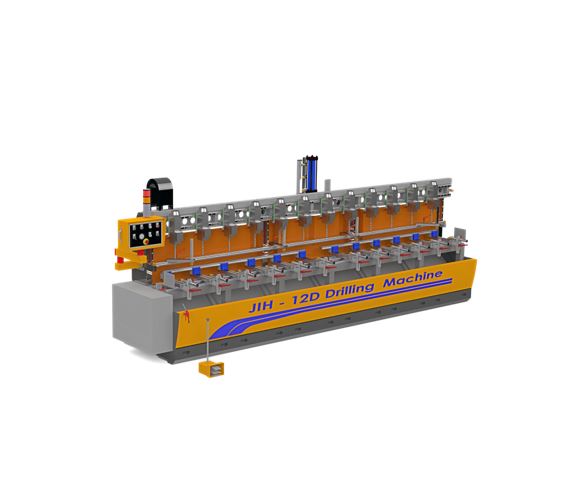

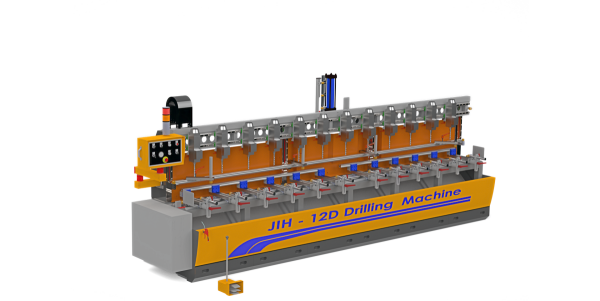

JIH-12D – Drilling Machine

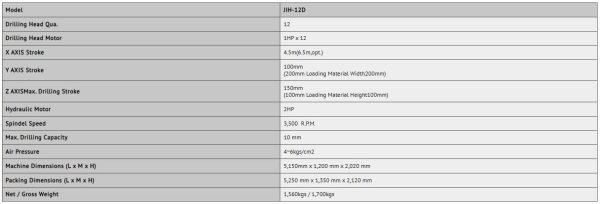

Specifications

Description

The JIH-12D Drilling Machine offers the following features and benefits:

1. Drilling Head:
   • Quantity: 12 drilling heads.
   • Motor: 1 HP per head.
   • X-Axis Stroke: 4.5 meters (6.5 meters optional).
   • Y-Axis Stroke: 100 mm (200 mm for loading material width of 200 mm).
   • Z-Axis Max. Drilling Stroke: 150 mm (100 mm for loading material height of 100 mm).
2. Hydraulic System:
   • Hydraulic motor: 2 HP.
   • Spindle Speed: 3,500 R.P.M.
   • Max. Drilling Capacity: 10 mm.
3. Dimensions and Weight:
   • Machine Dimensions (L x W x H): 5,150 mm x 1,200 mm x 2,020 mm.
   • Packing Dimensions (L x W x H): 5,250 mm x 1,350 mm x 2,120 mm.
   • Net Weight: 1,560 kg.
   • Gross Weight: 1,700 kg.
4. Versatility:
   • Suitable for various applications, including metalworking and construction.
