JIH-125P – End Milling Machine
Specifications
| Make | JIH |
|---|---|
| Model | 125P |
Description

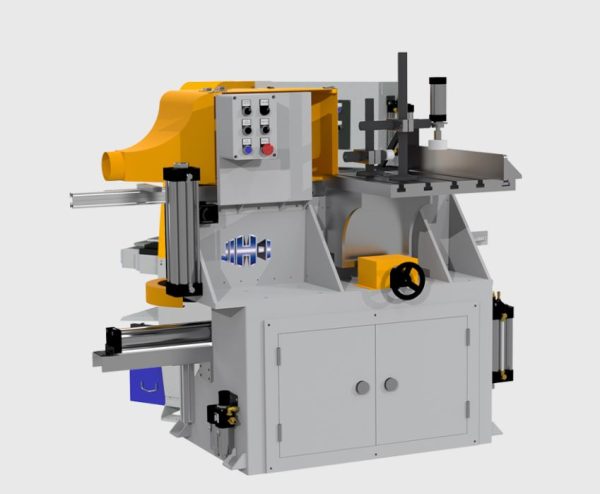

JIH-125P – End Milling Machine
High Capacity End Milling Machine – 500mm Feed Length

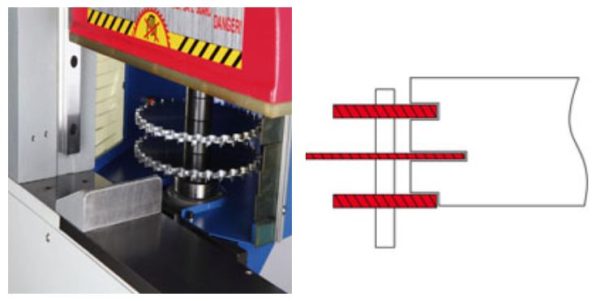

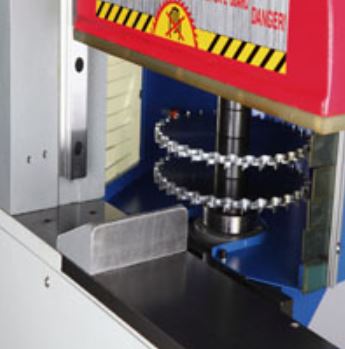

Used for end milling processes of aluminum and plastic profiles. Semi-automatic heavy-duty machine.
- Vertical & horizontal pneumatic clamping system
- Adjustable depth stop
- Large cutting capacity
- Semi automatic operation
- Multiple mist spray cutter lubrication
- Made in Taiwan
- JIH-I Machinery was founded in 1971.

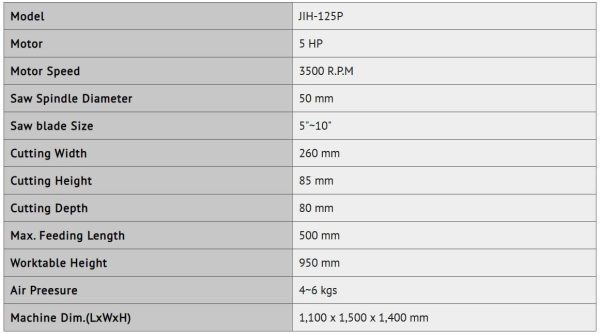

- Model JIH-125P
- Motor 5 HP
- Motor Speed 3500 R.P.M
- Saw Spindle Diameter 50 mm
- Saw blade Size 5″~10″
- Cutting Width 260 mm
- Cutting Height 85 mm
- Cutting Depth 80 mm
- Feeding Length 500 mm
- Worktable Height 950 mm
- Air Preesure 4~6 kgs
- Machine Dim.(LxWxH) 1,100 x 1,500 x 1,400 mm
