IMET – XT6 – Professional Bandsaw
Specifications
Make | IMET |
---|---|
Model | XT6 |
Description

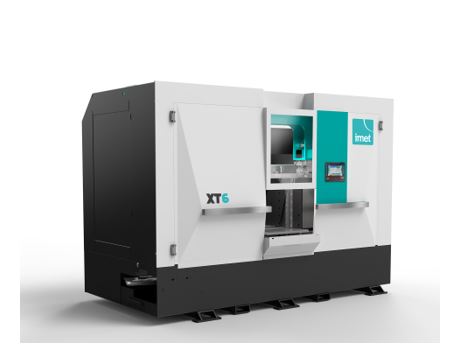

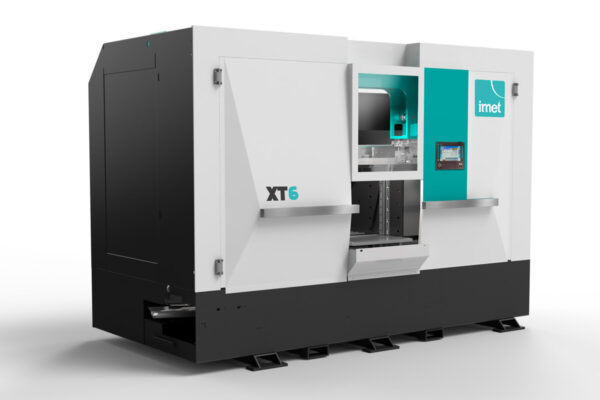

IMET – XT6 – professional bandsaw

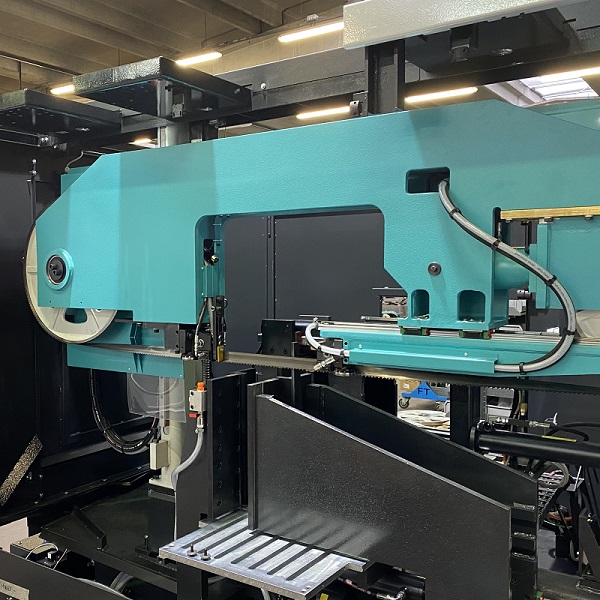

- Double column bandsaws with straight cut for high production and industry application. XT6 is part of the XT Series range which brings the most advanced technology for sawwing to the professional user.

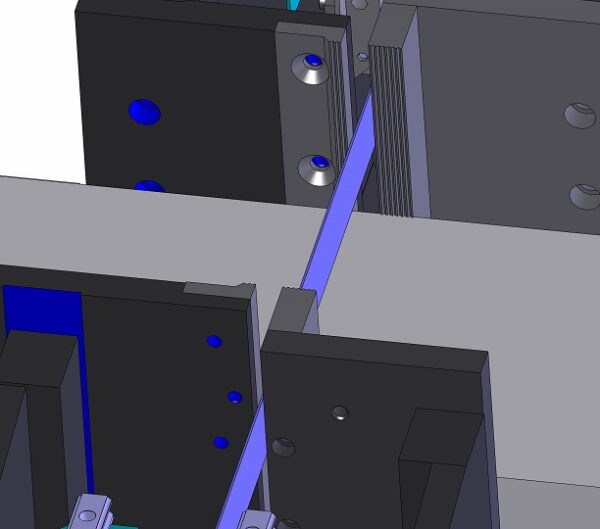

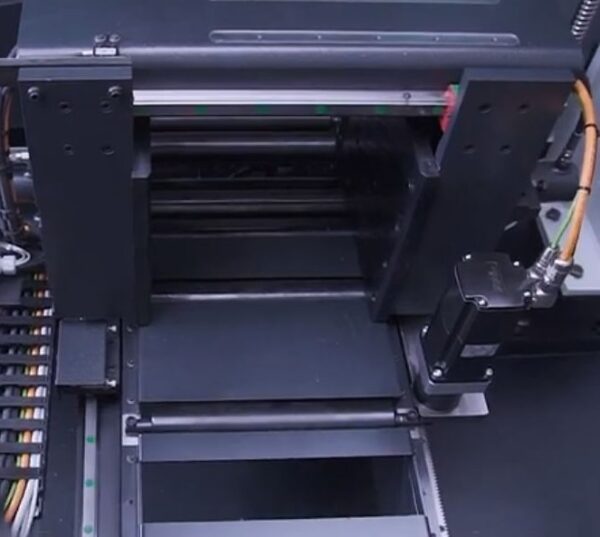

- The machine has an integrated feeder on the roller table with opening vices on both sides for a better positioning and a perfect cut even on non straight bars.
- The machine has an automatic cutting parameters system with more than 150 presetted materials to start easily the cutting process: the machine automatically calculate the blade and material thickness to set the cutting speed and material penetration.

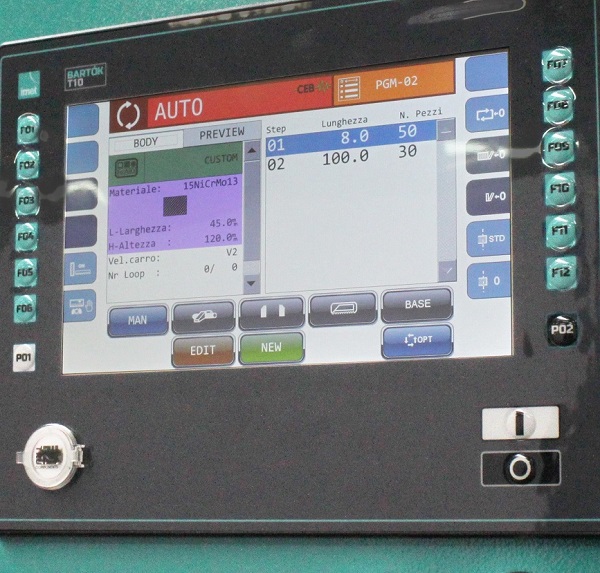

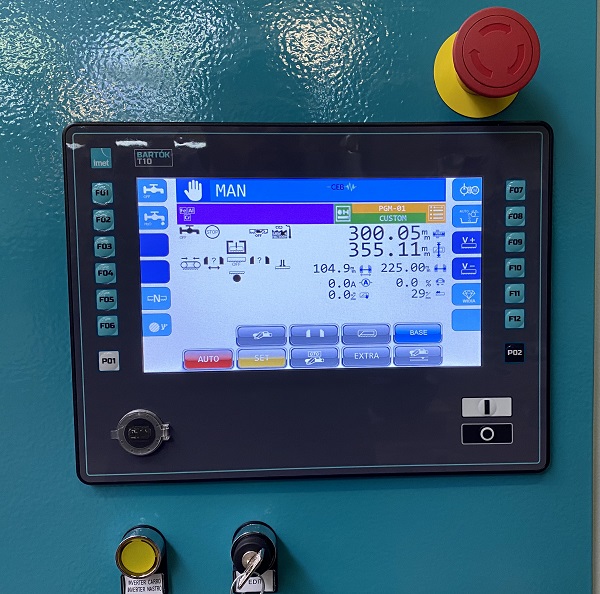

- The entire cutting process, all the machine settings can be managed from the 10” touch sceeen display with simple and intuitive interface.

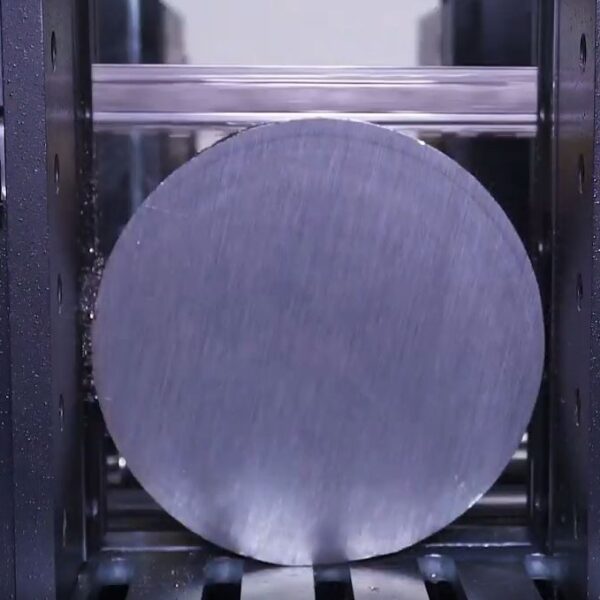

- Cutting capacity at 90 °: Round and square 460 mm.

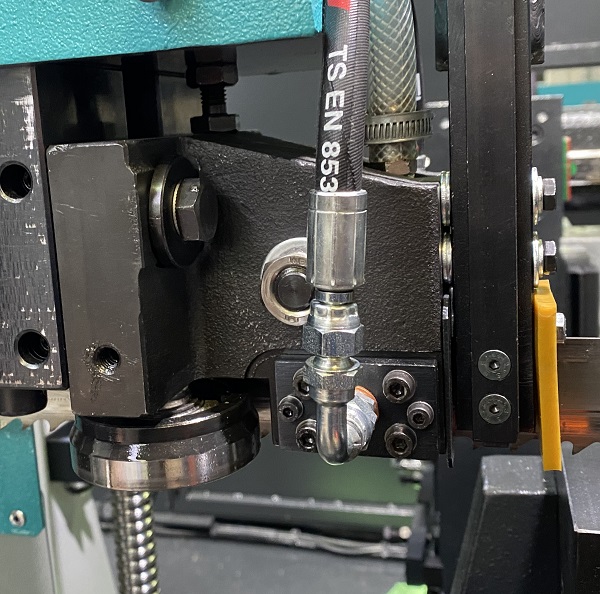

- A device for checking the accuracy/ squareness of the cut, with automatic adjustment or stopping of the sawframe descent speed in the event of blade deviation.

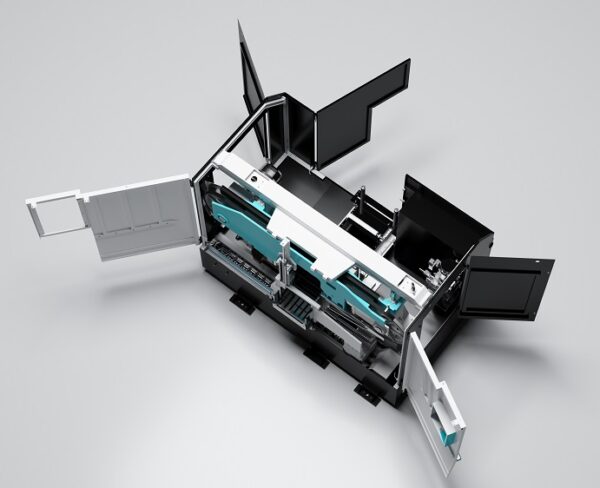

- Operator safety was one of the main topics during the developing process. All the machine parts are protected by carters without affecting the possibility of full access for maintenance.
- *The modem for Industry 4.0, teleservice and remote control is supplied as an optional

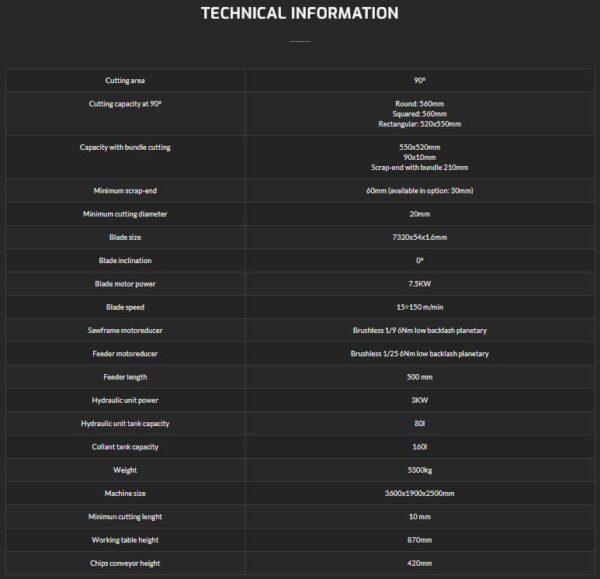

Cutting area | 90° |
Cutting capacity at 90° | Round: 560mm Squared: 560mm Rectangular: 520x550mm |
Capacity with bundle cutting | Max. 550x520mm Min: 90x10mm Scrap-end with bundle 210mm |
Minimum scrap-end | 60mm (available in option: 30mm) |
Minimum cutting diameter | 20mm |
Blade size | 7320x54x1.6mm |
Blade inclination | 0° |
Blade motor power | 7.5KW |
Blade speed | 15÷150 m/min |

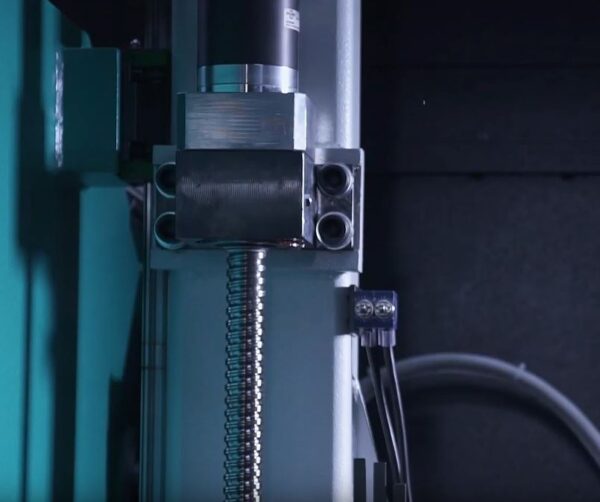

Sawframe motoreducer | Brushless 1/9 6Nm low backlash planetary |
Feeder motoreducer | Brushless 1/25 6Nm low backlash planetary |
Feeder length | 500 mm |

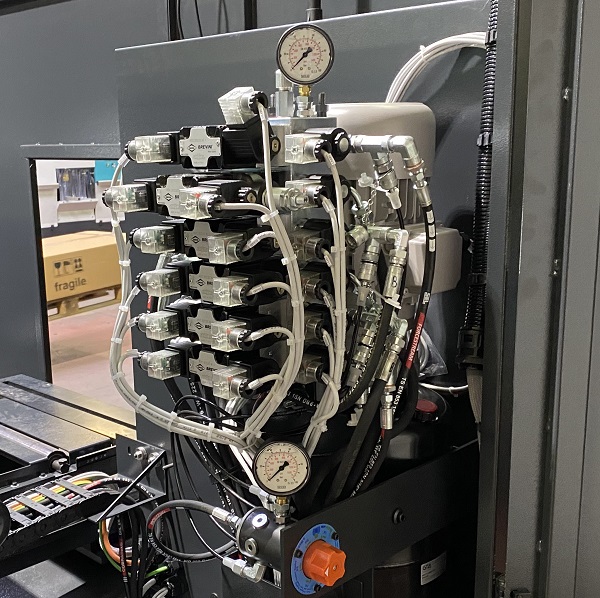

Hydraulic unit power | 3KW |
Hydraulic unit tank capacity | 25l |
Collant tank capacity | 160l |
Weight | 5300kg |
Machine size | 3600x1900x2500mm |
Minimun cutting lenght | 10 mm |
Working table height | 870mm |

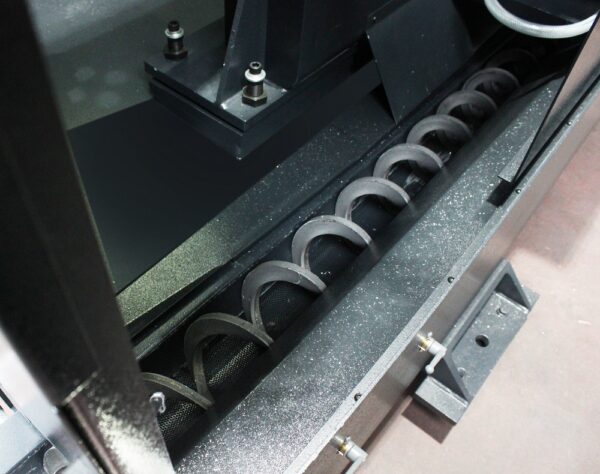

Chips conveyor height | 420mm |
