IMET – VELOX 350 AF-NC 90 – CNC automatic circular machine for aluminium

CNC automatic circular machine for aluminium

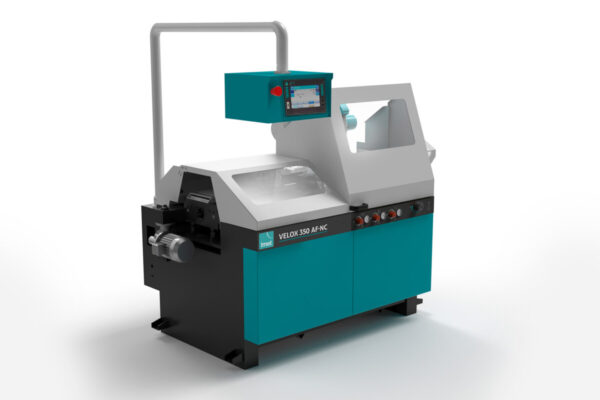

Automatic circular saw VELOX 350 AF-NC 90° is a professional working tool developed to cut aluminium, light and non-ferrous materials with high precision and accuracy; the machine is designed to cut only at 0° with a reduced final scrap-end (30 mm). It’s available in two version: one has the feeder with piston transmission, the other with belt.

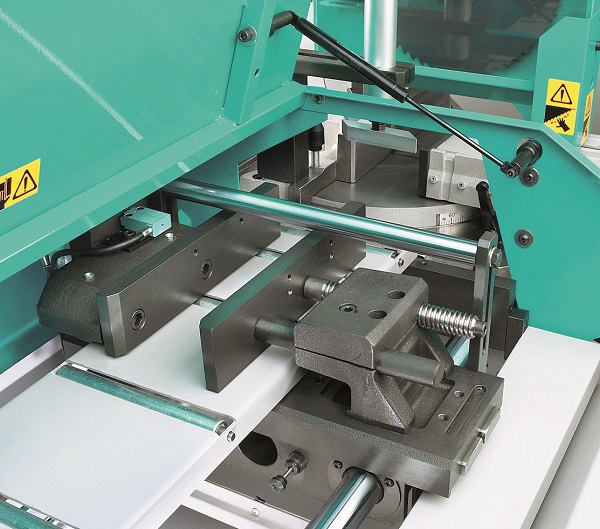

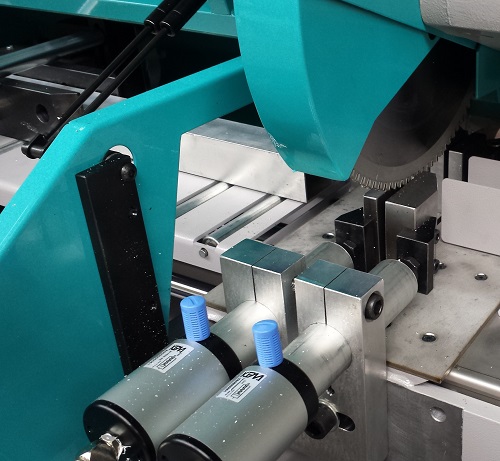

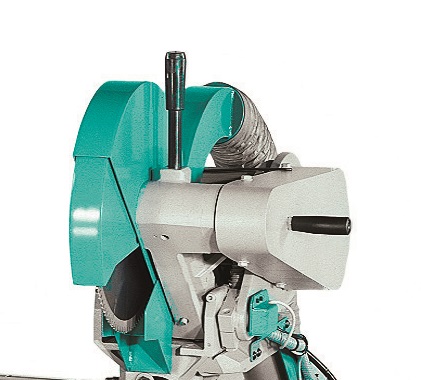

Head in cast-iron – Velox machines have a cast-iron cutting head made in block block that helps to reduce vibration while cutting and avoid slow-downs and bindings; a vertical piston provides to have an easy material blocking with the results to optimize user’s working cycle.

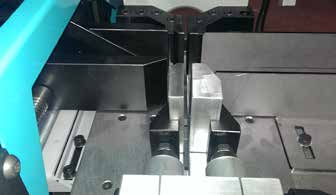

Reduced scrap-end – VELOX 350 AF-NC 90° version is designed and optimized for 90° cutting and to reduce scrap-end to 30mm.

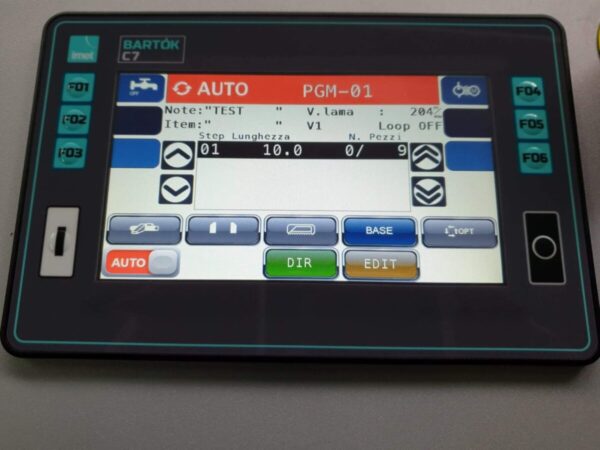

7″ touch screen display (belt feeder version) – VELOX 350 AF-NC 90° with belt transmission uses a 7″ touch screen display with easy to use inteface and possibility to manage all machine parameters with just few clicks to improve and optimize operator’s user experience and workflow. The innovative interface allows to set easily many cutting programs and lines on the same bar.

Feeder carriage: version with belt (F500-F1200) – Integrated automatic feeder moved by electric motor with inverter; the transmission in provided by belt with encoder, rack and pignon. Single maximum stroke 550 mm, minimum scrap-end 30 mm. It’s available with this version also the longer feeder with 1200mm stroke. Belt version has reduced speed compared to the previous, but it’s more functional for users who need to cut many different cutting lengths on the same bar.

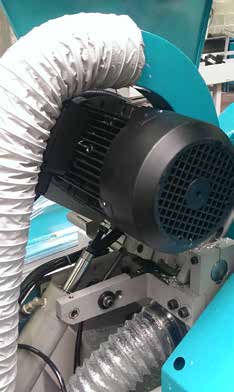

Safety – The opening system of the guard cover is delayed to guarantee maximum operator safety There is an integral protection of the blade and the conveyor for the suction of the chips with cover fixed on the unloading side.

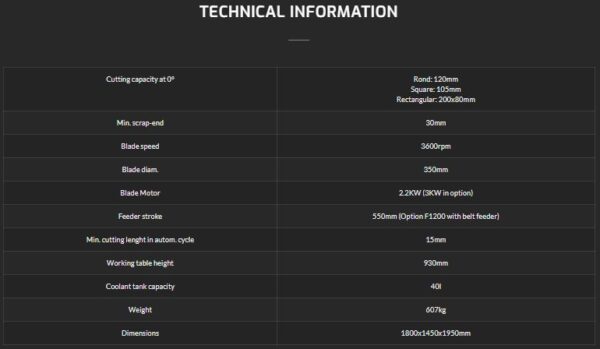

TECHNICAL INFORMATION
