IMET – RECORD 350 – Manual Cold Saw
Specifications
| Make | IMET |
|---|---|
| Model | RECORD 350 |
Description

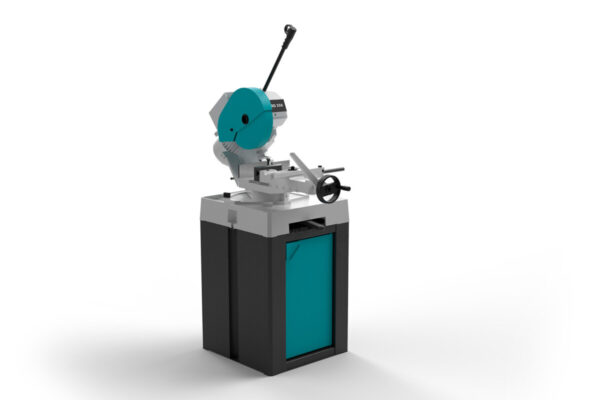

IMET – RECORD 350 – manual coldsaw
Manual and strong circular saw
RECORD 350 sawing machine is a robust and reliable saw for cutting metals (steel with a resistance of 70kg / m2).
Equipped with swivel head and vice, it makes cuts from 0 ° to 45 ° to the right and left, also allowing cutting to 90 ° along the longitudinal axis.
Highly recommended circular saw for demanding applications.
Manual and strong circular saw, mitre cutting from 0° to 45° left and right.
- 90° longitudinal cuts are possible thanks to the rotating vice.
- Suited to cut metal profiles and solids (steel with resistance up to 70 kg/mm²).
- Rotating head and vice, external adjustable clutch. Crown gear/endless screw in oil bath, with adjustable bearings and elastic coupling.
- Start button inside the handle. Main switch, thermic and magnetic motor protections.
- Coolant system with pump and additional filter. Handle to rotate the head.

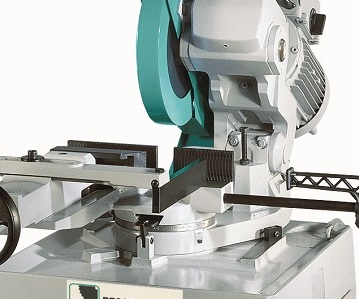

- Vice with quick clamping device and adjustable guides. Closing jaw and adjustable anti-burr device to get double clamping with mitre cutting also.
- Blade spindle 32mm diameter. Adjustable length stop.

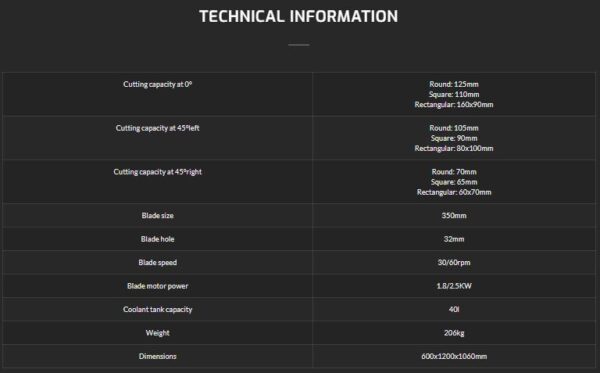

- Cutting capacity at 90 °, round till 125 mm., square till 110 mm., rectangular till 160 x 90 mm.
