IMET – BS 350 GH – Autocut Bandsaw
Specifications
| Make | IMET |
|---|
Description
Delahenty Machinery offers a range of bandsaws, circular saws and sawing machines.
Products to meet the increasingly complex client needs, in compliance with the highest standards of safety and environment.

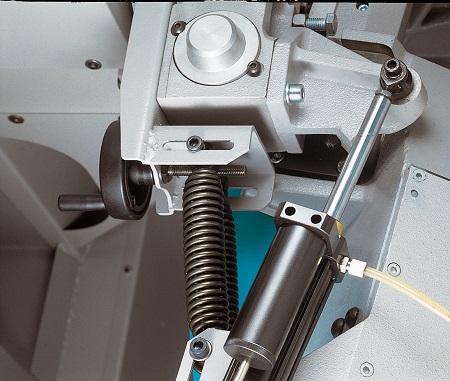

The BS 350 GH sawing machine is a highly versatile and reliable machine with autonomous descent for cutting small and medium series productions both mechanical and carpentry for angle cuts up to 45 ° right and up to 60 ° left.

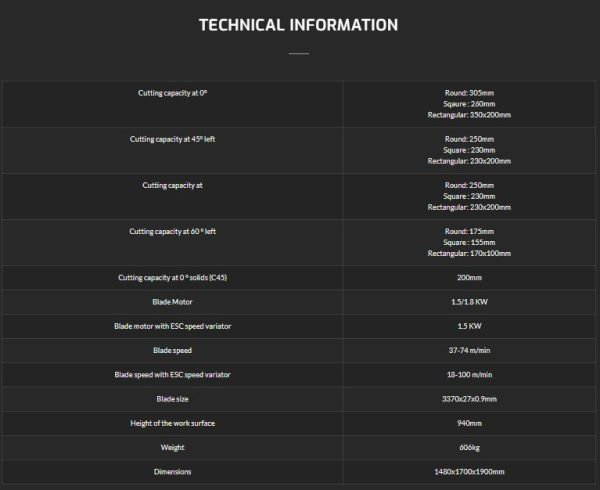

TECHNICAL INFORMATION
| Cutting capacity at 0° | Round: 305mm Sqaure : 260mm Rectangular: 350x200mm |
| Cutting capacity at 45° left | Round: 250mm Square : 230mm Rectangular: 230x200mm |
| Cutting capacity at 45° right | Round: 250mm Square : 230mm Rectangular: 230x200mm |
| Cutting capacity at 60° left | Round: 175mm Square : 155mm Rectangular: 170x100mm |
| Cutting capacity at 0° solids (C45) | 200mm |
| Blade Motor | 1.5/1.8 KW |
| Blade motor with ESC speed variator | 1.5 KW |
| Blade speed | 37-74 m/min |
| Blade speed with ESC speed variator | 18-100 m/min |
| Blade size | 3370x27x0.9mm |
| Height of the work surface | 940mm |
| Weight | 606kg |
| Dimensions | 1480x1700x1900mm |
