View Brochure

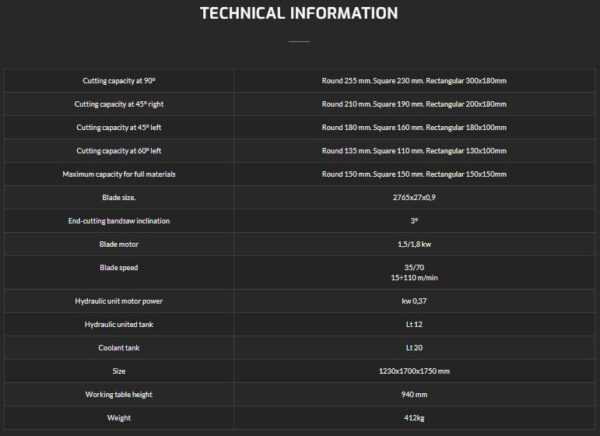

Specifications

Make

IMET

Model

BS 300 PLUS

Description

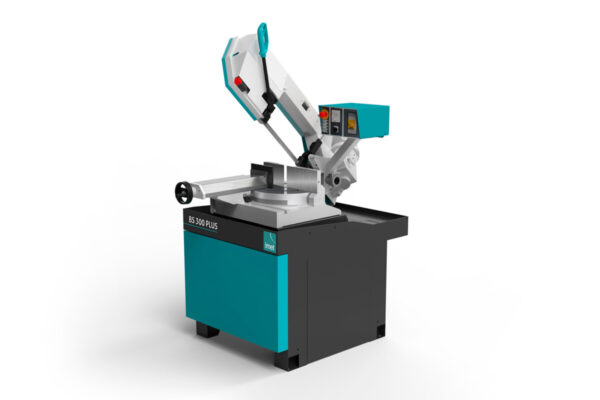

IMET – BS 300 PLUS – Bandsaw

  • Manual bandsaw able to cut both left and right
  • Versatile Bandsaw for cuts of small and medium batch production either mechanics or light steelwork up to 45° right and 60° left.

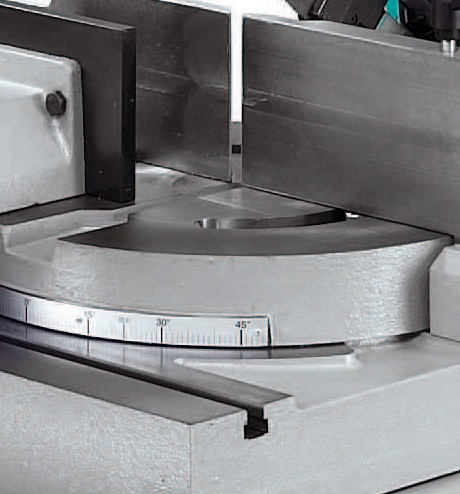

  • Automatic easy stops at 0°, 45°, 60° left and 45°right. Graduated plate to identify different angles.

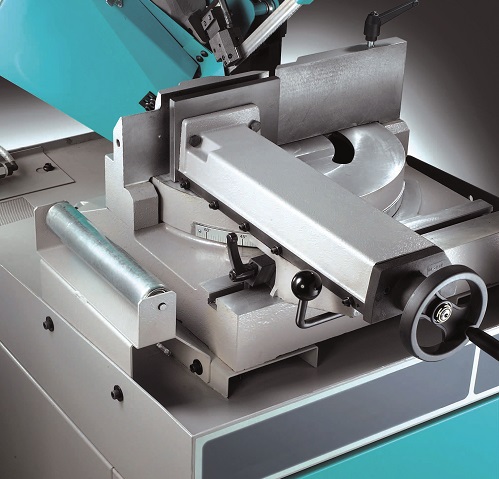

  • Vice with adjustable guides, free to move alongside the worktable, with rapid approaching and clamping.
  • Blade guides with hard metal pads, additional bearings for blade alignment.

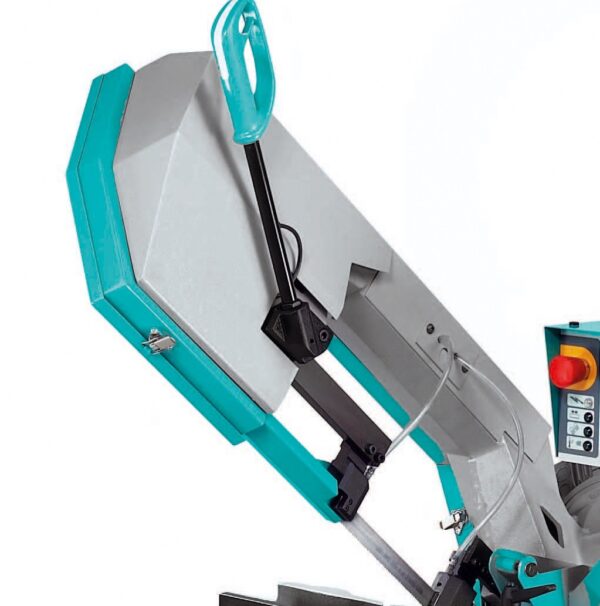

  • Rigid cast-iron sawframe with tubular section, pulleys 320 mm diameter and high blade tension 1700 kg / cm².
  • Wide working space 418 mm diameter with rotating table integral with the sawframe to avoid incisions of the table, rotation on thrust ring with pre-loaded thrust bearing.
  • Cutting Capacity till 255 mm., square till 240 mm. and rectangular till 300×180 mm.

Optional

  • Minimal lubrification system: it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected.
  • Adapter to synchronize RTP/RTD: Adapter to synchronize the RTP/RTD table with sawframe motion.
  • Laser ray
