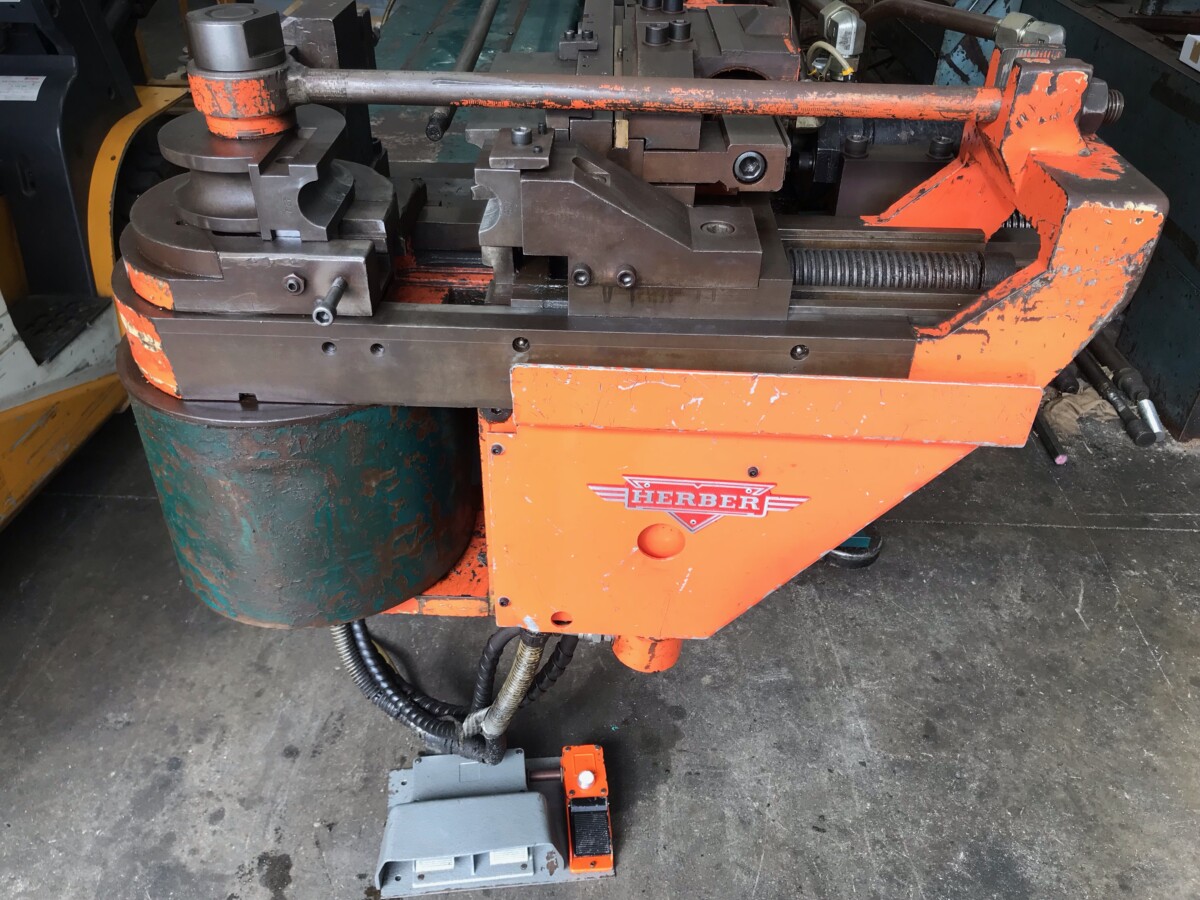

HERBER – EBM-75 – Tube Bending Machine
Specifications
| Make | HERBER |
|---|---|
| Model | EBM-75 |
Description
HERBER – EBM-75 – Tube Bending Machine

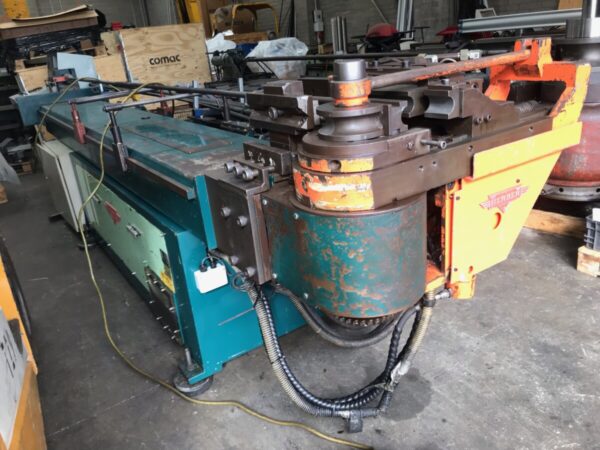

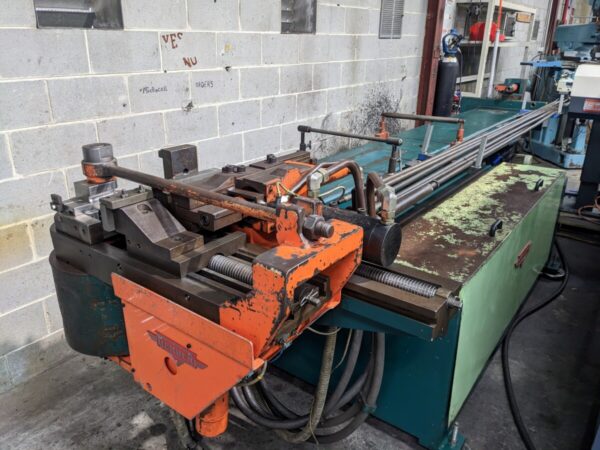

One only S/H Single Axis Herber Model EBM75 Tube Bending Machine complete with

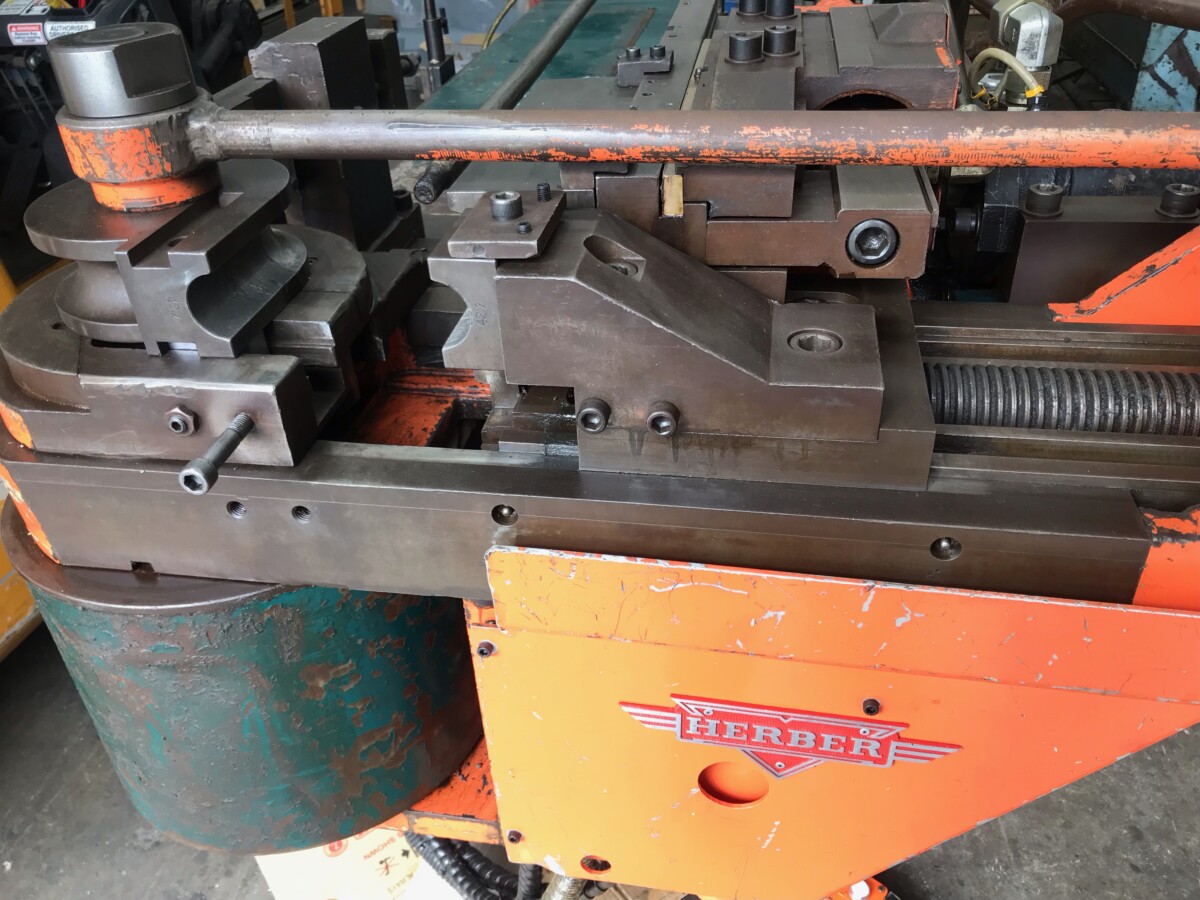

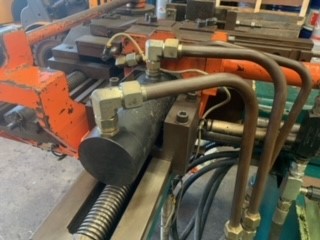

- Follower slide Unit
- Direct Acting Clamp
- Wiper Die Bracket
Machine Details
Max bending Capacity Mild Steel : 75 x 3 mm
Center radius: 50-300 mm

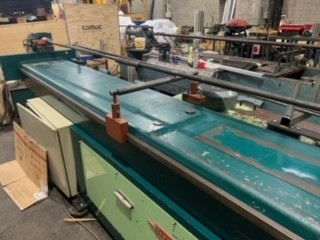

Mandrel length: 4000 mm
Bending angle: 180 deg.
Engines total: 32 kW
Length: 4900 mm
Width: 1400 mm
Height: 1500 mm
Weight: 2500 kg

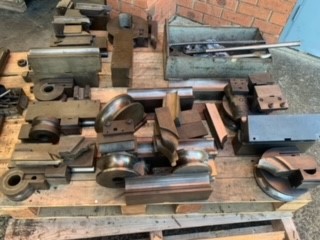

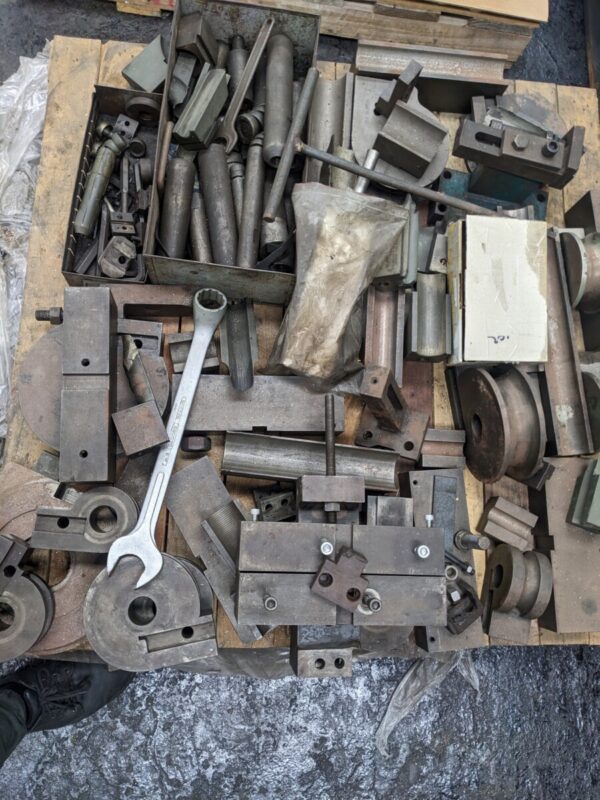

Tooling
- 25.4mm Dia x 50.8mm CLR
- 26.7mm Dia x 57mm CLR
- 31.8mm Dia x 63.5mm CLR
- 33.4mm Dia x 67mm CLR
- 38.1mm x 76.2mm CLR
- 42.4mm Dia x 85mm CLR
- 48.3mm Dia x 97mm CLR
- 50.8mm Dia x 101.6mm CLR
- 60.3mm Dia x 121mm CLR
- 63.5mm Dia x 95.25mm CLR
