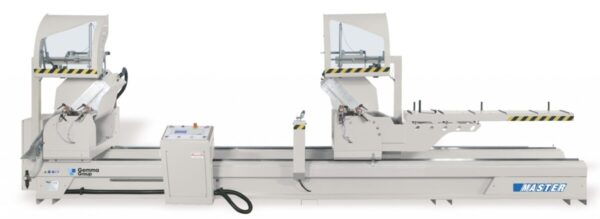

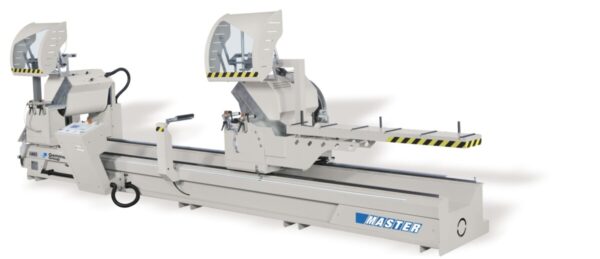

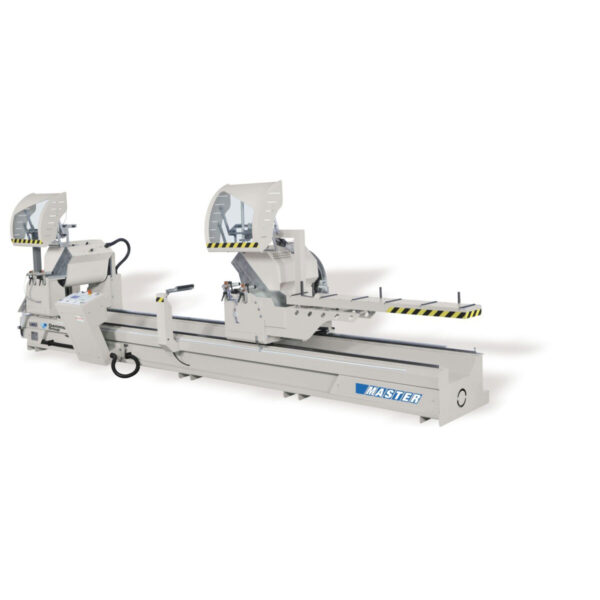

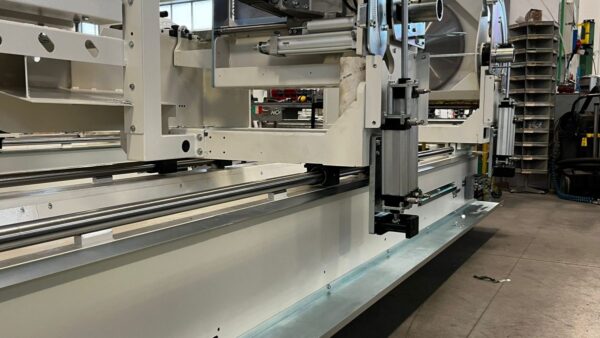

GEMMA – Master P – Double Head Cutting Machine

The GEMMA Master P Double-Head Cutting Machine offers impressive features and benefits for precision cutting.

1. Double-Head Design:
   • Fixed left unit and automatic right head that’s movable via numeric control.
   • Allows efficient cutting from both sides, enhancing productivity.
2. Pneumatic Tilting:
   • Both cutting heads can tilt at angles of +20°, +45°, 90°, and -45°.
   • Mechanical stops enable intermediate angles.
   • Versatile for various cutting requirements.
3. Brushless Motor Positioning:
   • Axes positioning is controlled by a brushless motor.
   • Ensures accurate and smooth movement during cutting operations.

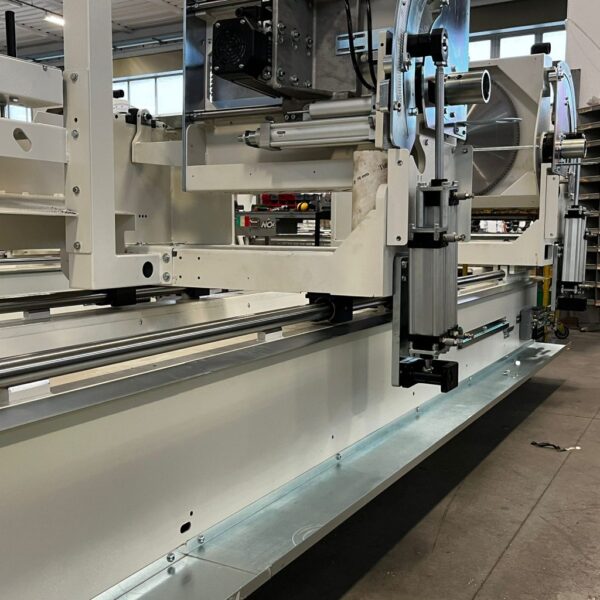

4. Linear Guides with Caged Balls:
   • The movable sawing head moves along linear guides.
   • Caged balls provide stability and precision.
   • Consistent performance over time.
5. Wide Blades:
   • Equipped with wide blades with a diameter of 600 mm.
   • Suitable for cutting various materials.

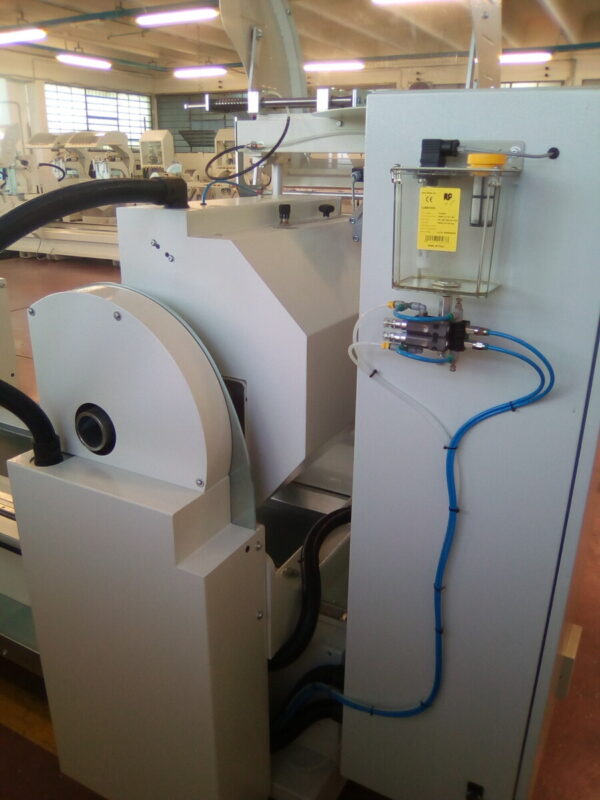

6. Micro-Drop Cutting Lubrication:
   • Efficient lubrication system using pure oil.
   • Reduces friction and prolongs blade life.
7. Safety Features:
   • Integral cutting area protections with automatic opening and closing.
   • Complies with CE safety regulations.
   • IP 55 protection.
8. Industry 4.0 Ready:
   • Meets Industry 4.0 requirements.
   • Ethernet, Wi-Fi, and teleassistance capabilities.
9. Technical Specifications:
   • X-Axis Stroke: 5,000 mm.
   • Blade Diameter: 600 mm.
   • Motor Power: 3 kW (x2).
   • Cutting Capacity: Up to 200×200 mm at 90°.
