FONG HO – FHC-485NC – Hydraulic Automatic Type Aluminum Copper Sawing Machine

Specifications

Description

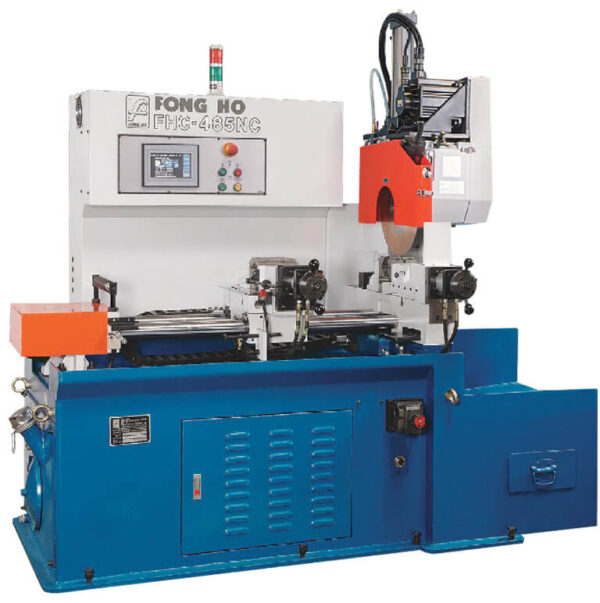

FONG HO – FHC-485NC – Hydraulic Automatic Type Aluminum Copper Sawing Machine

FONG HO FHC-485NC, a state-of-the-art hydraulic automatic sawing machine designed for precision and efficiency in aluminum and copper cutting. Perfect for high-volume production, this machine offers unparalleled performance and ease of use.

Key Features:

• Human/Machine Interface Control: User-friendly operations with a touch sensing screen for easy navigation.
• Servo Motor-Driven Infeed: Ensures precise and consistent cutting.
• High Cutting Accuracy: Numerically controlled for exact results every time.
• Sawblade Gap Compensation Device: Hydraulic type for maintaining cutting precision.
• Frequency Inverter + Frequency Motor: Optional feature for enhanced performance.

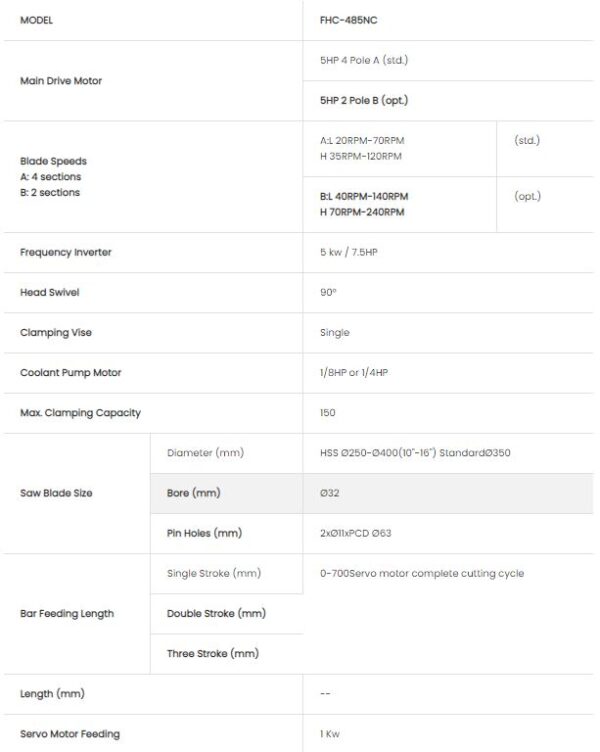

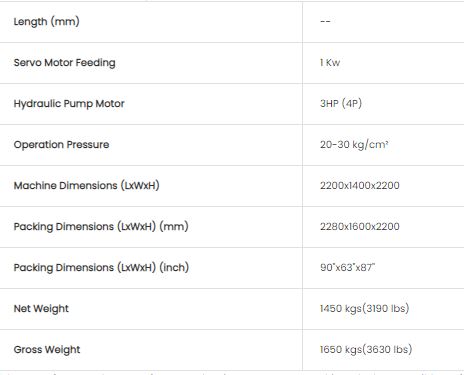

Technical Specifications:

• Main Drive Motor: 5HP, 4 Pole (standard) or 5HP, 2 Pole (optional).
• Blade Speeds:
  • Standard: 20-70 RPM (low), 35-120 RPM (high).
  • Optional: 40-140 RPM (low), 70-240 RPM (high).
• Max. Clamping Capacity: 150 mm.
• Saw Blade Size: HSS Ø250-Ø400 mm (standard Ø350 mm).
• Bar Feeding Length: Single stroke up to 700 mm with servo motor complete cutting cycle.
• Hydraulic Pump Motor: 3HP (4P).
• Operation Pressure: 20-30 kg/cm².
• Machine Dimensions: 2200 x 1400 x 2200 mm.
• Net Weight: 1450 kg.

Benefits:

• Efficiency: Automates the cutting process, reducing manual labor and increasing productivity.
• Precision: High accuracy ensures minimal waste and optimal material usage.
• Versatility: Suitable for various industrial applications, including aluminum and copper cutting.
• User-Friendly: Easy to operate with intuitive controls and minimal setup time.

Upgrade your metalworking capabilities with the FONG HO FHC-485NC and experience the future of precision cutting.
