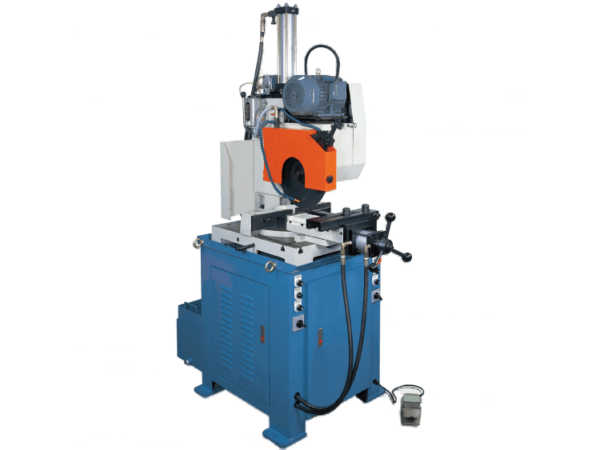

FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]
![FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]](https://www.delahenty.com.au/newwp/wp-content/uploads/2024/08/prod1457335675-600x450.png "FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]")
![FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]](https://www.delahenty.com.au/newwp/wp-content/uploads/2024/08/Capture-600x698.jpg "FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]")
![FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]](https://www.delahenty.com.au/newwp/wp-content/uploads/2024/08/product-pic-047_E.jpg "FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]")
![FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]](https://www.delahenty.com.au/newwp/wp-content/uploads/2024/08/prod1457335675-100x100.png "FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]")
![FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]](https://www.delahenty.com.au/newwp/wp-content/uploads/2024/08/Capture-100x100.jpg "FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]")
![FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]](https://www.delahenty.com.au/newwp/wp-content/uploads/2024/08/product-pic-047_E-100x100.jpg "FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]")
Specifications
| Brand | FONG HO |
|---|---|
| Model | FHC-425P |
Description
FONG HO – FHC-425P – Circular Cold Saw [Semi Auto]
- Sawblade HSS Ø250 – Ø425mm, Ø350mm. (standard)
- Hydraulically operated type.
- ‧Semi-automatic operation for clamping and cutting off.
- Tool gap compensation device. (hydraulic)
- Movable guard. (optional)
Standard Equipment:
Motor, switch, complete cooling system, adjustable stop, service tools.
Optional Equipment:
Saw blade, movable safety guard, cutting fluid.
| MODEL | FHC-425SA | |
|---|---|---|
| Main Drive Motor | A:5HP / 3HP 2/4 Pole(std) Low 50HZ/60HZ 70/35 rpm High 50HZ/60HZ 120/60 rpm | |
| Blade Speeds | B:3HP 6 Pole(opt.) 50 HZ 35/20 rpm 60 HZ 42/23 rpm | |

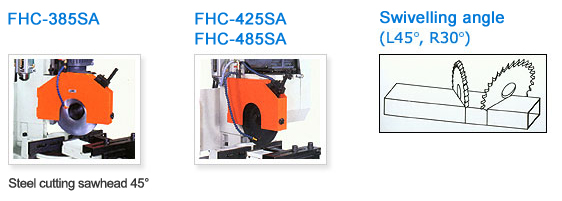

| Head Swivel | L45° 90° R30° | |
| Clamping Vise | Single | |
| Coolant Pump Motor | 1/8 HP 40W | |
| Saw Blade Size | Diameter (mm) | HSS Ø250-Ø350(10″-14″) Standard Ø350 |
| Bore (mm) | Ø32 | |
| Pin Holes (mm) | 2xØ11xPCD 63 | |
| Air Pressure (Consumption) | — | |
| Hydraulic Pump Motor | 2HP 4P | |
| Operation Pressure | 20-30 kg/cm² | |
| Machine Dimensions (LxWxH) (mm) | 1300x1400x1900 | |
| Packing Dimensions (LxWxH) (mm) | 1460x820x2230 | |
| Packing Dimensions (LxWxH) (inch) | 58″x33″x88″ | |
| Net Weight | 650 kgs (1430 lbs) | |
| Gross Weight | 850 kgs (1870 lbs) | |

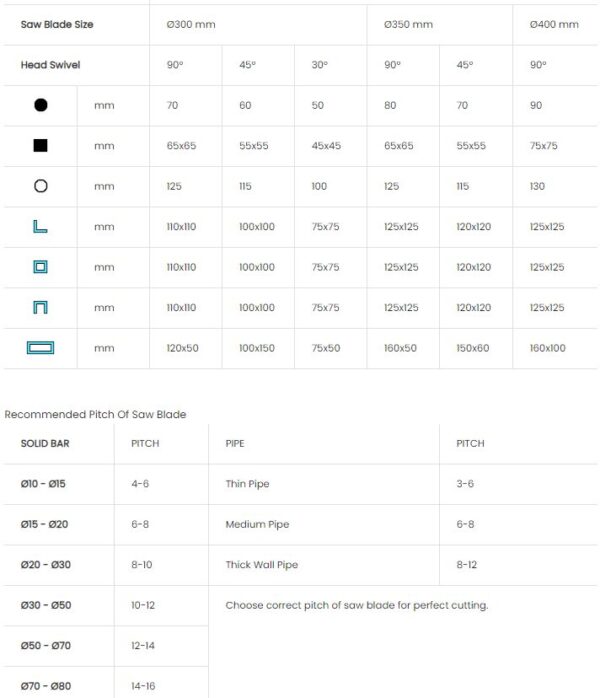

| MODEL | FHC-425SA, FHC-485SA Series | ||||||
| Saw Blade Size | Ø300 mm | Ø350 mm | Ø400 mm | ||||
| Head Swivel | 90° | 45° | 30° | 90° | 45° | 90° | |
 | mm | 70 | 60 | 50 | 76 | 60 | 76 |
 | mm | 65×65 | 55×55 | 45×45 | 65×65 | 55×55 | 75×75 |
 | mm | 125 | 115 | 100 | 125 | 115 | 130 |
 | mm | 110×110 | 100×100 | 75×75 | 125×125 | 120×120 | 125×125 |
 | mm | 110×110 | 100×100 | 75×75 | 125×125 | 120×120 | 125×125 |
 | mm | 110×110 | 100×100 | 75×75 | 125×125 | 120×120 | 125×125 |
 | mm | 120×50 | 120×50 | 70×50 | 160×50 | 150×60 | 160×100 |
Recommended Pitch Of Saw Blade
| SOLID BAR | PITCH | PIPE | PITCH |
| Ø10 – Ø15 | 4-6 | Thin Pipe | 3-6 |
| Ø15 – Ø20 | 6-8 | Medium Pipe | 6-8 |
| Ø20 – Ø30 | 8-10 | Thick Wall Pipe | 8-12 |
| Ø30 – Ø50 | 10-12 | Choose correct pitch of saw blade for perfect cutting. | |
| Ø50 – Ø70 | 12-14 | ||
| Ø70 – Ø80 | 14-16 | ||
