COMAC – SERIE 1 – Section Roller

Specifications

Description

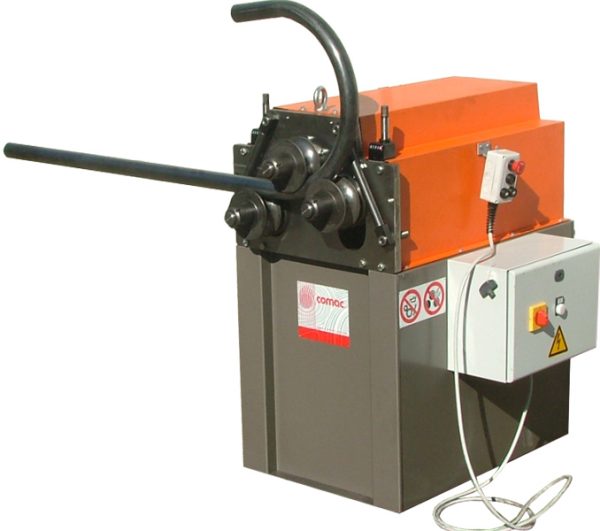

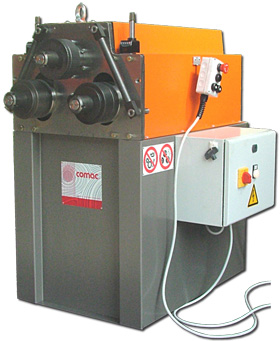

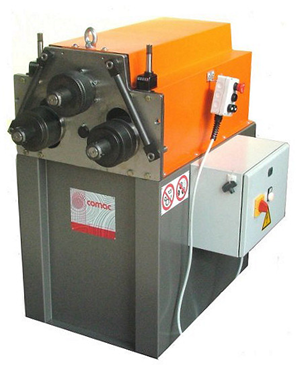

COMAC – SERIE 1 – Section Roller

The COMAC Series 1 Section Roller is a versatile machine suitable for various bending applications.

• Independent Lower Roll Adjustment
• Standard Roll Tooling
• Adjustable Lateral Guide Rolls
• Position Readouts
• Combination Horizontal/Vertical Working Position

Specifications

• Shaft Diameter (Upper/Lower): 35 mm
• Roll Diameter: 135 mm
• Power Output: 0.75 kW
• Rolling Speed: 4.2 m/min
• Weight: 185 kg

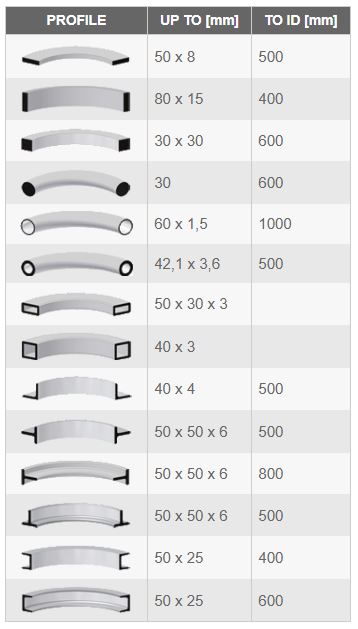

PROFILE	UP TO [mm]	TO ID [mm]
	50 x 8	500
	80 x 15	400
	30 x 30	600
	30	600
	60 x 1,5	1000
	42,1 x 3,6	500
	50 x 30 x 3
	40 x 3
	40 x 4	500
	50 x 50 x 6	500
	50 x 50 x 6	800
	50 x 50 x 6	500
	50 x 25	400
	50 x 25	600
