COMAC – SERIE 3000 – MODEL 304HV – Section and Profile Rolling Machine

Specifications

Description

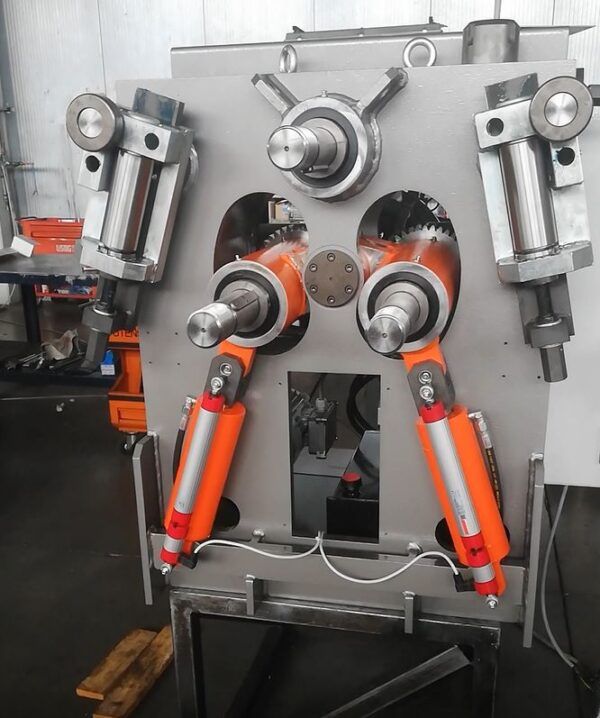

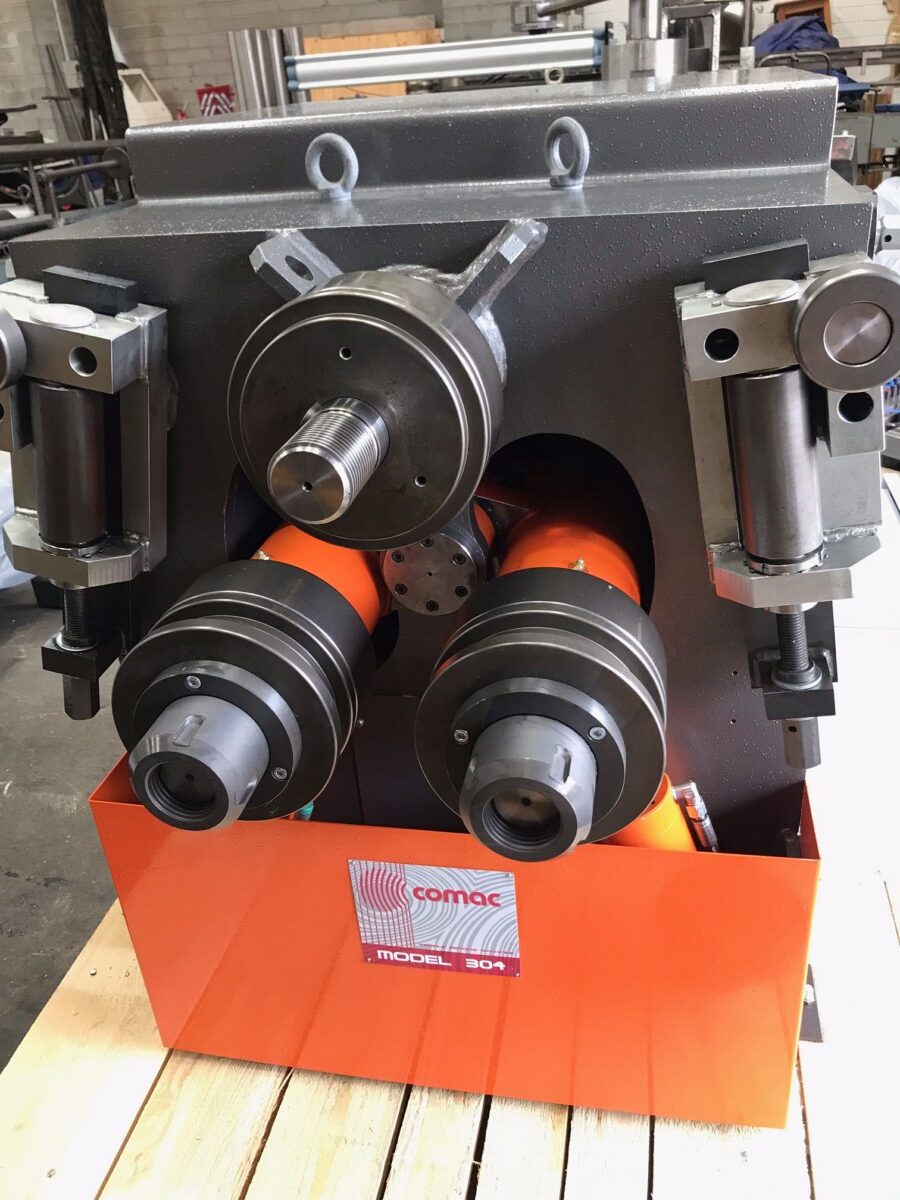

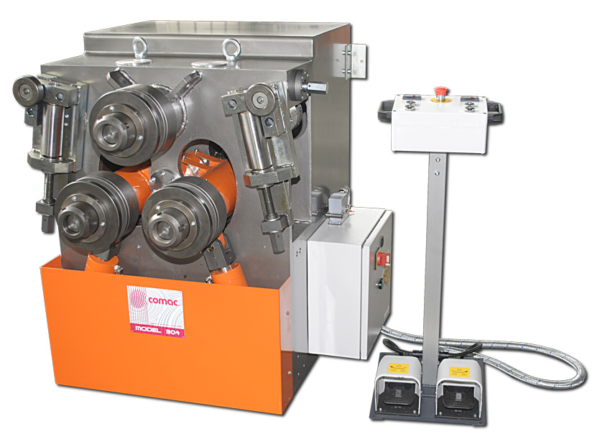

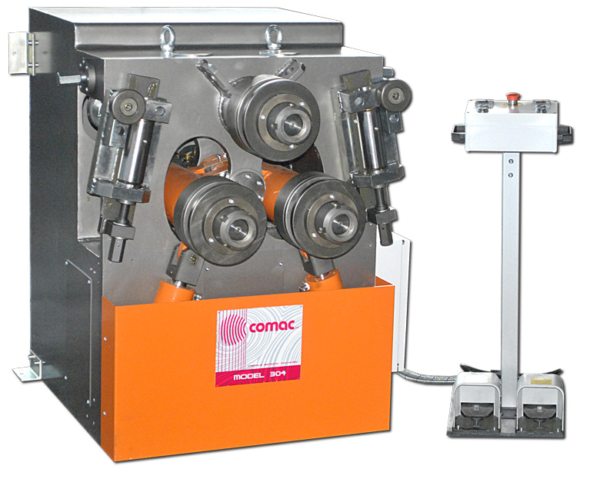

COMAC – SERIE 3000 – MODEL 304HV – Section and Profile Rolling Machine

• 3 driving rolls to guarantee maximum drive on the profile
• Bending rolls independently adjustable, for double pre-bending capability

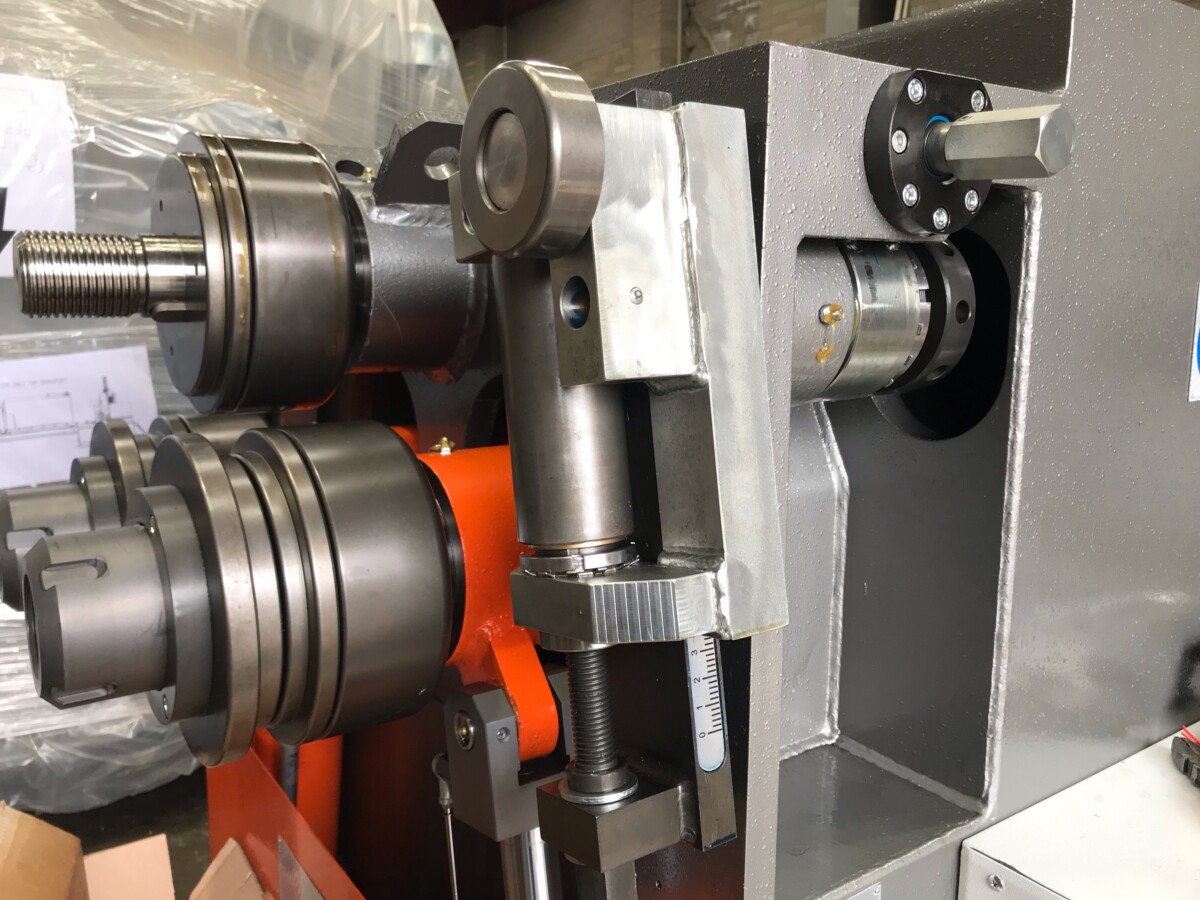

• Fully adjustable lateral guide rolls
• Machine supplied with universal rolls for Flat, angle and solid bars
• Digital read out for position of bending rolls

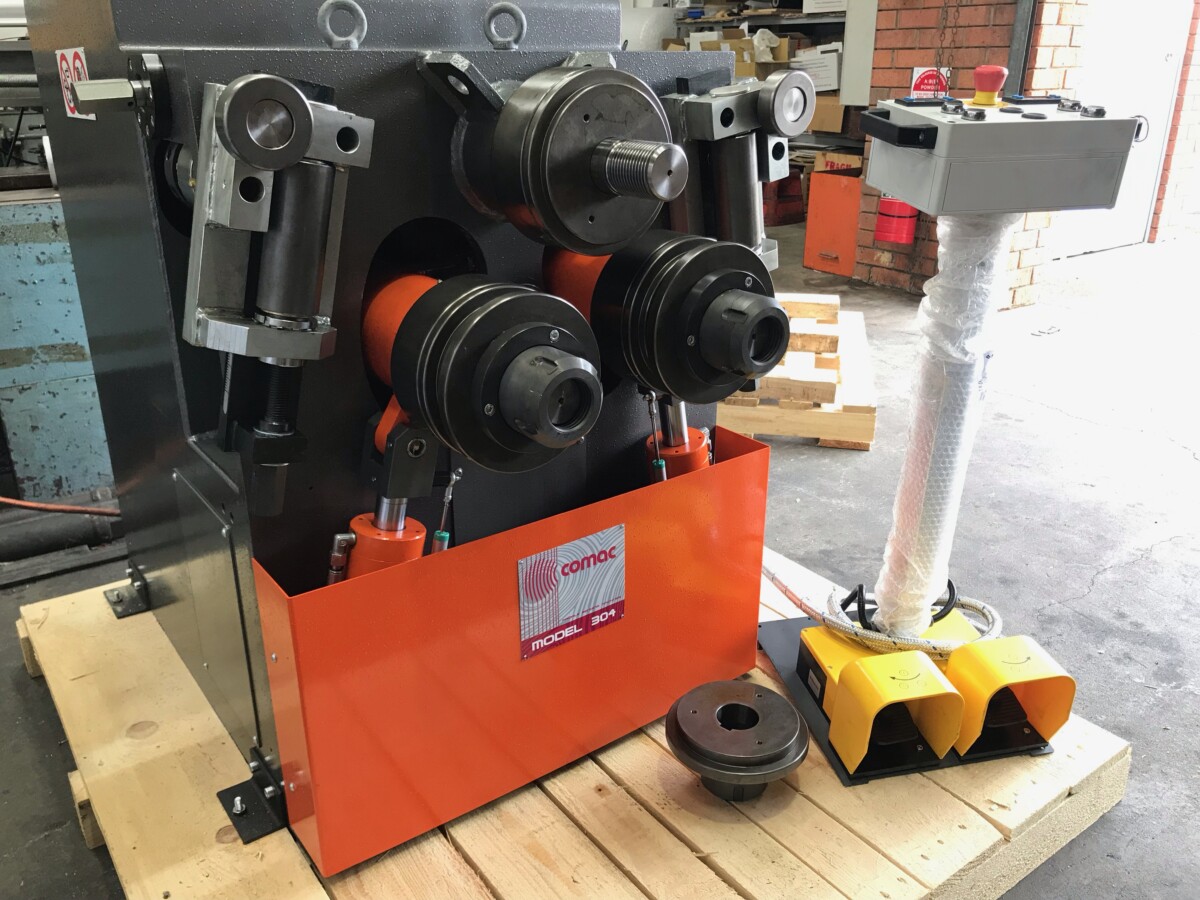

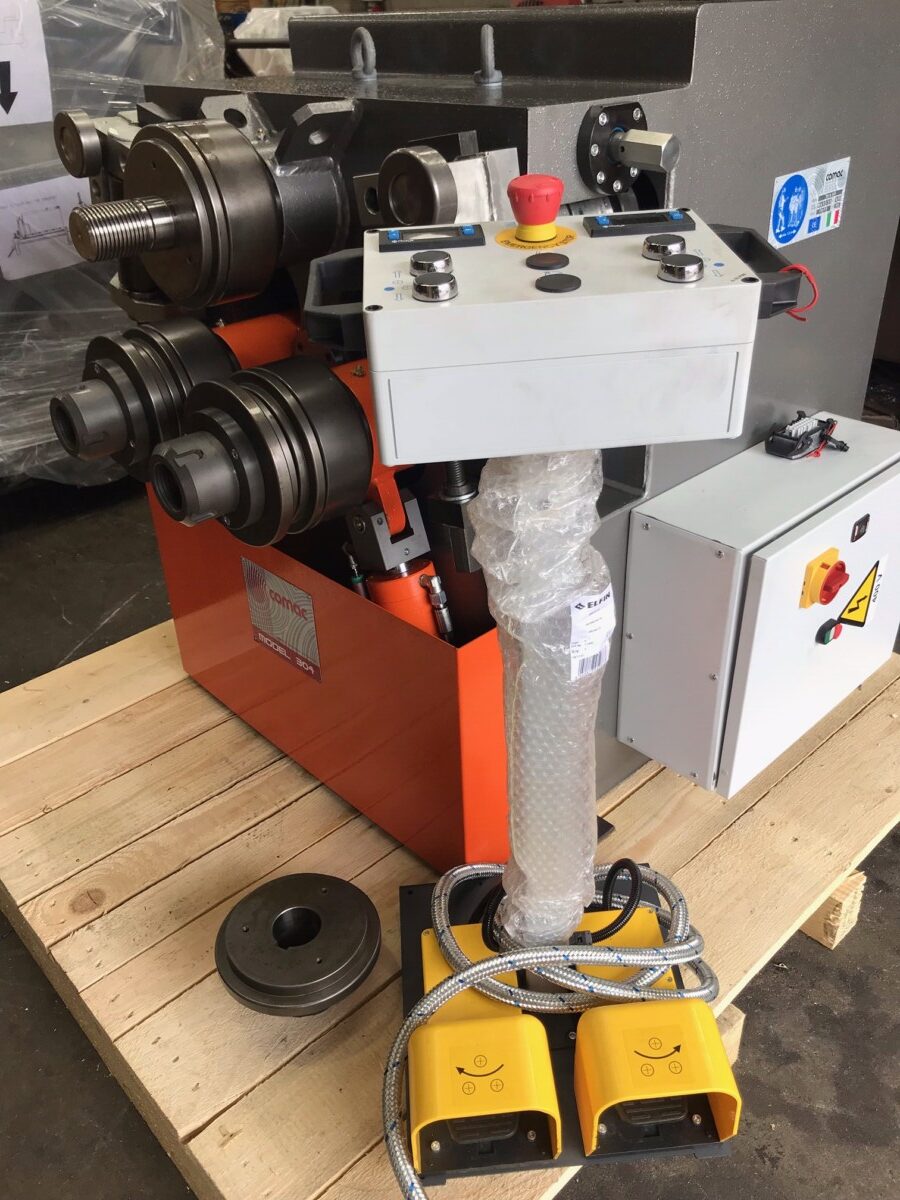

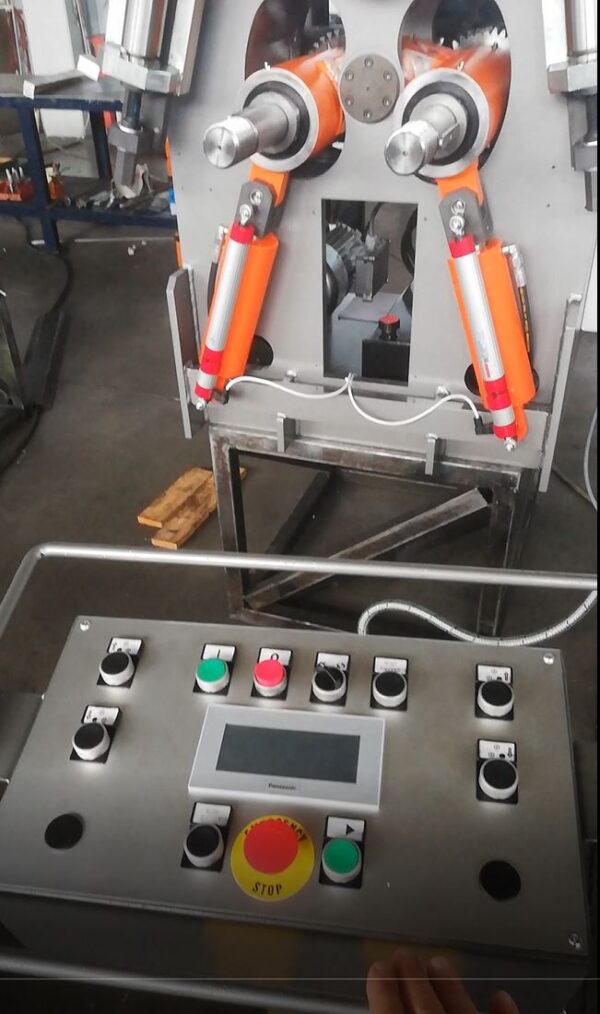

• Free-standing remote-control pedestal
• Possibility to operate machine both in vertical and horizontal position
• One-piece fabricated steel frame
• Torque limiter installed on top roll shaft
• Shaft and pinions installed on high dynamic load roller bearings
• Gears coupled on splined shafts

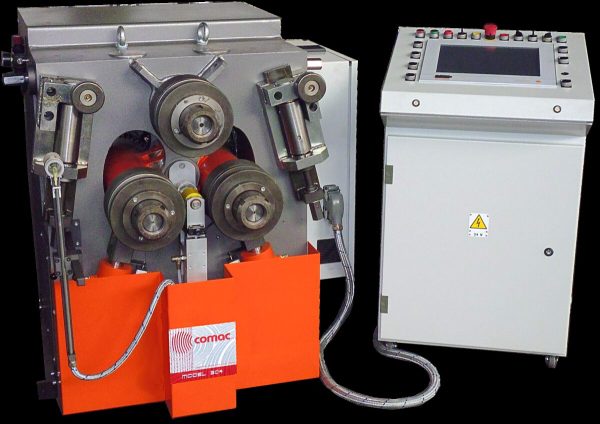

CNC model also available

• Section modulus [cm³] 10
• Diameter of shafts (Upper/Lower) [mm] 60
• Diameter of rolls [mm] 205
• Power output [kW] 3,5
• Rolling speed [m/min] 5,2
• Weight [kg] 1090

Control Options

• Standard machines are controlled using a push-button board that allows the variation of the position of the bending rolls and by a pedal that controls the advance and retreat of the profile.
• Depending on the deformation work to be performed, numerous additional controls are available, for example, the hydraulic regulation of the lateral guide rolls, the speed regulation using a potentiometer, the double speed positioning of the bending rolls, and the remote control of the special tooling.
• In case high repeatability is required or particular bending geometries must be achieved, the machines are equipped with a programmable positioner (NC), numerical controls with independent axes, and numerical controls with interpolated axes (CNC).
