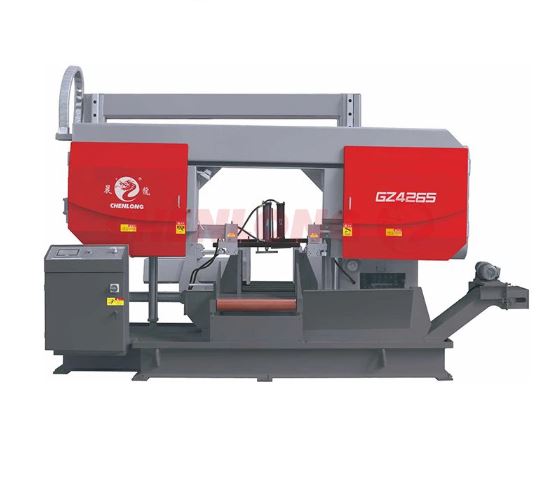

CHENLONG – GZ4265 (CH-650) – Fully Automatic Horizontal Band Saw Machine
Specifications
| Make | CHENLONG |
|---|---|
| Model | GZ4265 (CH-650) |
Description
CHENLONG – GZ4265 (CH-650) – Fully Automatic Horizontal Band Saw Machine

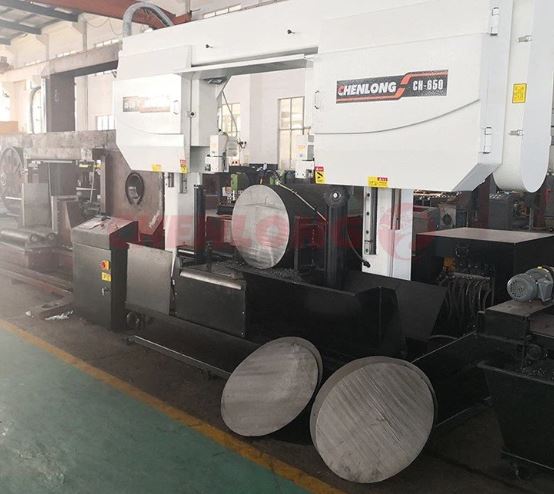

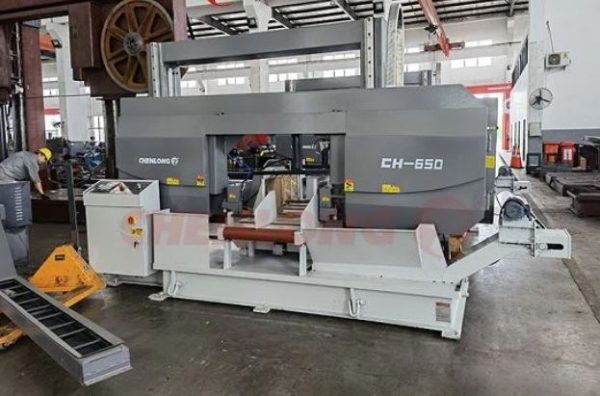

This machine GZ4265 (CH-650) is an ideal machine tool for sawing of small and medium-sized bars, tubes and profiles.

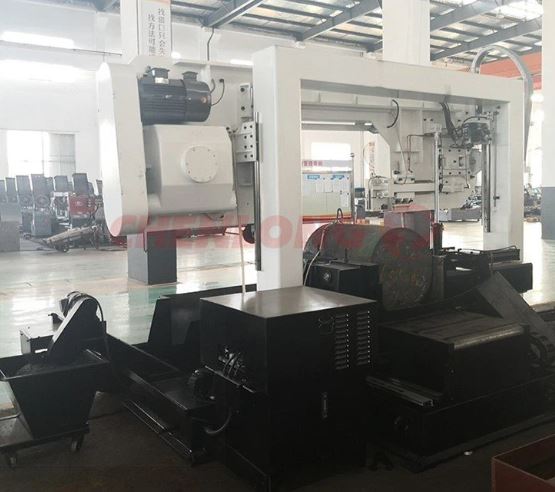

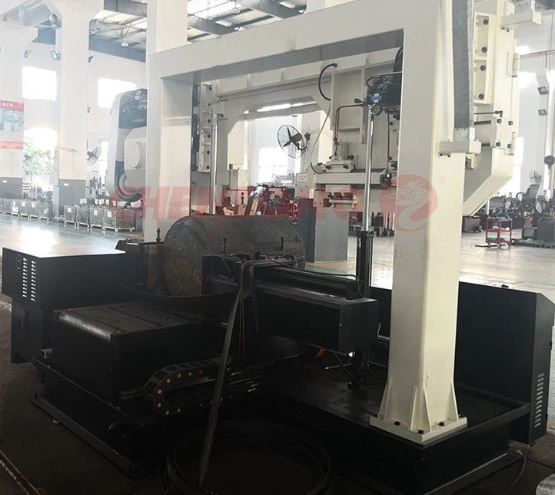

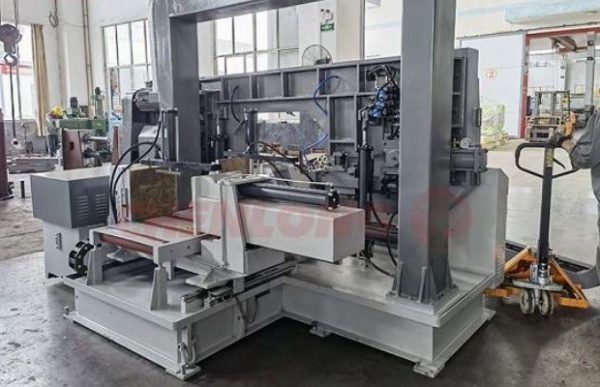

It has the features of high cutting efficiency, energy saving, narrow kerf, material saving, and simple operation. This automatic feed horizontal band saw machine adopts a gantry type double column structure to ensure the reliability, stability and advancement of the structure.
1. Automatic Feed Horizontal Band Saw Machine GZ4265 (CH-650) Is For Sawing Metal Materials With Maximum Size Of 650mm.
2. Gantry Type Double Column
3. Automatic Feeding
Specifications
| Product Name | Automatic Feed Horizontal Band Saw Machine | |
| Brand | CHENLONG | |
| Model | GZ4265 (CH-650) | |
| Maximum Cutting Size (Round) | 650mm | |
| Maximum Cutting Size (Quadrate) | 650×650mm | |
| Blade Line Speed | 20~80 m/min | |
| Blade Size | 54×1.6×7420 mm | |
| Blade Guides | Carbide And Bearing Blade Guides | |
| Blade Cleaning | Wire Brush & Flood Coolant | |
| Blade Tension | Hydraulic | |
| Motors | Main Motor | 7.5kw |
| Hydraulic Motor | 2.2kw | |
| Water pump Motor | 120w | |
| Multiple Feeding | 500mm×10Times | |
| Work Vise Control | Hydraulic | |
| Machine Size (L×W×H) mm | 2180×4000×2450 (With Chip Conveyor) 2180×3570×2450 (Without Chip Conveyor) | |
| Standard Equipment: | ||
| 1. Blade Cleaning Brush. | ||
| 2. Working Light. | ||
| 3. Roller Table 1pcs (About 1m ) | ||
| 4. One Piece Of Bi-metal Saw Blade. | ||
| 5. One Set Of Tools With Tool Box | ||
| 6. NC Control | ||
| 7. Bundle Cutting Device | ||
| 8. Inverter Control Blade Line Speed | ||
| 9. Hydraulic Blade Tension | ||
| Optional Equipment: | ||
| 1. Extra Common Roller Table | ||
| 2. Automatic Chip conveyor | ||

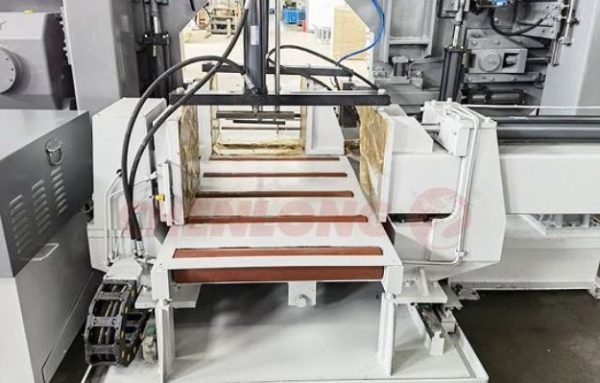

* The Clamping Of This Automatic Feed Horizontal Band Saw Machine Adopts Hydraulic Vise Clamping. The Clamping Cylinder Is A Full Stroke Cylinder
* Machine base is welded by high quality steel plate, after VSR processing, it features small welding deformation

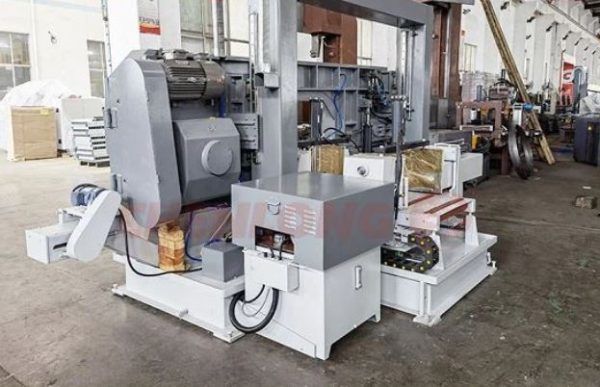

* The main drive uses a helical bevel gear reducer, having features of high transmission efficiency and long service life. The reducer and drive wheel are connected directly, which ensures very steady and shockless performance.
* The blade tension is hydraulic controlled
* Almost all actions of machine are controlled by PLC and realized by operations on the touching screen. The operator can set multiple cutting data at one time, the cutting data will be showed on the screen
* Feeding length is detected by grating. Max. single feeding stroke is 500mm. There is cushioning device at the end of feed cylinder to ensure the accuracy of repeated feed at ±0.2mm
