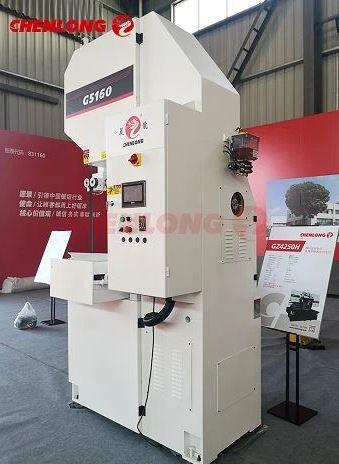

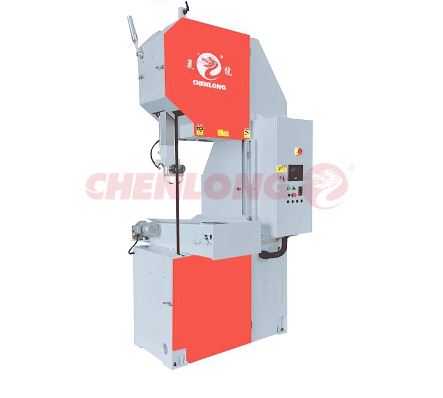

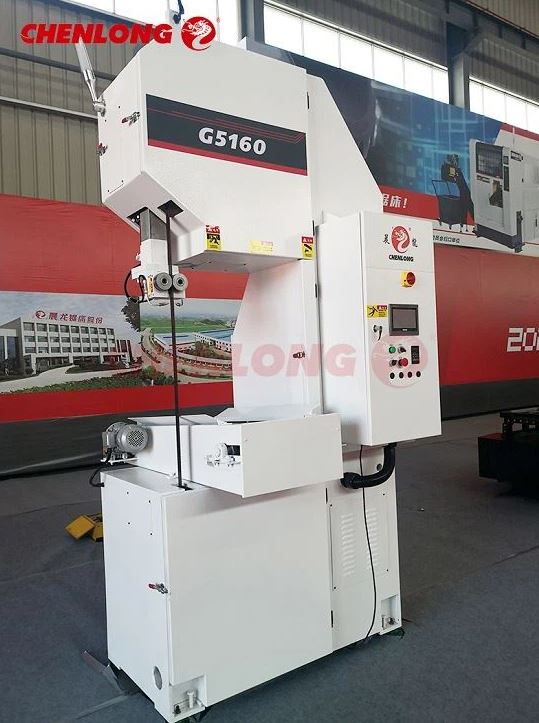

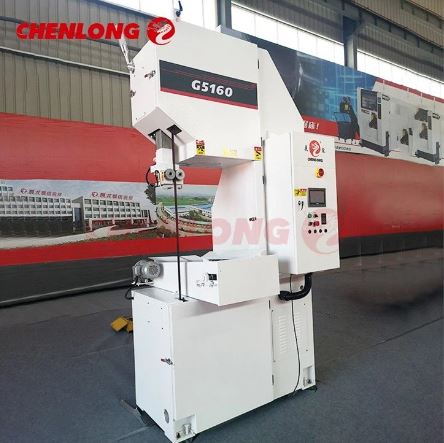

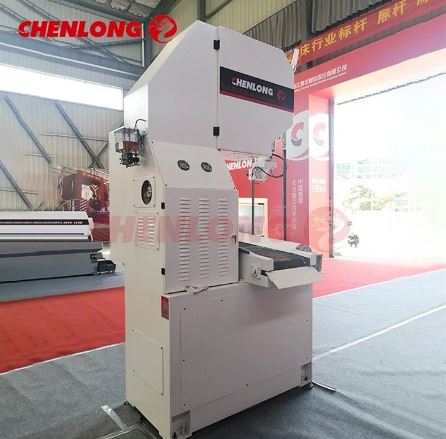

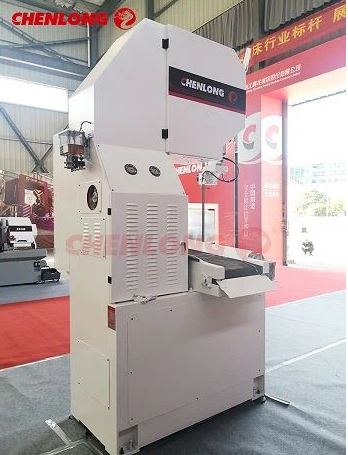

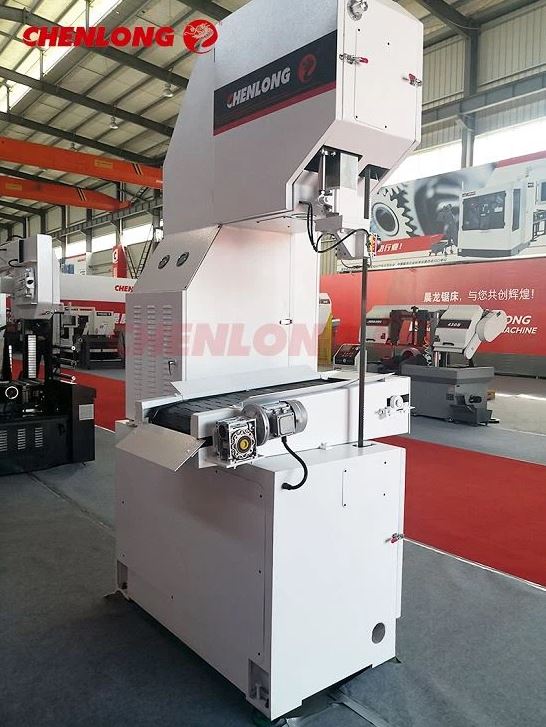

CHENLONG – G5160 – Aluminium Bar Vertical Cutting Band Saw Machine

This machine is mainly suitable for sawing the riser of aluminum parts, such as the parts used on the car.

It has the advantages of narrow sawing gap, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.

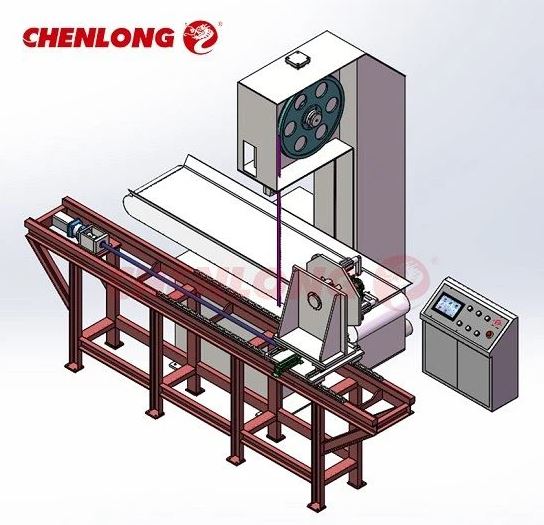

Usually, this machine is used by cooperating with manipulator mechanical arm.

1. Aluminium Cutting Band Saw Machine Is Used For Cutting Aluminum Parts.
2. Maximum Cutting Height Of 600mm
3. Maximum Cutting Width(Depth) Of 600mm

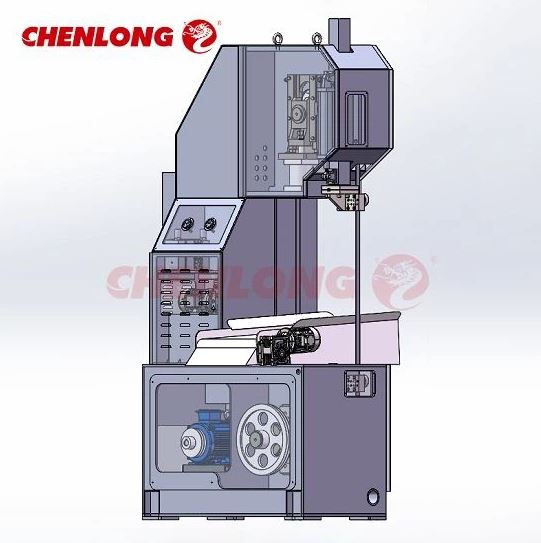

* The main motor is a frequency conversion motor, which can realise different sawing line speeds by adjusting the frequency converter, so as to meet the sawing requirements of different materials.

* The saw bBlade tension is hydraulic controlled. The tension and loosening of the saw blade are operated manually by handle of the hydraulic valve.

* The blade guiding device is divided into upper and lower guides. The upper guide arm is movable. The movements of the upper guide arm can be adjusted by the hydraulic cylinder. It is convenient to change the sawing height according to the workpiece height and ensure the sawing accuracy.

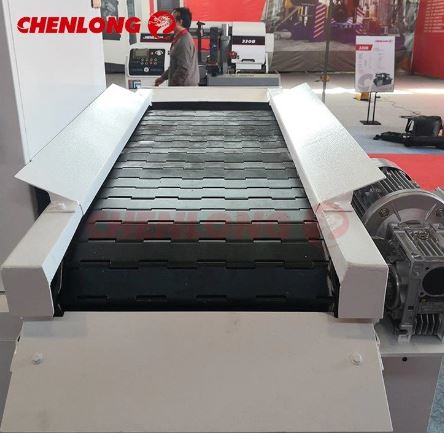

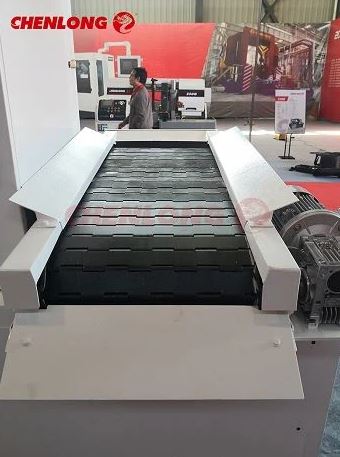

* The aluminium cutting band saw machine is designed with a plate chain conveying device, which is installed aAbove the table of the saw frame. The conveying device can be forward and reversed. The rorward rotation is used to transport the scrap that fell from Sawing, and the scrap is transported to the receiving trolley.
