CHENLONG – CH-400 – Semi-Automatic Band Saw Machine
Specifications
| Make | CHENLONG |
|---|---|
| Model | CH-400 |
Description

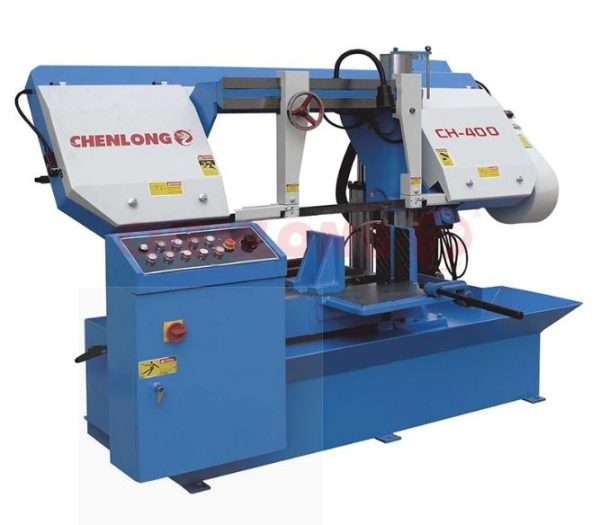

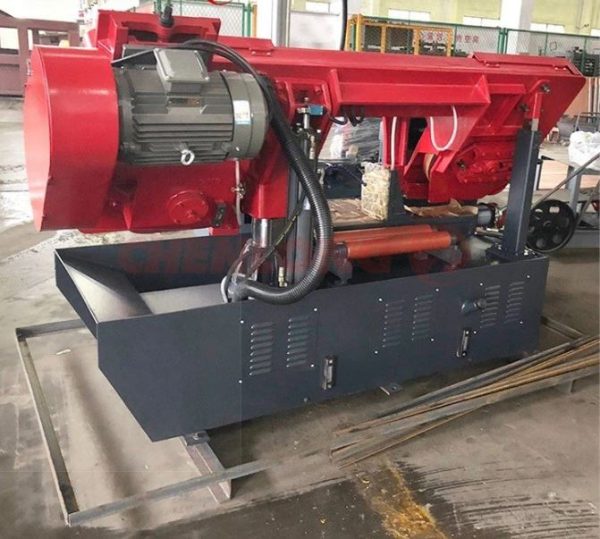

CHENLONG – CH-400 – Semi-Automatic Band Saw Machine
Semi automatic band saw machine CH-400 adopts a double-column structure to ensure the reliability, stability and advancement of the structure. The functions of each part have margins, and at the same time, it also ensures high-quality sawing accuracy.

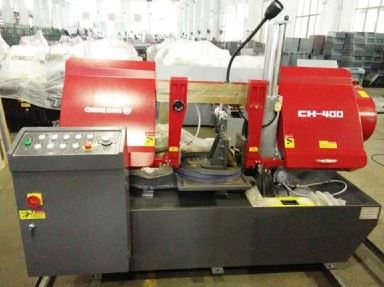

- Semi Automatic Band Saw Machine Is Operated By Buttons On The Operation Panel.

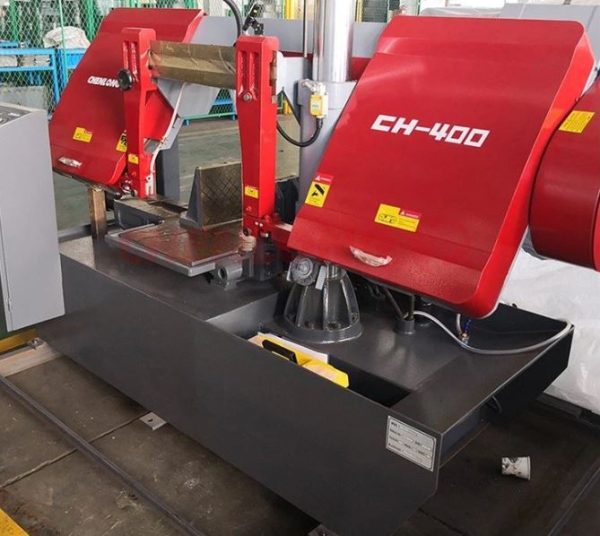

- Double Column Band Saw
- Cutting Sizes Of Diameter 400mm And 400×500mm In Rectangular
Specifications
| Product Name | Semi Automatic Band Saw Machine | |
| Brand | CHENLONG | |
| Model | CH-400 | |
| Maximum Cutting Size (Round) | 400mm | |
| Maximum Cutting Size (Quadrate) | 400×500mm | |
| Blade Line Speed | 19/30/50/65/90 m/min | |
| Blade Size | 34×1.1×4650 mm | |
| Blade Guides | Carbide And Bearing Blade Guides | |

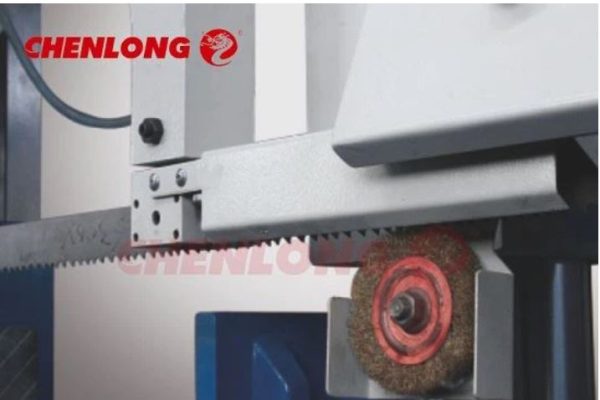

| Blade Cleaning | Wire Brush & Flood Coolant | |
| Blade Tension | Manual | |
| Motors | Main Motor | 4kw |
| Hydraulic Motor | 0.75kw | |
| Water pump Motor | 60w | |
| Work Vise Control | Hydraulic | |
| Machine Size(L×W×H)mm | 2350×1250×1700 | |
| Standard Equipment: | ||
| 1. Blade Cleaning Brush. | ||
| 2. Working Light. | ||

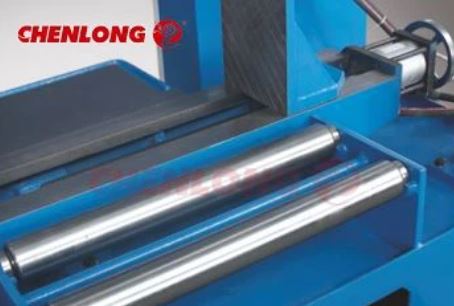

| 3. Roller Table 1pc(about 80cm) | ||
| 4. One Piece Of Bi-metal Saw Blade. | ||
| 5. One Set Of Tools With Tool Box | ||
| Optional Equipment: | ||
| 1. Extra Common Roller Table | ||
| 2. Automatic Chip Conveyor | ||
| 3. Inverter | ||
| 4. Laser Projector | ||
| 5. Hydraulic Blade Tension | ||

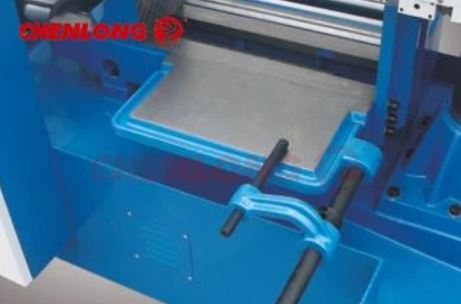

* The clamping of the semi automatic band saw machine adopts hydraulic screw control. One set of clamping vises is designed behind the saw blade. Use the hand wheel to move the movable vise 20mm away from the workpiece, and then the movable vise could be driven by the hydraulic clamping cylinder to clamp the workpiece.

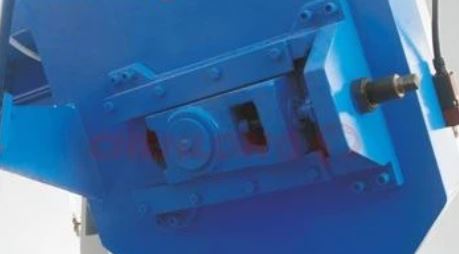

* Saw Blade Tensioning Device: The tensioning wheel is installed on the left of the saw frame. After the band saw blade is installed in the driving wheel and the tensioning wheel, the saw blade is tensioned or loosened by rotating the torque wrench. The tension force of the saw blade is set by the torque wrench.
* There is a length stopper in front of the working table. In case cutting the same length for many pieces, it is convenient for the operator to only measure the cutting length for the first time.
