CHENLONG – 430B – Fully Automatic Band Saw Machine
Specifications
| Make | CHENLONG |
|---|---|
| Model | Model 430B |
Description

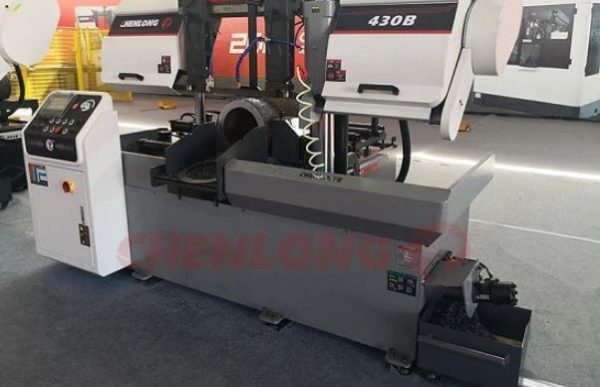

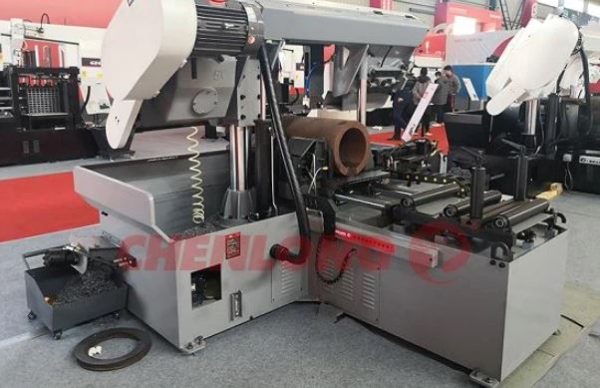

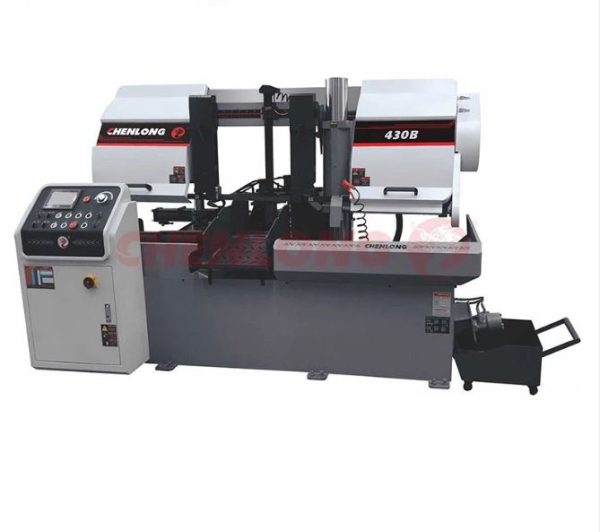

CHENLONG – 430B – Fully Automatic Band Saw Machine
This band saw machine is mainly used for sawing of small and medium-sized bars, tubes and plates. It adopts double column structure to ensure structural reliability and stability. It has advantages of high cutting efficiency, narrow sawing gap, energy saving and material saving, simple operation, high quality sawing accuracy.
1. Cnc Horizontal Band Saw Machine Is With High Efficiency.

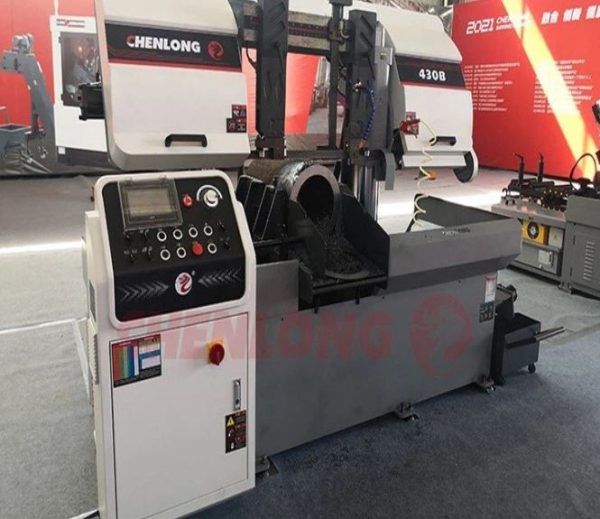

2. Touching Screen And Buttons Two Systems Control
3. Inverter Control Blade Line Speed
Specifications
| Product Name | Cnc Horizontal Band Saw Machine | |
| Brand | CHENLONG | |
| Model | 430B | |
| Maximum Cutting Size (Round) | 430mm | |
| Maximum Cutting Size (Quadrate) | 430×430mm | |
| Blade Line Speed | 18~80 m/min | |
| Blade Size | 41×1.3×5080 mm | |
| Blade Guides | Carbide And Bearing Blade Guides | |
| Blade Cleaning | Wire Brush & Flood Coolant | |
| Blade Tension | Hydraulic | |
| Motors | Main Motor | 7.5kw |
| Hydraulic Motor | 1.5kw | |
| Water Pump Motor | 120/135w | |

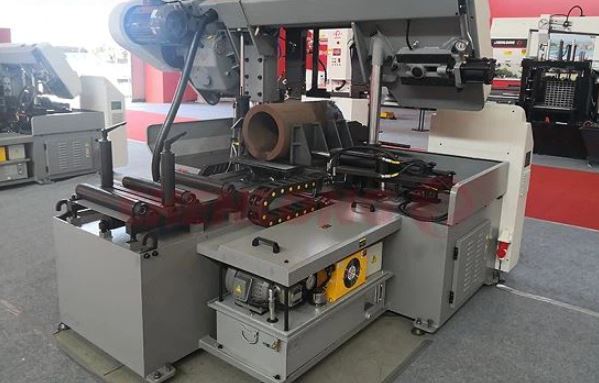

| Multiple Feeding | 500mm×10Times | |

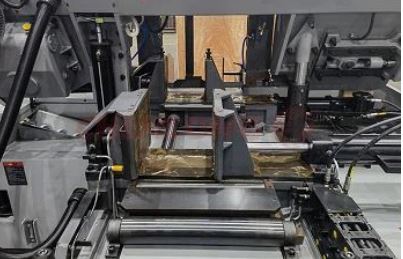

| Work Vise Control | Hydraulic | |
| Machine Size(L×W×H) | 2750×2410×1710 | |
| Standard Equipment: | ||
| 1. Blade Cleaning Brush. | ||
| 2. Working Light. | ||
| 3. Roller Table 1pcs (About 60cm ) | ||
| 4. One Piece Of Bi-metal Saw Blade. | ||
| 5. One Set Of Tools With Tool Box | ||
| 6. NC Control | ||

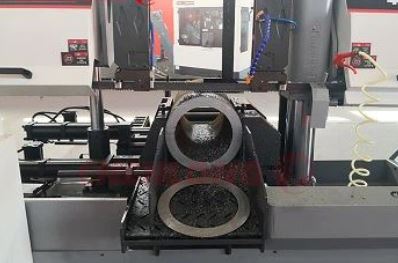

| 7. Bundle Cutting Device | ||
| 8. Inverter Control Blade Line Speed | ||
| 9. Hydraulic Blade Tension | ||
| 10. Automatic Chip conveyor | ||
| Optional Equipment: | ||
| 1. Extra Common Roller Table | ||
* The power of the main motor of this Cnc horizontal band saw machine is 7.5kw, which is larger than that of ordinary machine tools, with strong sawing and high sawing efficiency. The main drive worm gear box has large space, good heat dissipation, high transmission efficiency and low transmission noise. The speed of the driving wheel can be adjusted by the frequency converter to obtain a cutting speed of 18-80m/min to meet the sawing of different materials.

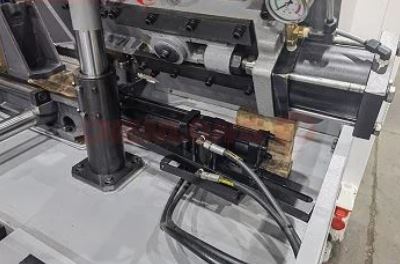

* The guide of this machine tool is divided into movable guide arm and fixed guide arm. The movement and locking of the movable guide arm adopts manual control. The top of the guide seat adopts high-quality bearings, the sides are carbide guiding blocks. There is a pre-guide device to ensure the stability of the guide and prolong the service life of the saw blade. A fast-approaching device is installed on the guide dovetail to shorten the waiting time of customers for sawing. An active chip removal device is installed at the fixed guide head to clean the chips on the saw blade and prolong the service life of the saw blade.
