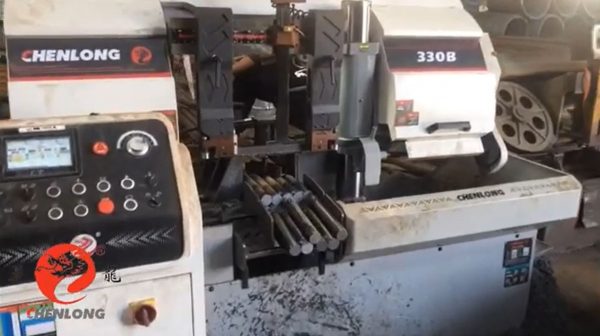

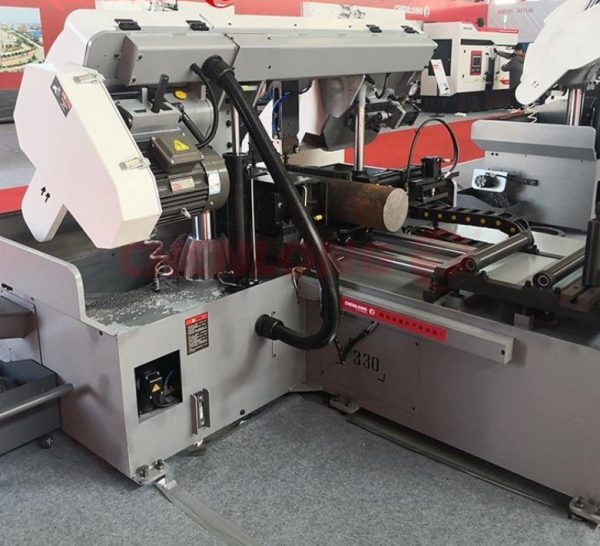

CHENLONG – 330B – Fully Automatic Band Saw Machine

Specifications

Description

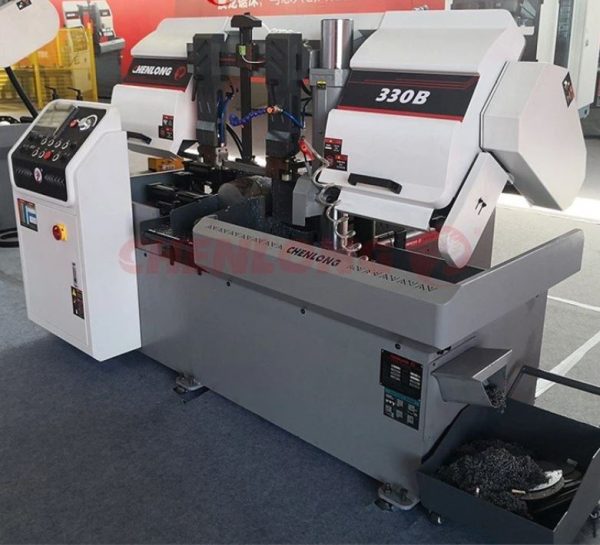

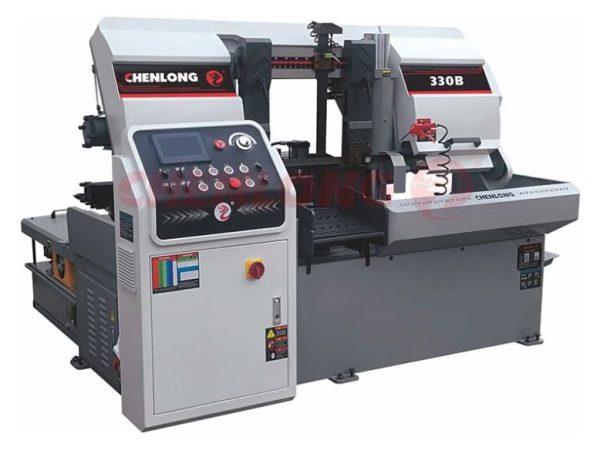

CHENLONG – 330B – Fully Automatic Band Saw Machine

• Fully Automatic Band Saw Machine Is Good At Mass Cutting
• PLC+Touching Screen Control
• 5 Different Sets Of Cutting Data Could Be Setup

Specifications

• Fully Automatic Band Saw Machine
• Maximum Cutting Size (Round): 330mm
• Maximum Cutting Size (Quadrate): 330×330mm
• Blade Line Speed: 20~80 m/min
• Blade Size: 34×1.1×4115 mm

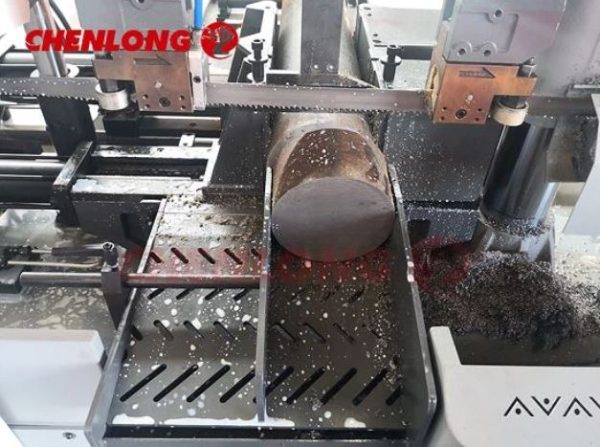

• Blade Guides: Carbide And Bearing Blade Guides
• Blade Cleaning: Wire Brush & Flood Coolant
• Blade Tension: Hydraulic
• Multiple Feeding: 500mm×10Times
• Work Vise Control: Hydraulic
• Machine Size (L×W×H): 2350×2220×1500

Motors

• Main Motor: 4kw
• Hydraulic Motor: 0.75kw
• Water Pump Motor: 120/135w

Standard Equipment:

• Blade Cleaning Brush
• Working Light
• Roller Table 1pcs (About 60cm)
• One Piece Of Bi-metal Saw Blade
• One Set Of Tools With Tool Box
• NC Control

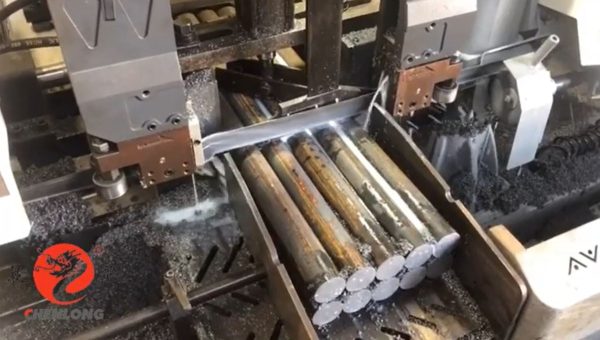

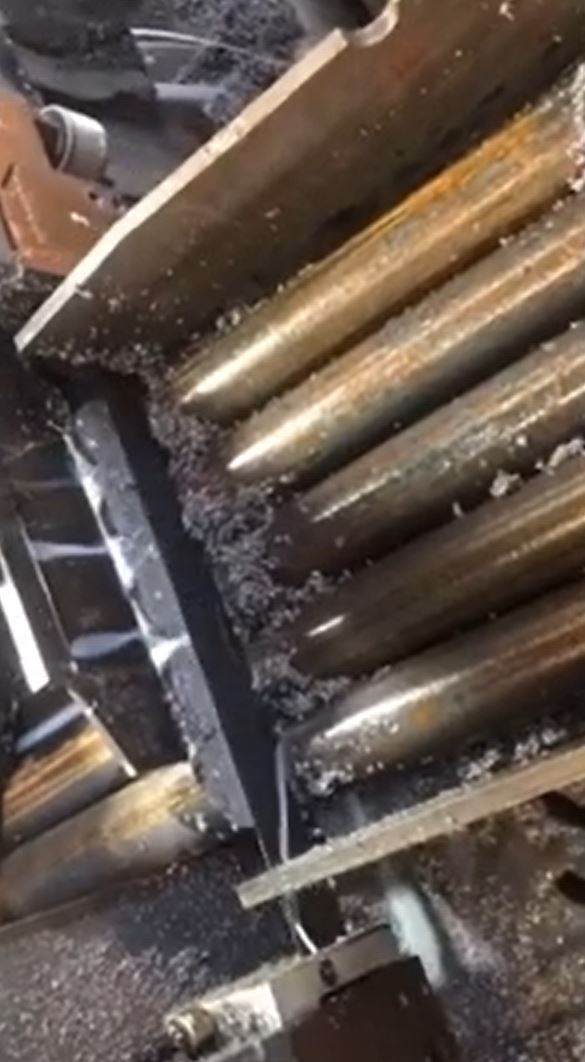

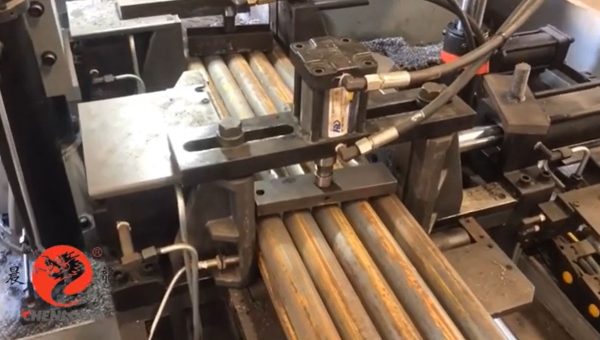

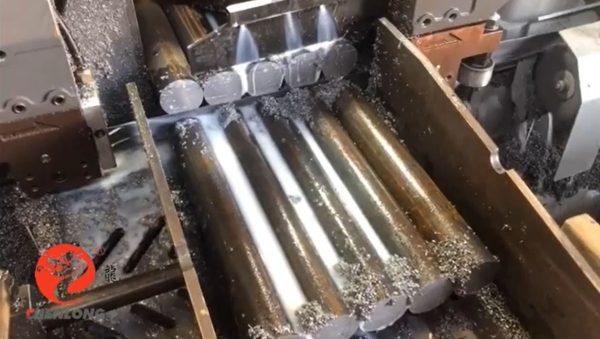

• Bundle Cutting Device
• Inverter Control Blade Line Speed
• Hydraulic Blade Tension
• Automatic Chip conveyor

Optional Equipment:

• Extra Common Roller Table

Machine Information:

Fully Automatic Band Saw Machine 330B Is Upgraded From Classic 300mm Automatic Band Saw.
This Model Has Advantages Of:

• Sawing Speed 50% Increased, Saw Blade Life 50% Longer
• Machining Accuracy 50% Increased, Equipment Service Life 50% Prolonged
• Intelligent Welding: This Machine Adopts Robot Welding To Ensure Stability, Uniformity And Consistency
• Special Processing: Micron-level Precision CNC Multi-faceded Processing At One Time, Shot Blasting, Corrosion-resistant And Wear-resistant Coating Ensure The Parts Of Machine To Have High Precision, Durability And Reliability
• Precision Assembly: 35 Years Of Technical Precipitation And Process Assembly, It Efficiently Ensures The Stable Operation Of The Machine

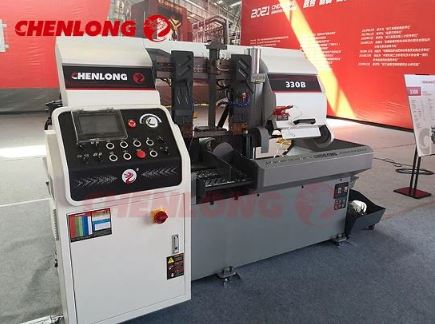

• Two Control Ways: This Fully Automatic Band Saw Machine Has Both Touching Screen And Buttons To Control The Sawing Process

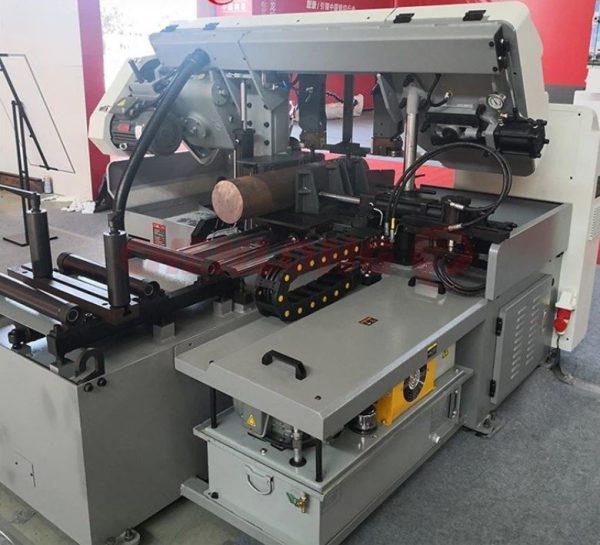

• Workpiece Feeding Is Controlled By Hydraulic Cylinder. Feeding Length And Feeding Times Could Be Indicated And Setup On The Touching Screen. It Is Ideal Equipment For Batch Cutting
