Delahenty Machinery is proud to support the evolution of innovation in the Australian motorsport scene, particularly with our partnership with Triple Eight Race Engineering, branded as Red Bull Ampol Racing in the Supercars Championship. The Brisbane-based V8 Supercar team, Triple Eight has been at the forefront of motorsport excellence, accumulating over 250 race victories since 2003.

Beyond the Track

Triple Eight Race Engineering’s capabilities extend well beyond racing. Their commitment to in-house design and manufacturing ensures that every stage of production – from initial concept to final product – is handled by a dedicated team of engineers and designers. With state-of-the-art technology and software, they create designs that not only excel on the racetrack but also set new standards across various industries.

Opened in 2021, the Advanced Manufacturing facility at Triple Eight Race Engineering is designed to create bespoke engineering components tailored to a wide array of industries. With specialised equipment and a commitment to world-class engineering design, analysis, and manufacturing techniques, Triple Eight are poised to push the boundaries of what is possible in motorsport and other industries.

New Acquisition: CNC Tube Mandrel Bending Machine

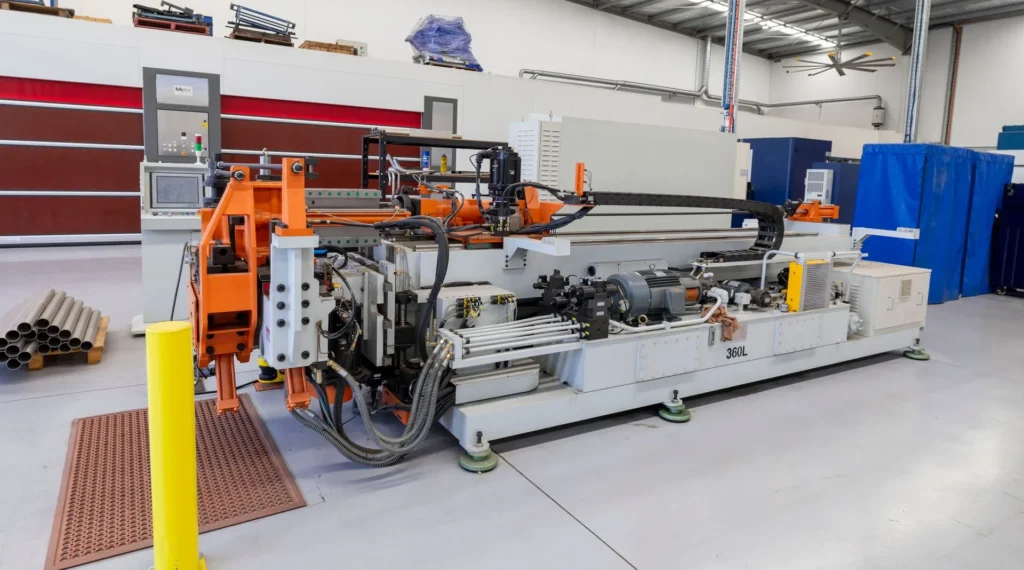

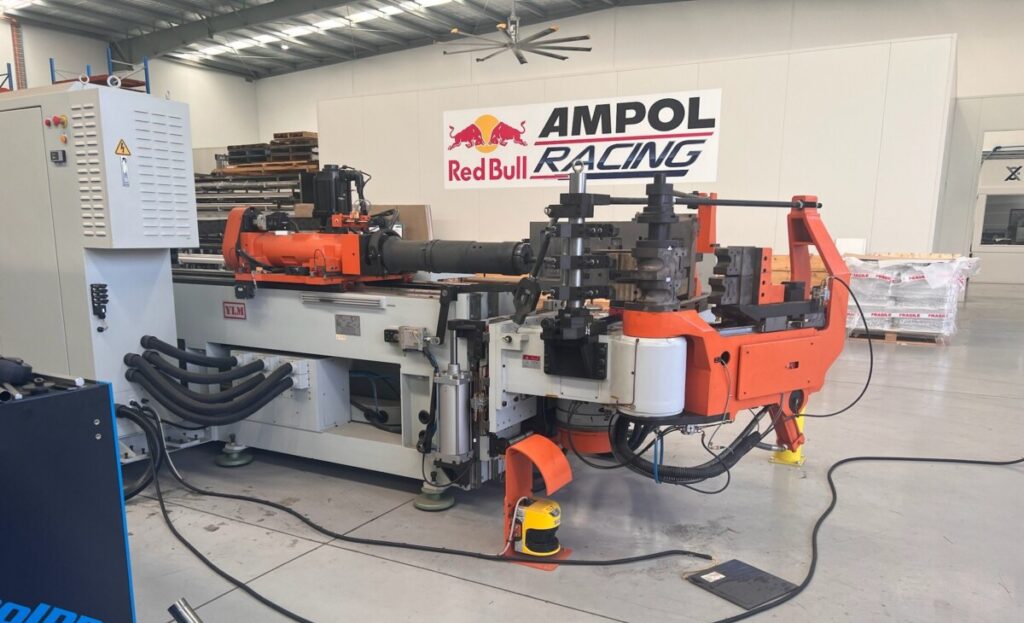

In their quest for continuous improvement, Triple Eight has recently acquired a YLM CNC Hybrid Tube Bending Machine model CNC-80MS-5A. This addition enhances their manufacturing capabilities, allowing them to produce high-quality components for diverse applications.

Delahenty Machinery’s relationship with Triple Eight introduces the YLM CNC Hybrid Tube Bending Machine to their operations. This machine is designed for businesses seeking an economical and efficient entry into CNC tube bending, offering capacities from 1-1/2” to 5”.

Key Features:

Precision Control: The machine employs hydraulic valves and integrated circuits for precise control over bending motions, enhancing the service life of hydraulic components.
Customizable Speed Regulation: A manually adjusted digital flow regulation valve allows for tailored bending speeds.
High Accuracy: The servo drive ensures accurate positioning for superior bending quality.

Technical Specifications:

Max Tube O.D. Bending Capacity (Mild Steel CLR1.5D): 76.2 × 2.8 mm
Range of CLR: 250 mm
Max Bending Radius Difference: 90 mm
Max Bending Angle: 190°
Mandrel Working Distance: 3000 mm
Manufacturing Speed:
- Max Tube Feeding Speed: 753 mm/sec
- Tube Rotation Speed: 180 mm/sec
- Max Tube Bending Speed: 83 mm/sec
Repeatability:
- Tube Feeding Precision: ± 0.1 mm
- Tube Rotation Precision: ± 0.1 mm
Tube Bending Precision: ± 0.1 mm

Partner with Us

At Delahenty Machinery, we are excited to collaborate with Triple Eight Race Engineering as they continue to innovate and excel in both motorsport and engineering. If you’re looking for high-performance machinery and tailored manufacturing solutions, we invite you to explore how we can support your project from concept to completion.
